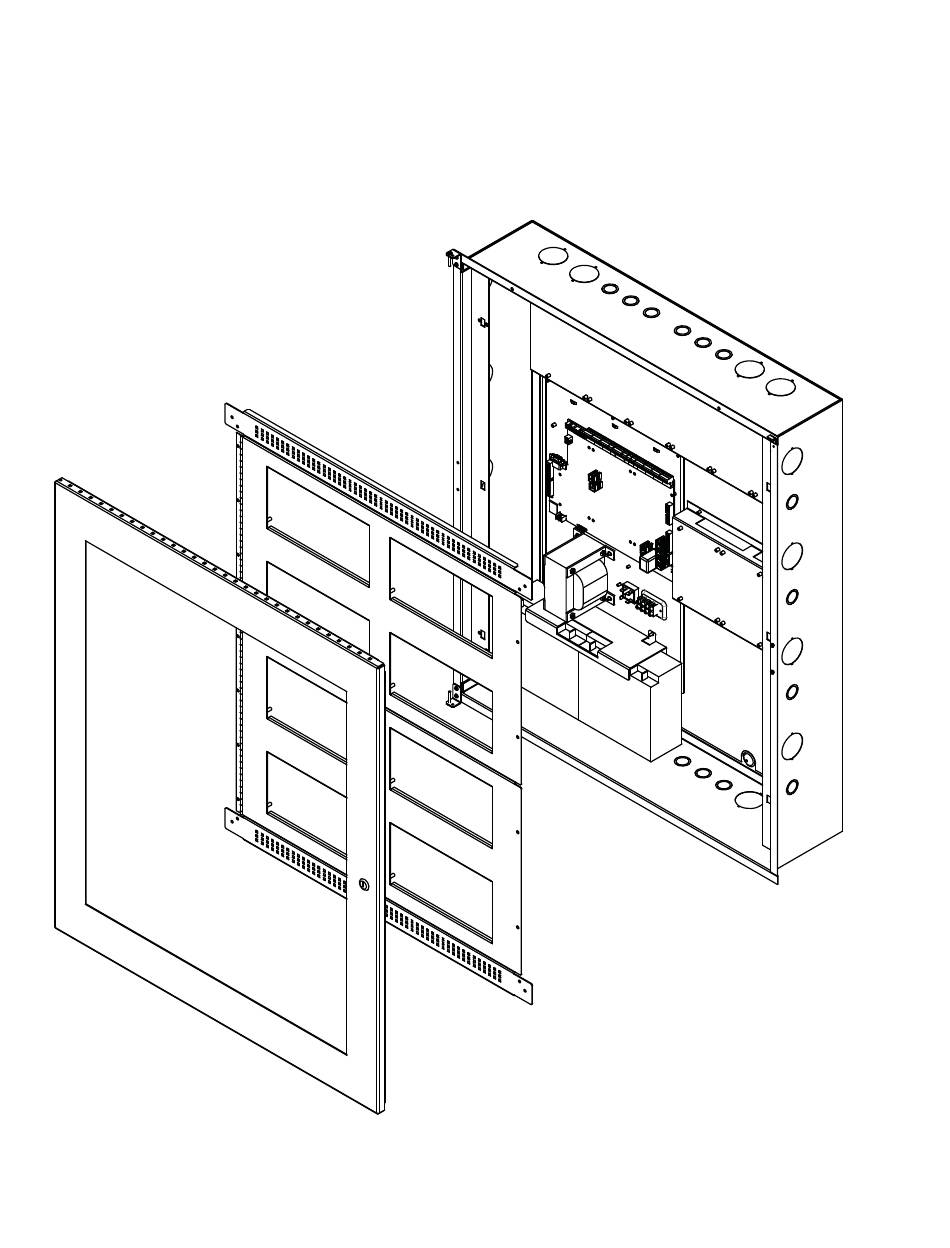

BBX-1024XT(R) Mechanical Installation
General Chassis I nstallation
1. Group the incoming wires through the top of the enclosure to prepare it for wiring the modules. Do not run the
wires in-between the modules since it could cause a short circuit.
2. Use a wire tie to group wires for easy identification and neatness.
3. Be sure to connect a solid earth ground (from building system ground / to a cold water pipe) to the chassis
earth ground mounting lug, and to connect the earth ground wire lugs from the main chassis to the ground
screw on the backbox.
