Field Wiring
FOM-2000-UM Fiber Optic Netw ork Adder Module
The FOM-2000-UM Fiber Optic Network Adder Module is wired with fiber optic cable. It is wired OUT through the
transmit connectors marked TX and IN through the receive connectors marked RX.

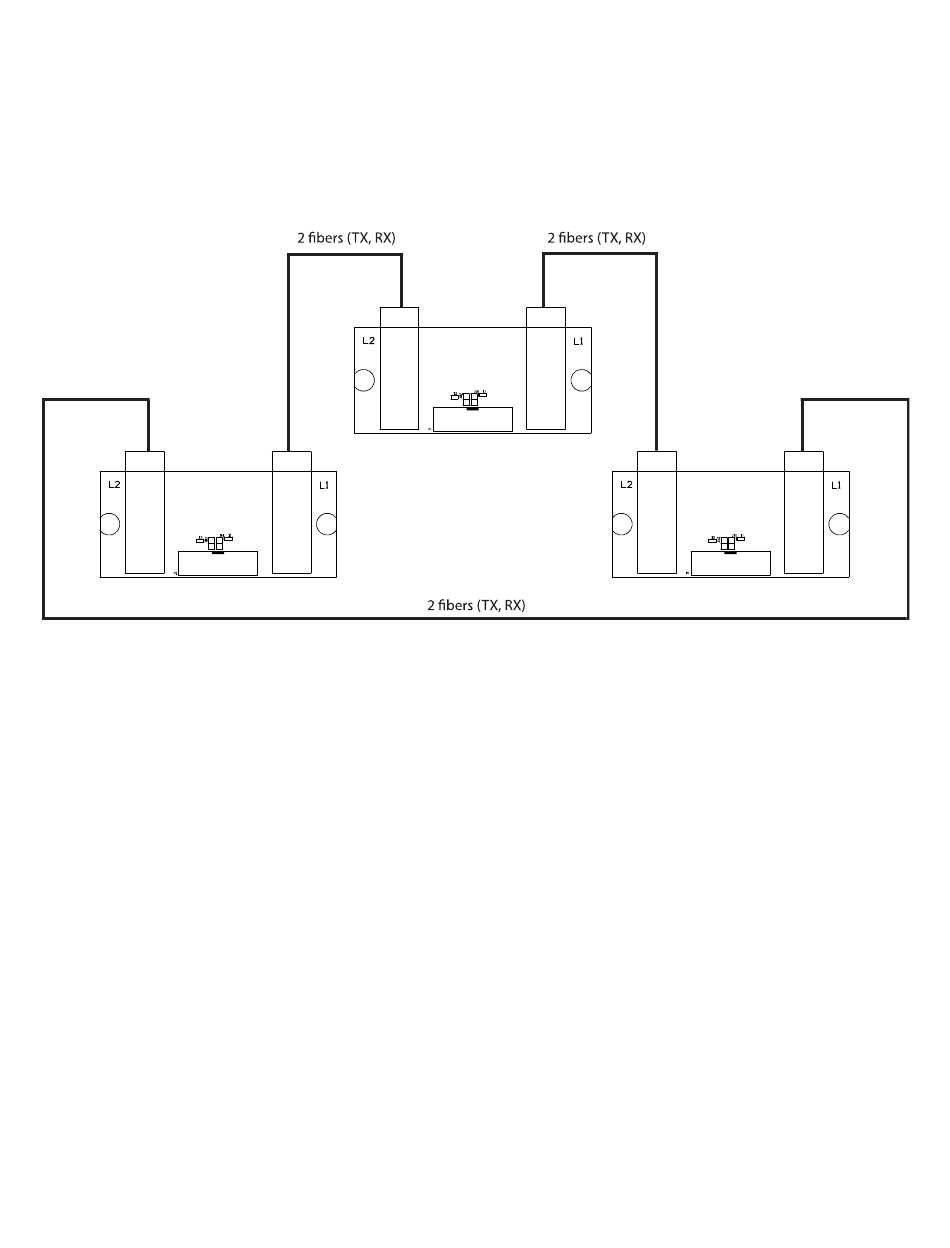

Figure 36: FOM-2000-UM Fiber Optic Netw ork Adder Module Wiring
CLASS A WIRING
B
A
Node 1
B
A
B
A
Node 2
Node 3
52
