The SmartLoop programming interface

11.1

The SmartLeague software application user interface

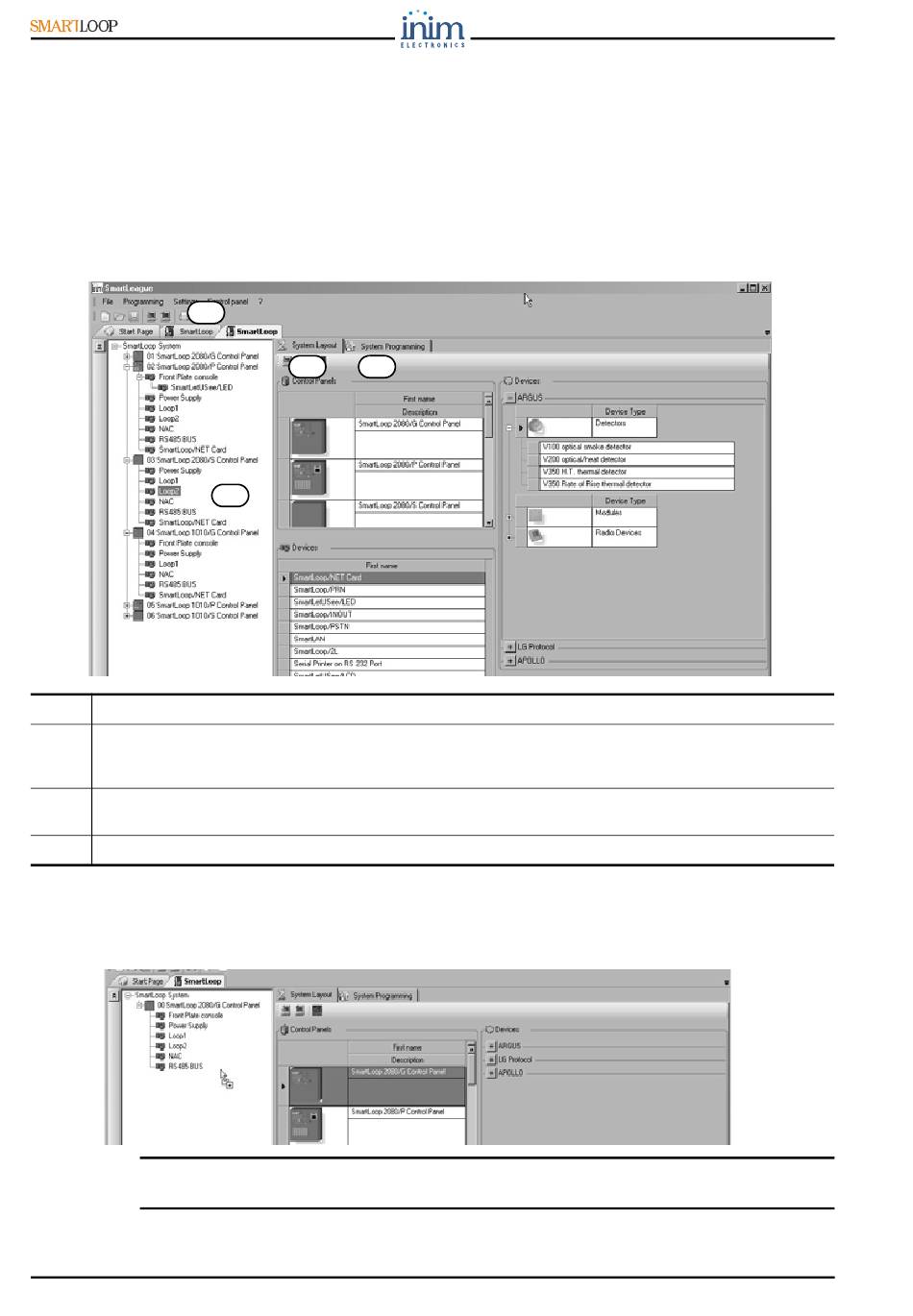

When a SmartLeague solution opens, the following interface appears:
1
[1] The open solution appears (other open solutions and the Start page will be put in the background).
[2] Tree-structure layout (represented by a network of control panels with on-board and optional
hardware modules). The system can be built by dragging the components from the System Layout
page and dropping them onto the respective section.
[3] The System Layout page (allows the installer to select the system components: type of control panel,
peripheral devices, modulesand drag and drop them onto the control panel structure).
[4] System Programming page (allows the installer to program the selected component).
11.2

Configuring the system

1. From the Control panel section, drag the control panels and drop them to the network structure.
The system will add a control panel and standard components to the tree structure for each
control panel comprised in the network. Expand the system structure to verify:
Note:
Consoles (keypads and displays) are not present on SmartLoop2080/S and SmartLoop1010/S
models.
2. From the configuration section, select the control panel you intend to configure.
30
4
3
2
Programming Manual
Chapter 11
The SmartLoop programming interface
