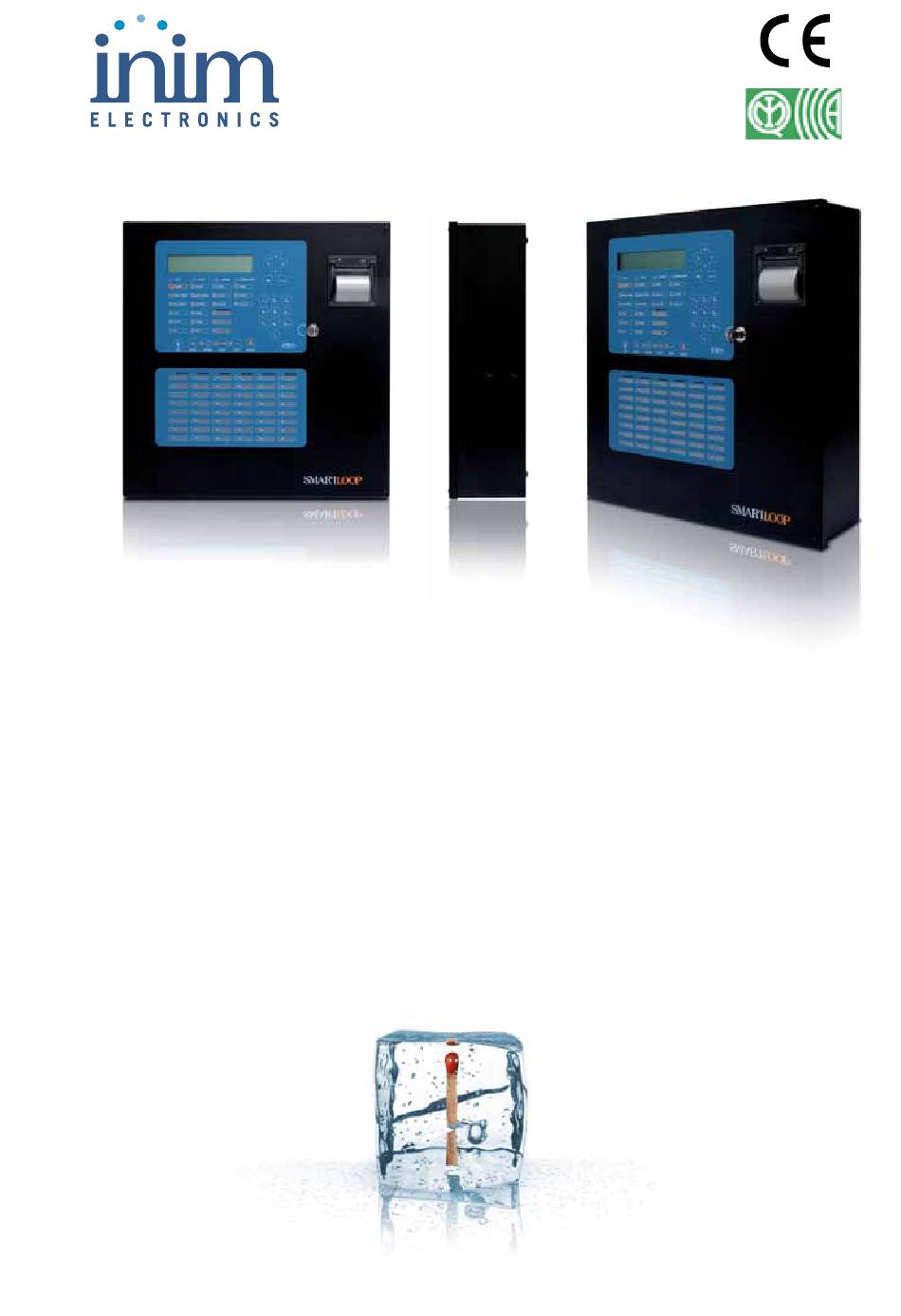

- Page 1 SmartLoop Analogue Fire Alarm Control Panel User's Manual GameOver...
- Page 2 User Manual Copyright The information contained in this document is the sole property of Inim Electronics s.r.l. No part may be copied without written authorization from Inim Electronics s.r.l. All rights reserved. This Control panel has been designed and developed to the highest standards of quality and performance implemented by Inim Electronics.
-
Page 3: Table Of Contents
User Manual Table of contents Chapter 1 Description of the Control panel 4.......... 4 Manufacturer's name and address 4 Device identifier 4 Documentation supplied 4 Manual details 4 Control panel user interface (Keypad and LEDs) 5 Chapter 2 Using the Control Panel 8 ............. 8 Note to Security Personnel 8 Danger signaling 8 Fault signaling 9... -
Page 4: Description Of The Control Panel 4
Documentation supplied • User's Manual (this manual) • Installation Manual • Programming Manual Manual details Title: SmartLoop User's Manual • Edition, Issue: 1.01 • Month and Year of printing: April 2007 • User Manual Cod: DCMUINE0SLOOP Description of the Control panel... -
Page 5: Control Panel User Interface (Keypad And Leds)

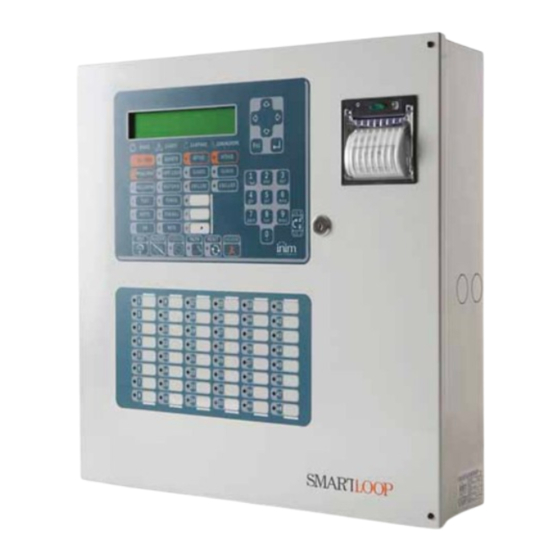

User Manual Control panel user interface (Keypad and LEDs) The SmartLoop control panel manages up 9 consoles, the main console is located on the control panel frontplate (/G and /P models only), and up to 8 optional consoles (SmartletUSee/LCD Repeaters connectable to the RS485 BUS). - Page 6 User Manual This button (Active at level 2 only: this level requires key in keyswitch or code entry) SILENCE silences (switches Off) any active outputs with the silenceable attribute. The silenceable outputs will hold silenced status until a new event occurs that releases the outputs automatically.
- Page 7 1: all building occupants). Indicates that one or more signaling outputs have BELLS - been disabled. BYPASSED Indicates that the SmartLoop/PSTN board is sending Indicates that the SmartLoop/PSTN DIALLER - an Alarm or Fault related report call. board is sending a technical...
-
Page 8: 2.2.2 Note To Security Personnel
User Manual Chapter 2 Using the Control Panel Note to Security Personnel Persons responsible for the safety of the building and its occupants can: put the control panel in day/ night; bypass zones, devices and NAC outputs; clear the call queue; disable alarm and fault report calls;... -
Page 9: Fault Signaling
User Manual Fault signaling 2.3.1 Note to building occupants FAULT LED Inform the person/s in charge of the safety of the building and its occupants immediately. 2.3.2 Note to Security Personnel You must always ensure that faults are dealt with and cleared as soon as possible. However, if you wish to stop the fault signaling, you can bypass the zone/point/output concerned. -
Page 10: Clear The Call Queue, Disable Event Associated Calls
User Manual View Events The events represent the various conditions signaled by the panel and have the following order of importance: alarm, pre-alarm, fault, early warning, bypass, test and monitor. The events that appear on the control panel and Repeater displays may have been generated by other control panels in the network. -
Page 11: View Detector Status
User Manual This command will allow you to access temporarily one of the control panels in the network from the console you are working on. During this operating mode, the screens on the display will allow you to monitor and command the remote control panel. Press to view the control panels 1 Co ntrol pane l 01... - Page 12 INIM Electronics s.r.l. Via Ischia Prima, 34 63013 Grottammare, AP - Italy Tel. +39 0735 73 09 24 Fax. +39 0735 73 61 34 email: info@inim.biz www.inim.biz DCMUINE0SLOOP -R1.01-20070405...
