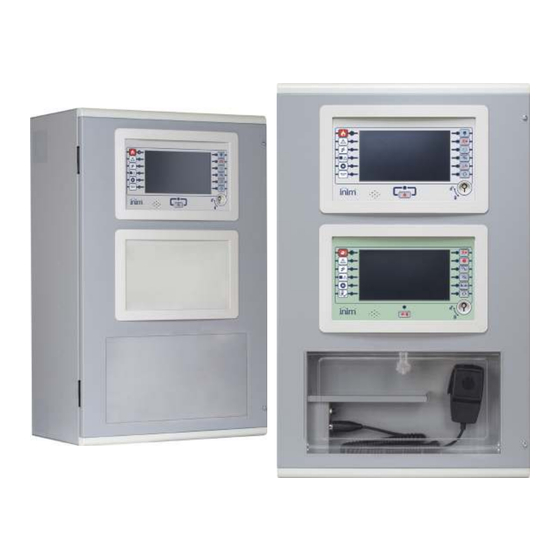

INIM Electronics PREVIDIA ULTRA216 Manual

Control panel for fire detection and alarm, fire extinction and voice-evacuation systems

Hide thumbs

page of 32

/ 32
Bookmarks

Quick Links

Download this manual

Configuration manual

EN 54-2

EN 54-4

EN 54-16

EN 54-21

EN 12094-1

0051

0051-CPR-2741

0051-CPR-2826

0051-CPR-2827

PREVIDIA

CONTROL PANEL FOR FIRE DETECTION AND ALARM, FIRE

EXTINCTION AND VOICE-EVACUATION SYSTEMS

MANUAL FOR SYSTEM

CONFIGURATION, COMMISSIONING

AND MAINTENANCE

ULTRA

Need help?

Do you have a question about the PREVIDIA ULTRA216 and is the answer not in the manual?

Questions and answers

Summary of Contents for INIM Electronics PREVIDIA ULTRA216

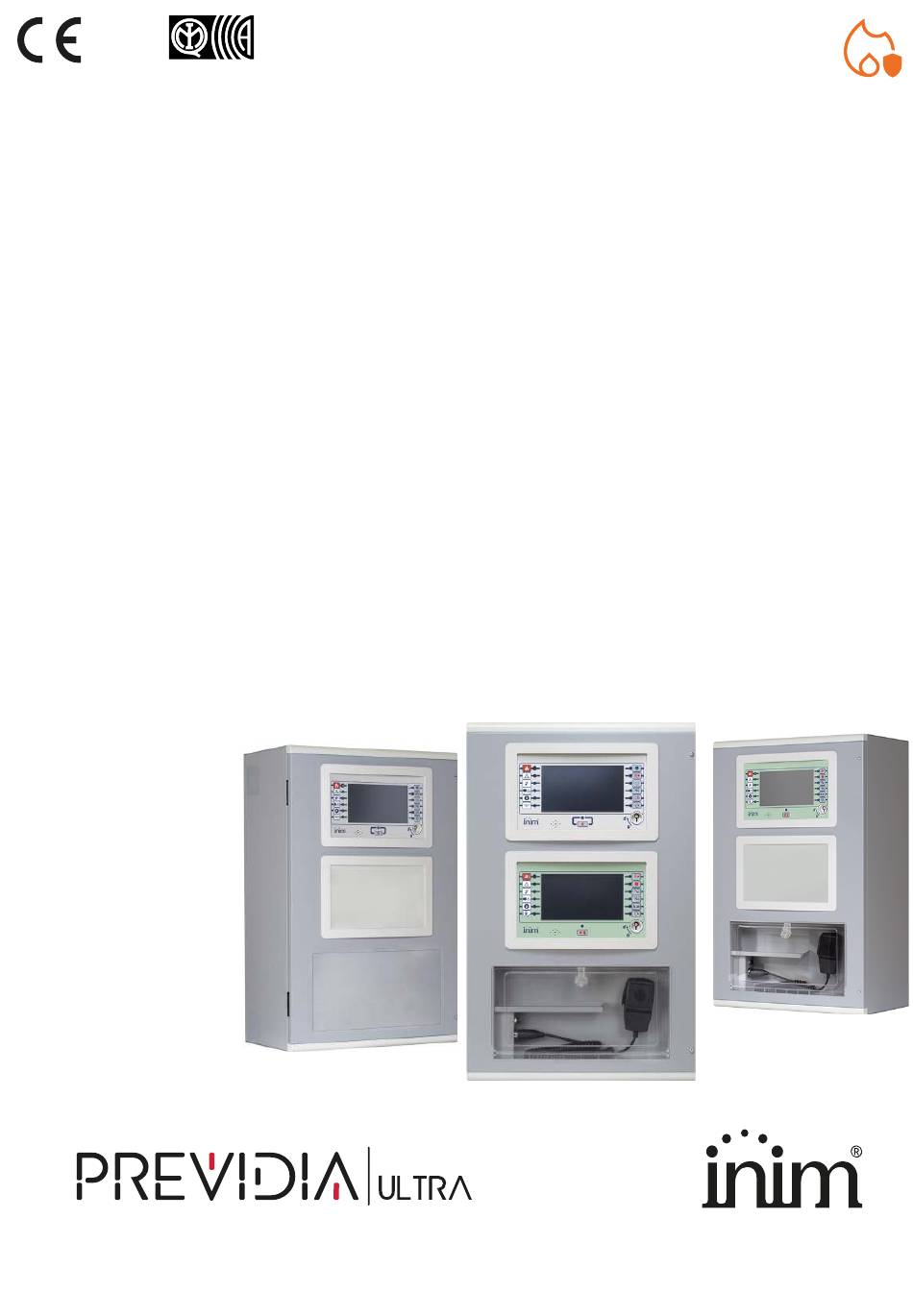

Page 1 Configuration manual EN 54-2 EN 54-4 EN 54-16 EN 54-21 EN 12094-1 0051 0051-CPR-2741 0051-CPR-2826 0051-CPR-2827 PREVIDIA ULTRA CONTROL PANEL FOR FIRE DETECTION AND ALARM, FIRE EXTINCTION AND VOICE-EVACUATION SYSTEMS MANUAL FOR SYSTEM CONFIGURATION, COMMISSIONING AND MAINTENANCE...
Page 2 In no case can INIM Electronics s.r.l. be held responsible or liable by the buyer or any other person for any loss or damage, direct or indirect, consequential or incidental.
Page 3 Configuration manual Table of contents Warranty.......................... 2 Limited Warranty ......................2 Copyright........................2 Table of contents ......................3 Chapter 1 General information ....................5 Manufacturer's details ........................5 About this manual ..........................5 Description of the configuration and programming procedures ........6 Operator classification - Access Levels ..................6 Chapter 2 Configuring the fire detection system..............
Page 4 Fire detection and extinguishing systems Table of contents...
Page 5 E-mail: info@inim.it Web: www.inim.it The personnel authorized by the manufacturer to repair or replace the parts of this system, hold authorization to work only on devices marketed under the INIM Electronics brand. About this manual Manual code: DCMCINE0PREVIDIAU Revision: 1.10 This manual describes the procedures for the configuration, commissioning and maintenance of the Previdia Ultra fire- detection system.
Page 6 Fire detection and extinguishing system Attention: The “Attention” prompts indicate that total or partial disregard of the procedure could damage the device or its peripherals. Description of the configuration and programming procedures Following is a flow chart which summarizes the operations to be carried out during the installation and commissioning phases of the Previdia Ultra system and indications regarding the manuals to refer to for each operation: Installation and cabling (refer to the Installation Manual) 2.
Page 7 Configuration manual Chapter 2 Configuring the fire detection system Once the installation and cabling procedures have been completed (refer to the Installation Manual of the Previdia Ultra system) the system is ready for first startup. In the case of first start-up, the selection of the control panel languages is requested, a compulsory main language and an optional secondary language (see paragraph 4.5).
Page 8 Fire detection and extinguishing system Access to programming In order to access the programming session of the fire detection system, it is necessary to work through the following procedure: Insert the programming jumper on the back of the FPMCPU module (see opposite, [A]).
Page 9 Configuration manual Internal layout of the selected cabinet Internal module detected Position empty N.01 FW:1.0.0. Address and firmware revision of detected module N.01 FW:1.0.0. Modules assigned to N.01 FW:1.0.0. the fire detection and voice emergency N.04 FW:1.0.0. Network address: 2 system N.05 FW:1.0.0.
Page 10 Fire detection and extinguishing system Following is a table containing the addresses allowed for each type: Address Address Maximum Maximum FPM Module IFM Module number number from from FPMLED IFM24160 FPMLEDPRN IFM2L FPMEXT IFM4R IFM4IO IFMDIAL IFM16IO IFMNET IFMLAN IFMEXT Due to the fact that each FPMEXT front plate module is associated automatically with 5 internal IFMEXT modules at precise addresses, the FPMEXT modules must have an address which respects the IFMEXT - FPMEXT module association table which follows:...
Page 11 Configuration manual Connection via RS485 BUS The BUS connection needs the addressing of any repeater in configuration, in order for the control panel to identify each module individually. To assign an address to a repeater, it is necessary to enter the configuration procedure Address starting from the display of the module itself, as described in the paragraph 2.3.
Page 12 Fire detection and extinguishing system Button to access the section for IFM2L module address assignment (paragraph 2.4 Modules Change Address addressing). Sections containing the configuration menu of the single loops. Section on the left for the loop connected to the Loop-A terminals, on the right for the Loop-B terminals. Button to access the section for loop diagnosis.
Page 13 Configuration manual Button to start the procedure which is to be performed after changes have been carried out on a previously configured loop (add, remove or replace devices). The control panel will provide a table with the previously acquired configuration in the columns on the left, and the newly detected configuration in the columns on the right.
Page 14 Fire detection and extinguishing system Chapter 3 Configuration of the emergency voice system Once the installation and cabling procedures have been completed (refer to the Installation Manual of the Previdia Ultra system) the system is ready for first startup. In the case of first start-up, the selection of the control panel languages is requested (see paragraph 4.5). The control panel screen will be as follows: Buttons to access the events logs, system...
Page 15 Configuration manual Access to programming In order to access the programming session of the voice emergency system, it is necessary to work through the following procedure: Insert the programming jumper on the back of the FPAMIAS module (see opposite, [A]). 2.
Page 16 Fire detection and extinguishing system Selection of one of the cabinets from the control panel layout ([G]) will show it both on the left ([A]), where the installed modules with their addresses and firmware revision are shown, and on the right ([I]), where the installed external modules with their network address are shown.
Page 17 Configuration manual Module layout Information on the 0 Line A Pagers Audio Matrix Line A Pagers module SN: SNSNSNSSN 26.1V FW: 1.1.1 Button to access the microphone bases of line A/B Information regarding the microphone bases of line A/B Button to access the messages saved to the flash memory 26.2V...
Page 18 Fire detection and extinguishing system • filtering algorithm for hands-free communications • volume Configuration of the IFAMFFT module The configuration of the IFAMFFT module is accessible through the main system configuration section of the emergency voice system (paragraph 3.2). The module can then be selected by tapping on the relevant icon in the section on the left, if the module is properly installed.
Page 19 Configuration manual Module layout Information on the module Button to access the Display Board settings SN: SNSNSNSSN FW: 1.1.1 Button to access the BUILD: bbbbbb PTT microphone configuration Button to access the TCP/IP settings Button to access the SD micro card functions Buttons for setting the manual emergency...
Page 20 Fire detection and extinguishing system 3.6.1 SD card functions via FPAMIAS In the programming section of the functions available thanks to the SD card, A list is shown with the following buttons: • Save Program Data, saves the control panel programming data to the SD card in a .dat file, the name of which coincides with the serial number of the control panel.
Page 21 Configuration manual The section showing the following screen will open: Module layout Information on the module Button for addressing Audio Amplifier the module SN: SNSNSNSSN Address: 1 Button to access the settings Change Address Fan configuration button Audio Zone: Amplifier configuration button Audio Zone x Speaker line...
Page 22 Fire detection and extinguishing system 3.7.1 Configuration of zones and audio sectors The configuration of the logical groupings of the loudspeaker lines (audio zones and audio sectors) necessarily involves all the Previdia Ultra control panels connected to a network. In this case it is possible to program only via the software. In the case that the Previdia Ultra control panel is not connected to a network (network address equal to “0”), a programming section is available from the panel via the Modify button on the programming menu (paragraph 3.1).
Page 23 Configuration manual Chapter 4 Generic configuration of the control panel This chapter describes the control panel configuration phases that can involve both the fire alarm system and the voice emergency system when both are present. Setting the network address (Hornet+ and IDANet) In the event that the installation involves more than one control panel connected to the network (through a Hornet+ connection or an IDANet connection, or both for the integration of the two systems), the network address must be set for each control panel.
Page 24 Fire detection and extinguishing system Information on the module Button for addressing the module Section containing a list of current faults Voltage and output current of the module PSU 1 Board Battery parameters Low battery voltage Output SN: SNSNSNSSN Missing mains 26.2 V (internal resistance, FW: 1.1.1...
Page 25 Configuration manual Signal check and fault search Once the configuration setup has been completed, the control panel will check the status of the devices and input/ output terminals. Eventual faults on these elements will be shown on the screen. In this case, it is necessary to remove the causes of the fault until you return to the stand-by screen that shows no fault messages (refer to the Previdia Ultra system installation manual).
Page 26 Fire detection and extinguishing system Internal modules: the firmware of N.01 FW:1.0.0. each internal module (already installed) can be seen by accessing configuration menu (paragraph 2.3 - [J], paragraph 3.2 - N.01 FW:1.0.0. [K]). N.01 FW:1.0.0. N.04 FW:1.0.0. Network Address: 2 The address and the firmware N.05 FW:1.0.0.
Page 27 Configuration manual Chapter 5 Commissioning The commissioning phase is a set of tests and inspections which are necessary to ensure the full efficiency and proper functioning of the system as specified in the system project. This phase is essential and must be performed in a scrupulous way in accordance the regulatory requirements of the country where the system is installed and in full respect of the recommendations in the following section.
Page 28 Fire detection and extinguishing system Testing to detectors and manual activations All the installed detectors must be tested during the commissioning phase. It is necessary to check the capacity of each detector to react to a simulated condition of fire, and to check the precision of the signals transmitted to the control panel in response to its activation (description of the point and zone).
Page 29 Configuration manual • Verification time (s), if an input device has the alarm verification option enabled, the maximum verification time is 30 minutes (EN 54-2 - clause 7.12.1 [c]). • Lock reset time after released (min), the maximum time is 30 minutes (EN 12094-1:2003 - clause 4.12.2). •...
Page 30 Fire detection and extinguishing system Chapter 6 Maintenance For correct and efficient management of the system it is necessary to carry out periodic maintenance in accordance with the regulatory requirements of the country where the system is installed and in full respect of the recommendations contained in this section.
Page 31 Configuration manual...
Page 32 Fire detection and extinguishing systems Inim Electronics S.r.l. ISO 9001 Quality Management certified by BSI with certificate number FM530352 Centobuchi, via Dei Lavoratori 10 63076 Monteprandone (AP), Italy Tel. +39 0735 705007 _ Fax +39 0735 704912 info@inim.it _ www.inim.it...
