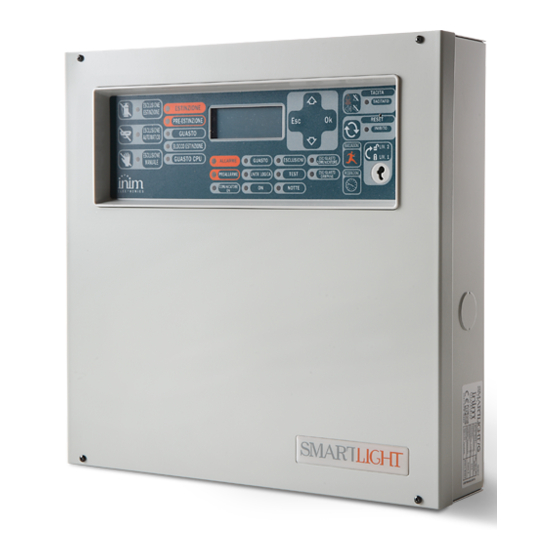

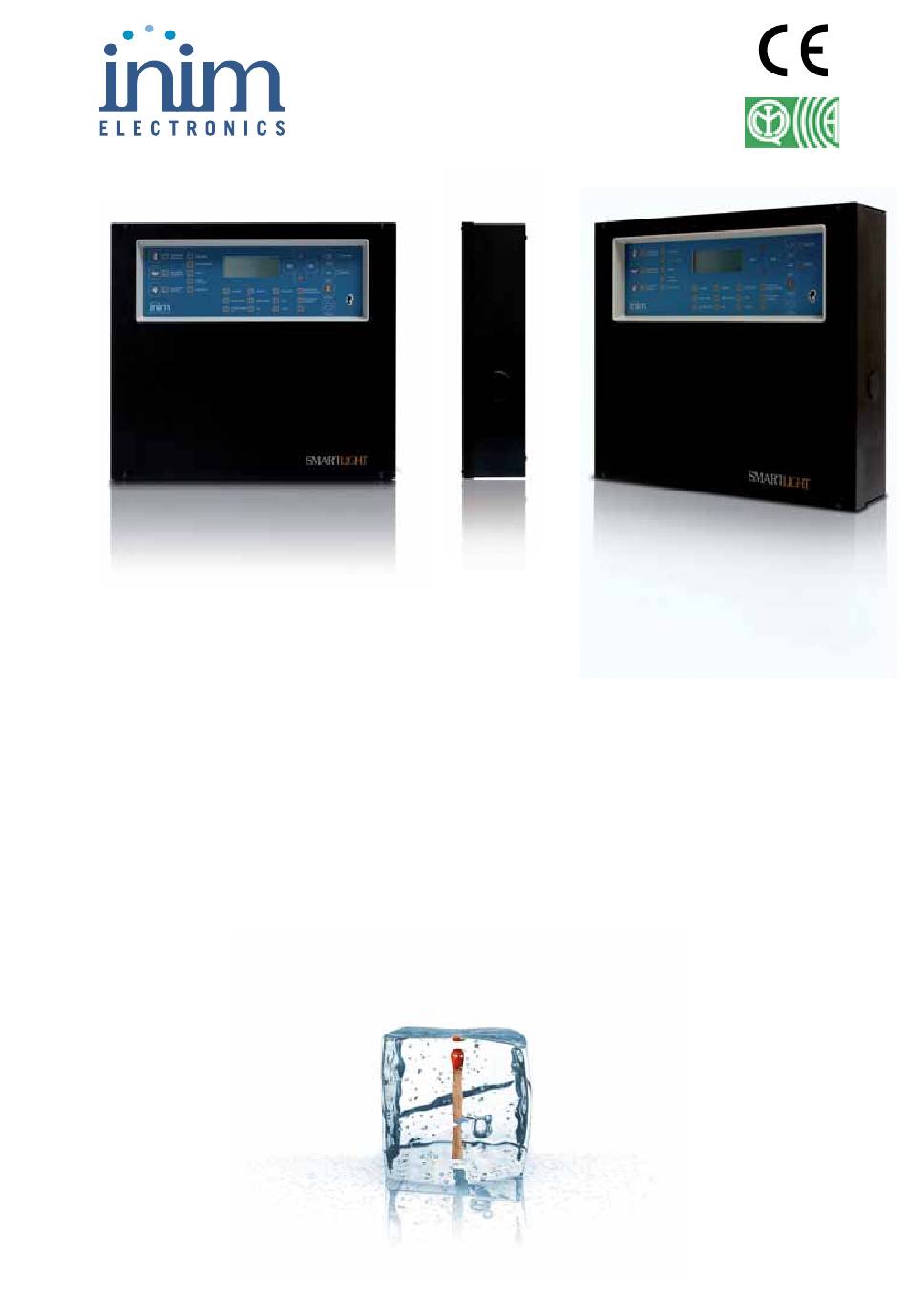

- Page 1 SmartLight Analogue Fire Alarm Control Panel Extinguishant System Control Panel User’s Manual GameOver...
-
Page 2: Description Of The Control Panel
Year of Manufacture: from 2007 In-box documentation • User Manual (this manual) • Installation and Programming Manual Manual details Title: SmartLight User Manual • Edition, Issue: 1.0.0 • Month and Year of printing: February 2007 • User Manual Code: DCMUINE0SLIGHT Control panel user interface... - Page 3 User Manual 1.5.1 Commands Note: For further details refer to the Installation Manual, paragraph 5.1 SmartLight panel frontplate. Name Access lev.1--public Access lev.2--security personnel [A] 4 scroll keys UP/DOWN/ OK/ESC Push this button to silence This button silences (turns OFF) active outputs with the SILENCE (turn OFF) the panel beeper.
- Page 4 User Manual Description ON Solid: ON Blinking: Indicates an alarm condition, that is, an input ALARM point (detector, callpoint, input module, etc.) set LED (red) to generate alarms has detected alarm conditions. Indicates a pre-alarm condition, that is, an input PRE- point (detector, callpoint, input module, etc.) set ALARM...
- Page 5 Figure 2 - Front view of the Repeater panel The SmartLetUSee/LCD Repeater is supported by most control panel models. However, if it is connected to a SmartLight panel, not all the buttons are operational. The following keys/buttons are operational: Scroll keys which allow navigation through menus, etc.
- Page 6 User Manual 1.6.2 LEDs Denomination ON Solid: ON Blinking: As above Figure 1 - Control panel frontplate SILENCE As above Figure 1 - Control panel frontplate RESET DISABLED As above Figure 1 - Control panel frontplate INVESTIGATE As above Figure 1 - Control panel frontplate ALARM As above Figure 1 - Control panel frontplate PRE-ALARM...
-
Page 7: Using The Control Panel
User Manual Chapter 2 Using the Control Panel For authorized persons Attention: Insert and turn the key. The panel will enable access level 2. The panel will hold level 2 status for 20 seconds without receiving a command (no key/button pressed). Danger signaling In the event of fire hazard, always follow the fire department approved fire drill. - Page 8 User Manual Fault signaling 2.3.1 For all building occupants FAULT LED Inform security personnel immediately. 2.3.2 For authorized personnel You must always ensure that faults are dealt with and cleared as soon as possible. However, in the meantime, you can bypass the zone/point/output concerned. FAULT LED On Indicates at least one system fault condition.
- Page 9 User Manual Signaling on the display If several events of the same type occur, only the first will be shown on the display. If several alarms occur, the first alarm will remain on the first line of the display and the most recent alarm will be shown on the line below.
- Page 10 User Manual Example of first pre-alarm event: a detector belonging to zone 02 goes into alarm status. 1st line: progressive number of the pre-alarm event and total Pre- Alarm 01/0 1 number of pre-alarm events Poin t 05 <Poi nt De scr. 005> 2nd line: number of the point in pre-alarm status <Zon e Des cr.
-
Page 11: Logged Events
User Manual 1st line: progressive number of the fault event and total number Faul t 0 2/02 of fault events Miss ing Poin t 2nd line: fault type <Poi nt D escr. 1 26> 3rd line: number of the point that signaled the fault 4th line: description of the point 2.5.4 Bypassed and Test Signaling Bypassed status can be signaled by loop points, zones or outputs. - Page 12 Electronics s.r.l. No part may be copied without written authorization from Inim Electronics s.r.l. All rights reserved INIM Electronics s.r.l. Via Ischia Prima, 34 63013 Grottammare, AP - Italy Tel. +39 0735 73 09 24 Fax. +39 0735 73 61 34 email: info@inim.biz...
