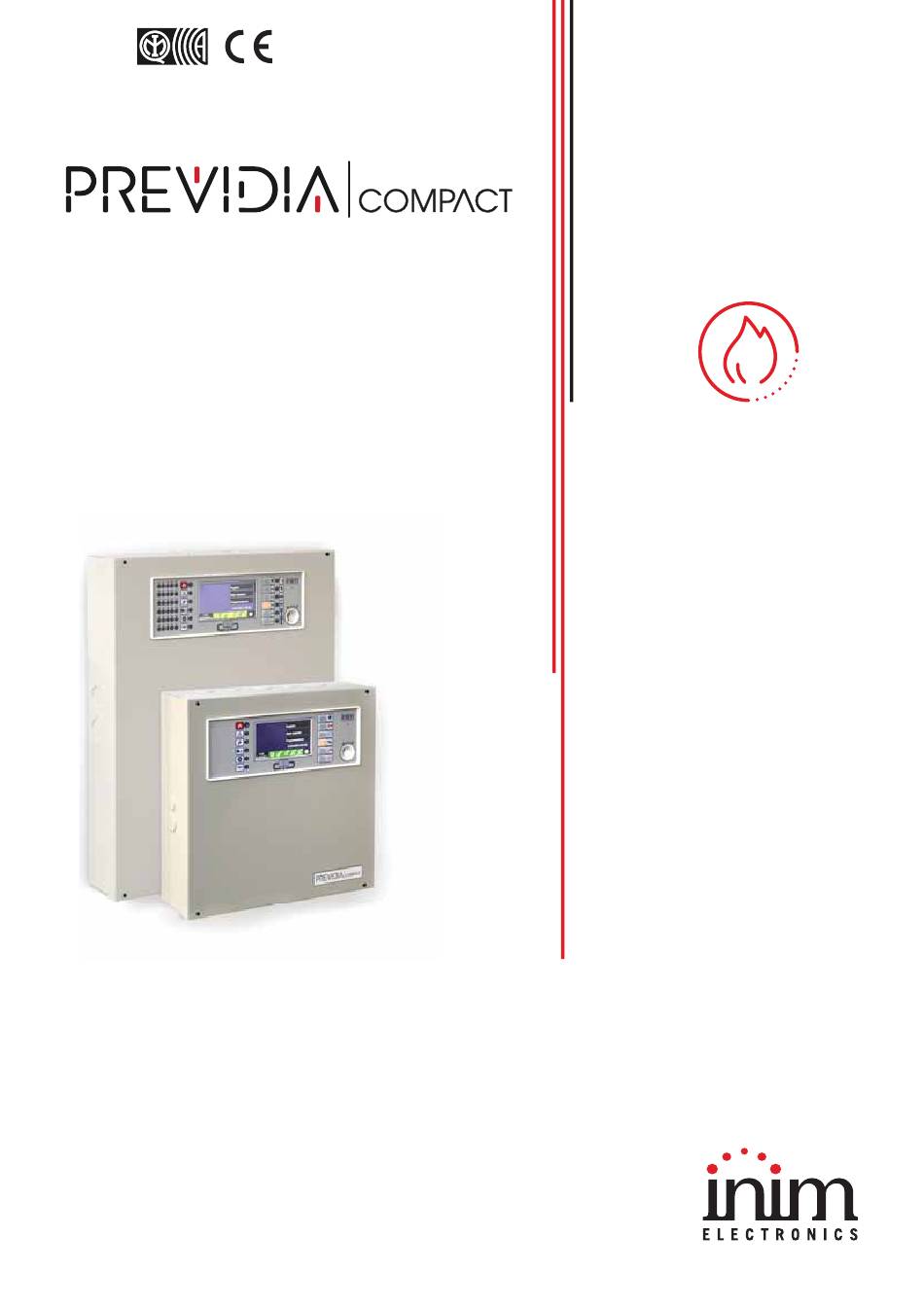

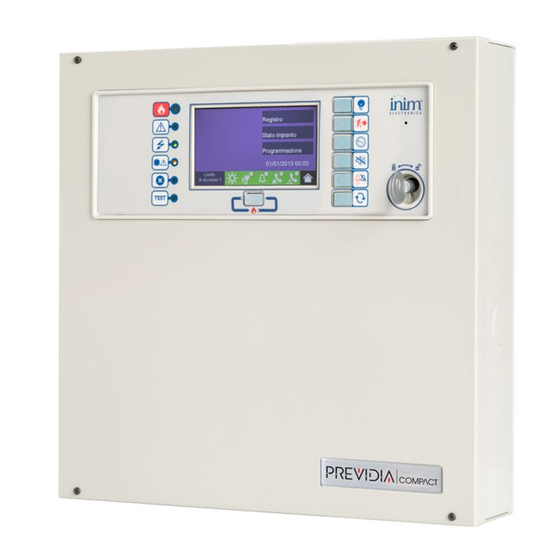

- Page 1 Configuration manual EN 54-2 EN 54-4 EN 54-21 EN 12094-1 0051 0051-CPR-1498 0051-CPR-1499 ANALOG-ADDRESSABLE FIRE ALARM CONTROL PANEL, MANUAL FOR EXTINGUISHANT SYSTEM CONTROL PANEL, SYSTEM CONFIGURATION, ALARM TRANSMISSION AND FAULT WARNING ROUTING EQUIPMENT COMMISSIONING AND MAINTENANCE...
-
Page 2: Warranty
INIM Electronics s.r.l. (Seller, Our, Us) warrants the original purchaser that this product shall be free from defects in materials and workmanship under normal use for a period of 24 months. As INIM Electronics s.r.l. does not install this product directly, and due to the possibility that it may be used with other equipment not approved by Us; INIM Electronics s.r.l. -
Page 3: Table Of Contents
Configuration manual Table of contents Warranty.......................... 2 Limited warranty......................2 Copyright........................2 Table of contents ......................3 Chapter 1 General information ....................5 Manufacturer's details ........................5 About this manual ..........................5 Description of the configuration and programming process ..........6 Operator classification - Access Levels ..................6 Chapter 2 Configuration ........................ - Page 4 Fire detection and extinguishant system Table of contents...
-
Page 5: Chapter 1 General Information
INIM Electronics. About this manual Manual code: DCMCINE0PREVIDIAC Revision: 1.20 This manual describes the procedures for the configuration, commissioning and maintenance of the Previdia Compact fire-detection system. 1.2.1 Graphic conventions Following are the graphic conventions used in this manual:... -
Page 6: Description Of The Configuration And Programming Process
Following is a flow chart which summarizes the operations to be carried out during the installation and commissioning phases of the Previdia Compact system and indications regarding the manuals to refer to for each operation. Installation and cabling (refer to the Installation Manual) 2. -
Page 7: Chapter 2 Configuration
Configuration manual Chapter 2 Configuration First startup Once the installation and cabling procedures have been completed (refer to the Installation Manual of the Previdia Compact system) the system is ready for first startup. In the case of first startup and after having performed the procedure to set the factory data, it is necessary to enter the unlocking code: Please enter the code SHOW... -
Page 8: Access To Programming
- Factory default settings (refer to paragraph 2.5) Accessing the configuration menu The configuration menu allows the programmer to put all the parts of the Previdia Compact System in the configuration (control panel, connections and connected devices) after the initial installation phase. -
Page 9: Access To The Device Modification Menu
Refer to paragraph 5.1 Access to the device modification menu Once the Previdia Compact system has been configured it is necessary to set the parameters, or change the default programming of the devices connected to the control panel, individually or in a group. -
Page 10: Resetting Factory Default Data
Resetting factory default data The resetting of the factory default data and consequent deletion of the configuration data on the Previdia Compact control panel can be done in two ways: • By selecting the Factory data option from the programming menu (refer to paragraph 2.2). -
Page 11: Chapter 3 System Parameters
Chapter 3 System Parameters The configuration of the Previdia Compact control panel, its interfaces and external connections provides for the settings of a series of parameters reachable from the control panel by accessing control panel programming (paragraph 2.2) and then pressing the Configuration button on the menu shown on the screen. -
Page 12: Configuring The Ethernet Network
Fire detection and extinguishant system The "Parameters" section provides: Get date and time Ethernet • Get date and time, check box that allows you to set and update the date and time of the control panel from the Cloud, in accordance with the time zone selected by pressing the dedicated button and setting the area and Time zone zone... -
Page 13: Configuring The Hornet+ Network
Configuration manual The available parameters are: • IP address Net mask • Netmask • Gateway Gateway • Communication port • DNS Server, IP address of the DNS server to be used to DNS Server access the Cloud (default: 8.8.8.8) 6001 Port The Esc and Set buttons will allow you to exit the section without changing the programming or saving it. - Page 14 Fire detection and extinguishant system 3.5.1 Auto-configuration of the loop Auto-configure Pressing the button provides you with the following buttons for access to the relative subsections: • Enroll • Readdress • Update • Add/Change Procedure completed - Found: 73 Enroll: This button performs a loop scan (after command confirmation) which searches for all the connected devices 1 Generic and puts those found into the configuration [A].
- Page 15 Configuration manual After completing the connection of a new device or replacing an old device, it is necessary to select the address involved then tap on the Add/Change button. When using Inim protocol, it is necessary to enter the serial number of the new device.
-
Page 16: Sd Card Functions
Fire detection and extinguishant system 3.5.3 Loop Parameters Parameters button on the loop configuration menu allows you to set: • Device protocol • Wiring type (2 or 4 wires) Inim Note: If you are making a two-wire connection, you can install 4 wires a maximum of 32 fire-alarm devices on the loop (detectors or call points). -
Page 17: Configuring The Users
User level Type - User level, coincides with “Level 3” (authorized user) Previdia Compact control panels are supplied at default with Access level:3 the first 4 codes already pre-set: Code number Code type... -
Page 18: Configuring The Extinction Channel
Fire detection and extinguishant system • PREVIDIA-C-COM, transmission through the optional serial and IP interface module. If selected the relative Program button will activate (refer to paragraph 3.9.1). The APN button [B] provides access to a section for the parameters required for the connection to the mobile network. The Contacts button [C] accesses the phone book programming phase. - Page 19 Configuration manual 3.10.1Extinction times The following parameters can be set on the extinction- Pre-ext. Automatic channel configuration page: (sec) Zones • Automatic pre-extinction time: duration of pre- Pre-ext. Manual extinction time, in seconds, when triggered by fire- fighting devices connected to the control panel. (sec) Inputs •...
- Page 20 Selecting “--” for the assigned group disables the related stop-extinction mode. EN12094-1: If the “Stop Extinction ABORT” function is utilized with a Previdia Compact control panel, the “Stop Extinction HOLD” and “Stop Extinction ADD” functions cannot be associated with inputs, and vice versa.
