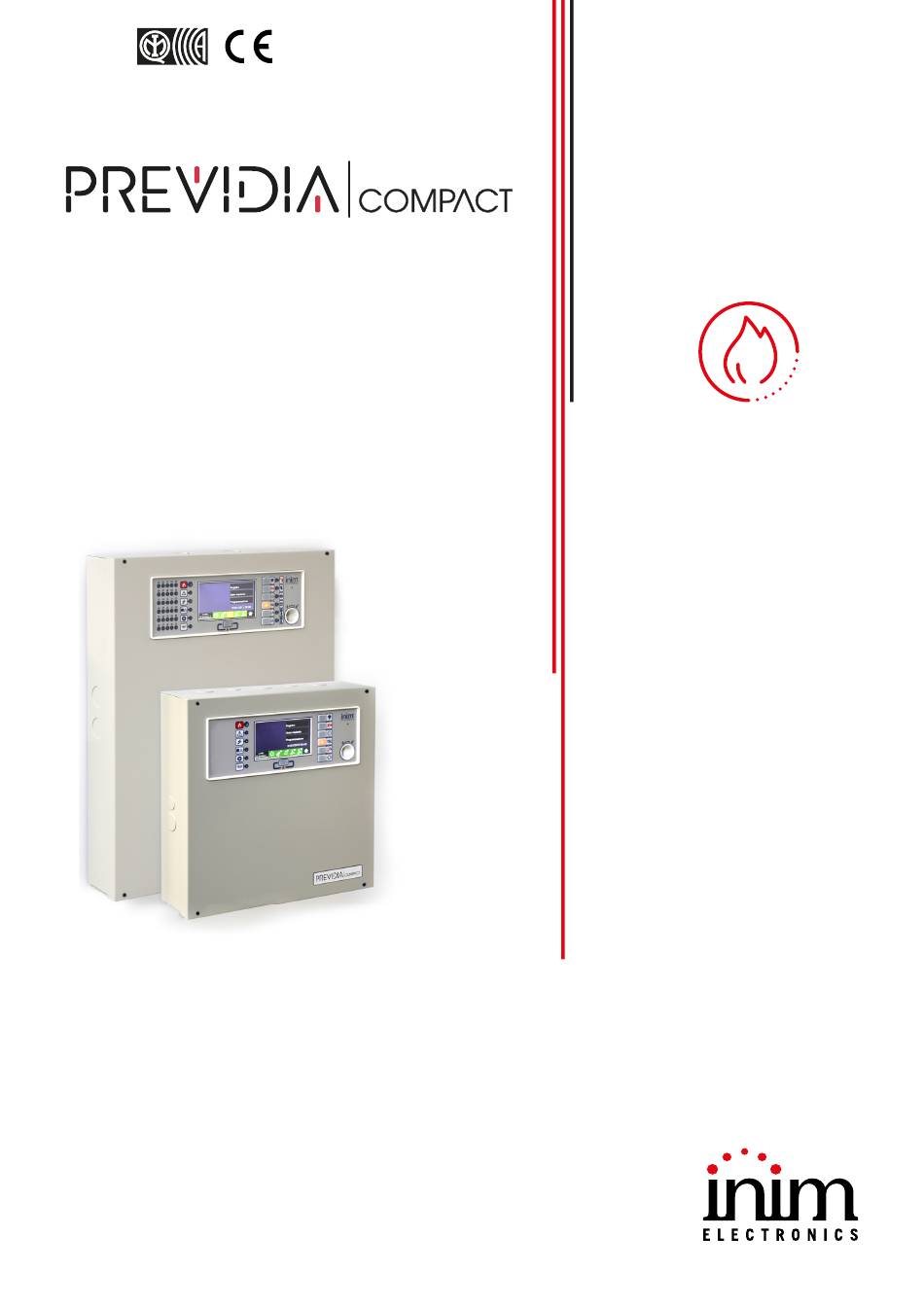

- Page 1 User’s manual EN 54-2 EN 54-4 EN 54-21 EN 12094-1 0051 0051-CPR-1498 0051-CPR-1499 ANALOG-ADDRESSABLE FIRE ALARM CONTROL PANEL, USER’S MANUAL EXTINGUISHANT SYSTEM CONTROL PANEL, ALARM TRANSMISSION AND FAULT WARNING ROUTING EQUIPMENT...
-
Page 2: Warranty
INIM Electronics s.r.l. (Seller, Our, Us) warrants the original purchaser that this product shall be free from defects in materials and workmanship under normal use for a period of 24 months. As INIM Electronics s.r.l. does not install this product directly, and due to the possibility that it may be used with other equipment not approved by Us; INIM Electronics s.r.l. -
Page 3: Table Of Contents
Manufacturer's details ........................5 About this manual ..........................5 Operator qualifications - access levels ..................5 CE Mark...............................6 Chapter 2 Operative statuses of the Previdia Compact system ..........8 Chapter 3 User interface ........................9 Front plate models...........................9 Function buttons and LEDs ......................10 Screen in standby status....................... 11 Status Bar............................ - Page 4 Fire detection and extinguishant system Table of contents...
-
Page 5: Chapter 1 General Information
INIM Electronics brand. About this manual Manual code: DCMUINE0PREVIDIAC Revision: 1.10 This manual describes the procedures for the configuration, commissioning and maintenance of the Previdia Compact fire-detection system. Operator qualifications - access levels The control panel has 4 distinct access levels: Level 1: Public level - this is the normal access level of the control panel and is the access level for building inhabitants who are neither authorized to use the system nor instructed in its use. -
Page 6: Ce Mark
Power supply performance PASS Response delay (response time in the event of fire) PASS 0051 Transmission performance PASS INIM Electronics s.r.l. Operating reliability PASS Via Dei Lavoratori 10 - Fraz. Centobuchi Thermal resistance 63076, Monteprandone (AP) - Italy PASS Vibration resistance... - Page 7 User’s manual 1.4.2 Directive 2014/53/EU Hereby, INIM Electronics S.r.l. declares that these Previdia Compact are in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. Following paragraph explains how to download the complete Declaration of Conformity. This product may be used in all EU Countries.
-
Page 8: Chapter 2 Operative Statuses Of The Previdia Compact System
Fire detection and extinguishant system Chapter 2 Operative statuses of the Previdia Compact system Standby: Operating status of the control panel when there is no ongoing alarm or fault signalling. This status is altered by the occurrence of an event, that is, an operative status which is characterized by an activation (when the event occurs) and a reset (when the event ends). -
Page 9: Chapter 3 User Interface
User interface Front plate models The user interface of the Previdia Compact control panel consists of a touch-screen display, buttons and LED indicators mounted on the front plate. Depending on the control panel model, there are three different types of user interfaces:... -
Page 10: Function Buttons And Leds
Fire detection and extinguishant system Function buttons and LEDs The LEDs on the sides and below the screen provide visual signals which indicate the general status of the system, whereas the function buttons allow fast execution of all the main operations. The key permits level 1 (public level) to pass to level 2 (supervisor level). -
Page 11: Screen In Standby Status
User’s manual Function LEDs Colour On solid Function button Signalling The test on the visual If this button is pressed and held all the LEDs Yellow test signalling devices is running. on the control panel will light. Button for manual activation of the signalling The evacuation phase has Evacuate devices (audible and visual) for evacuation of... -
Page 12: Status Bar
Fire detection and extinguishant system Status Bar Icon Function Selection of this area allows you to enter a code and change the current user-access level. Access level:1 - 1 = Public level (no code entry) - 2 = Supervision level (turn key or user code entry) - 3 = Programming level (installer code entry) If required by the configuration, this button will appear on the status bar. - Page 13 User’s manual Icon Function Selection of this icon accesses the management window of the remote communicator for alarm signalling. If installed, remote alarm-signalling devices (voice or digital telephone communicators associated with alarm receiving centres) are in standby status and operating efficiently. A fault has occurred on a remote alarm-signalling device.
-
Page 14: Chapter 4 Inim Cloud Fire
Chapter 4 Inim Cloud Fire The INIM Electronics Cloud service of provides Previdia users with a way to manage their fire alarm control panels via the Internet, added to that is the possibility to access the control panel screen directly. -
Page 15: Registration Of A Control Panel To The Inim Cloud User Account
User’s manual Alarms Button that opens a window listing the last 4 alarm or tamper events. Faults Buttons for quick viewing Button that opens a window listing the last 4 fault events. These are always present and show, superimposed, the number Other events of events present in the Installation Button that opens a window listing the last 4 control panel events as... -
Page 16: Chapter 5 Viewing The System
The events are listed in a chronological order [C] and can be scrolled with the arrow keys. PREVIDIA COMPACT By selecting with a touch an event generated by a loop Access level:1 device, you will access the management page of the device itself (refer to paragraph 6.2 Device management). -
Page 17: Visualization Of The Events Log
Keys for scrolling the events in the log 149/150 54/5000Number of the 01/01/2020 18:21 Lost Optical detector PREVIDIA COMPACT selected event out of the Zone 1 Loop 1 - Point 6 total events 01/01/2020 18:22 RECOGNIZED CODE User Code... -
Page 18: Visualization Of The System Status
Dialer Revisions Description of the control panel being viewed Alarm Counter: 23 Previdia Compact control panel Button for displaying the firmware revision of the Access level:1 control panel in use The Control panel access button allows you to select one of the Previdia control panels configured in the network to which the control panel you are accessing belongs. - Page 19 User’s manual Button Display Section Section for the selection of the loops of the Loop Status selected control panel. Point Loop 1 Stand-by The status of each loop is shown and made Loop 2 Alarm distinctive by colour: Loop 3 Fault •...
- Page 20 Fire detection and extinguishant system Button Display Section Section for the management of the timers Timers Status programmed for the selected control panel. Timers Timer 1 Stand-by The activation status of each timer is shown Timer 2 Stand-by and made distinctive by colour: Timer 3 Active •...
- Page 21 User’s manual Button Display Section Section to change the enabled/disabled status of the selected element. Timed (minutes) Disable Disable • Disable , to disable the selected element. Other system elements which influence the 0030 selected element (timers, inputs, detectors, Enable etc.) cannot enable it.
-
Page 22: Chapter 6 Using The System
Fire detection and extinguishant system Chapter 6 Using the system Access to programming The Programming button (paragraph 3.3 - [A]) accesses the system configuration functions. These functions are reserved for specialized technical personnel only and require entry of the installer code. Refer to the Configuration and Programming manuals. -
Page 23: Management Of The Remote Communicator
Manage System > select one of the available control panels > Zones Management of the remote communicator Previdia Compact allows you to view and manage a remote communicator. "Remote communicator" defines the remote notification functions performed by the PREVIDIA-C-DIAL communicator module, via the telephone line or 3G line, by the TCP-IP digital communicator on-board the control panel, or by any external communication device connected to the control panel or to the optional PREVIDIA-C-COM board. -
Page 24: Managing The Extinction Channel
This function becomes available via: Manage System > select one of the available control panels > Communicator Managing the extinction channel The front plates of control panels from the Previdia Compact range equipped with fire extinction channels, provide signals via the LED indicators: Colour... - Page 25 User’s manual Once reached, the left side of the section will provide Extinction Disable extinguishing information relating to the status of the channel and the description of the current fault. - OPEN OUTPUT Valve Disable Automatic Exting. On the right side are the function buttons associated with the remote communicator.
- Page 26 Fire detection and extinguishant system Using the system...
-
Page 27: Appendix
User’s manual Appendix Rapid emergency management Sequence in the event of ALARM Mute the buzzer Pass to access level 2 by turning the key clockwise (one pulse sufficient) Silence the sounders Verify signalling on the display In the event of false alarm press the reset button In the event of danger activate manual evacuation... - Page 28 Fire detection and extinguishant system ISO 9001 Quality Management certified by BSI with certificate number FM530352 Centobuchi, via Dei Lavoratori 10 63076 Monteprandone (AP) Italy Tel. +39 0735 705007 _ Fax +39 0735 704912 info@inim.biz _ www.inim.biz Rapid emergency management DCMUINE0PREVIDIAC-110-20200115...
