Identifying Ports

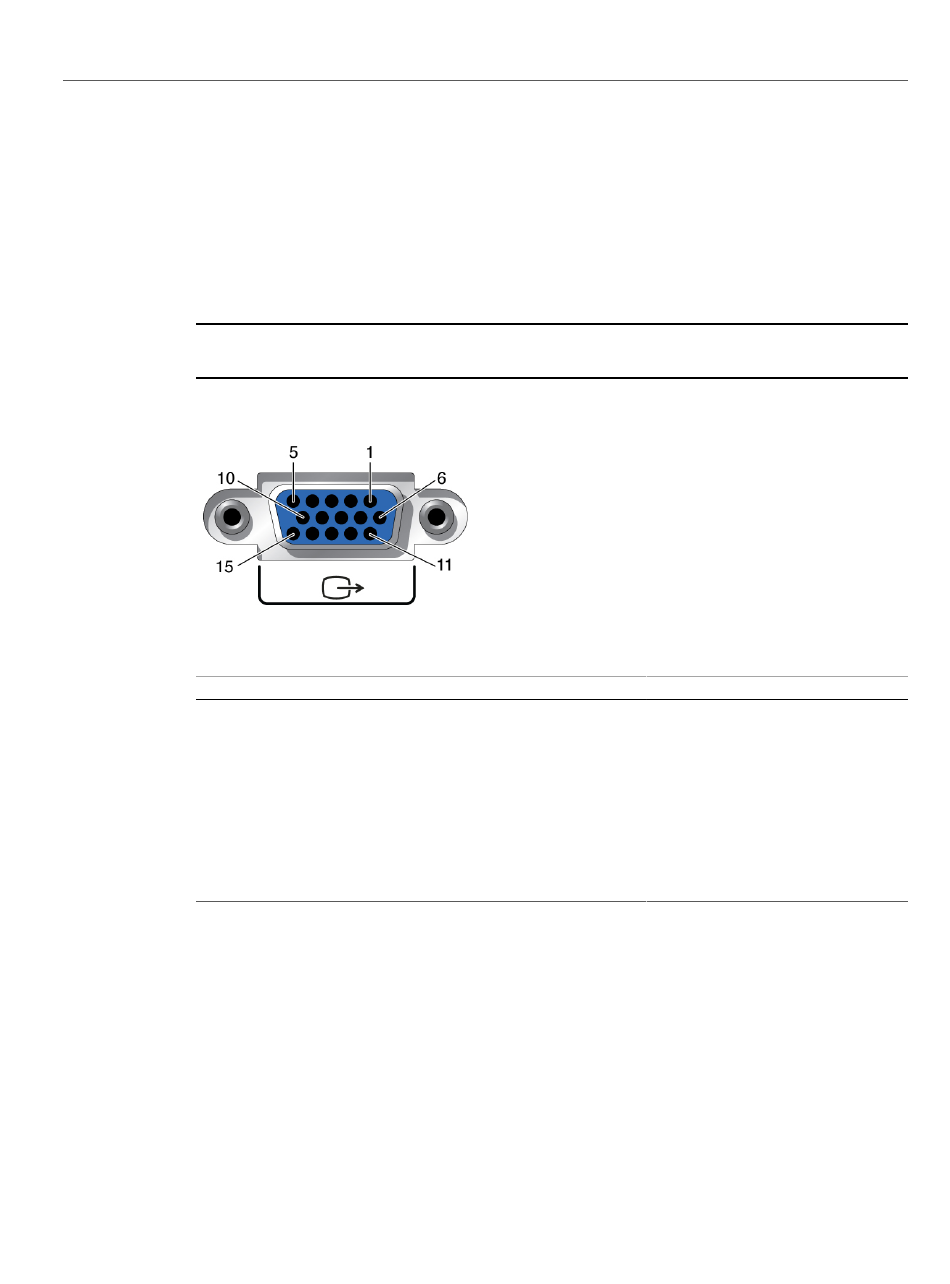

VGA Port
The server has one 15-pin VGA video port on the rear of the server. See
Components" on page
required connection. Maximum supported resolution is 1024 x 768.
Note -
over 6 meters.
Pin
1
2
3
4
5
6
7
8
SAS Ports
The eight SAS connectors are located on the drive backplane inside the server. Four of the
connectors also can be used by NVMe drives.
58
SPARC T8-1 Server Installation Guide • June 2019
13. Use a DB-15 video cable to connect to a video adapter to achieve the
The cable length used to connect between the monitor and the VGA port should not be
Signal Description
Red Video
Green Video
Blue Video
Monitor ID - Bit 2
Ground
Red Ground
Green Ground
Blue Ground
Pin
Signal Description
9
[KEY]
10
Sync Ground
11
Monitor ID - Bit 1
12
VGA 12C Serial Data
13
Horizontal Sync
14
Vertical Sync
15
VGA 12C Serial Clock
"Rear Panel
