HEATER BAR CARTRIDGE REPLACEMENT

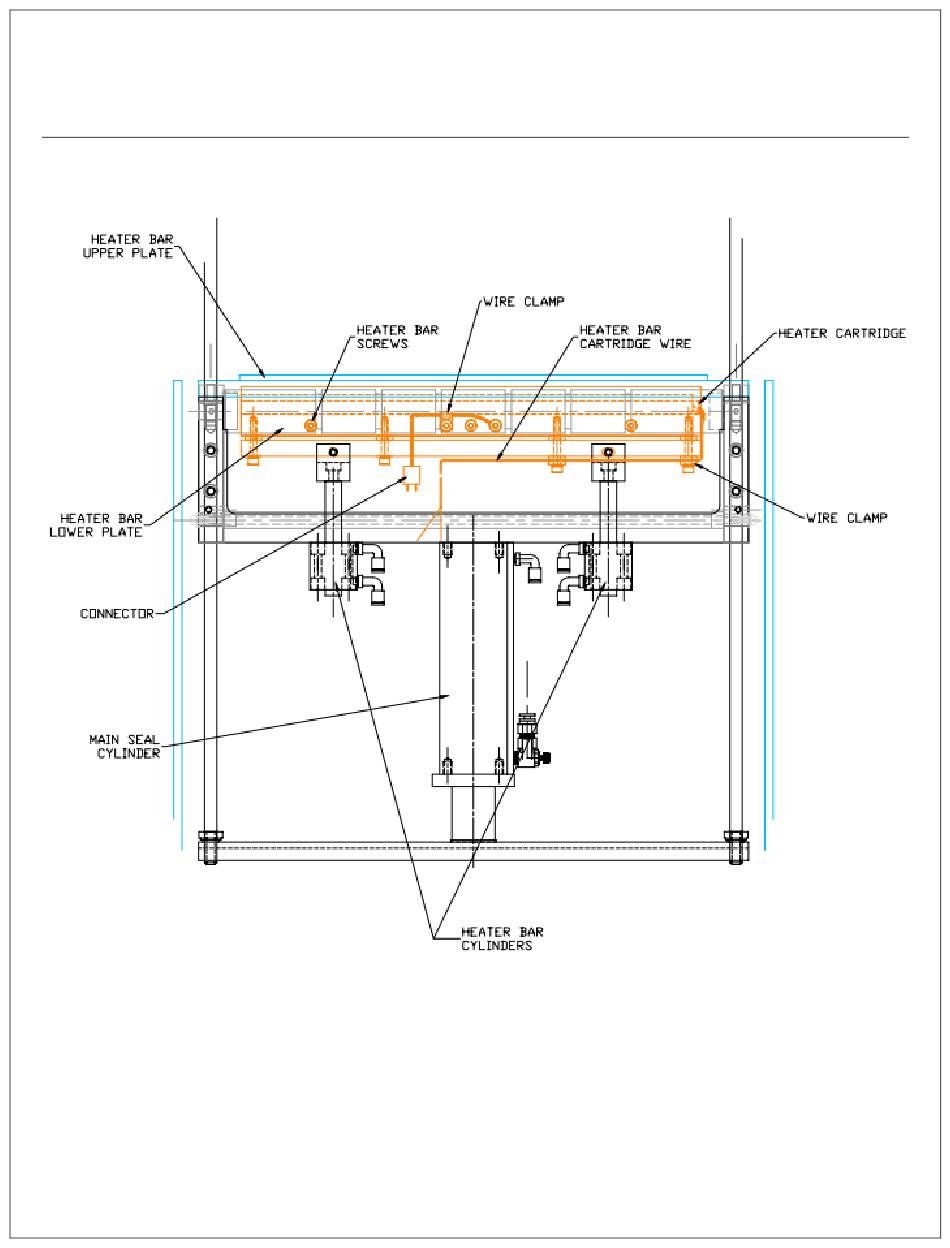

Figure 4-8
VIEW FROM UNDERNEATH THE INNER FRAME
Note: Heater cartridge wires must make a sharp 90° bend at the end of heater bar. Wires should not
extend past the end of the heater bar.
Note: If the wires rub on the bagger when the heater bar is in or out, the heater cartridge will fall
prematurely.
74
