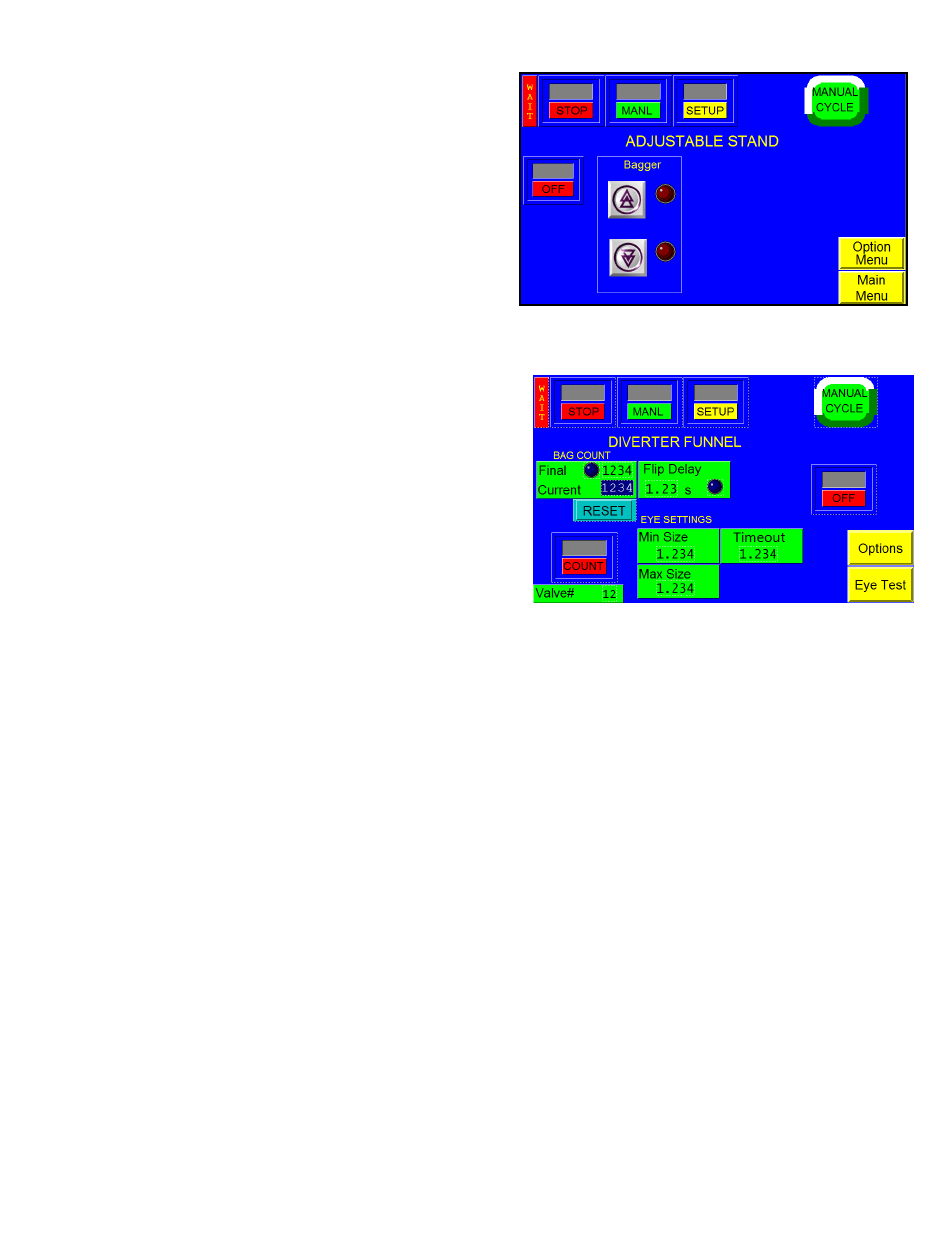

3.25 Adjustable Stand Screen

Operating height can be adjusted through the touch screen
controlling a telescopic lift screw mechanism. To adjust the
height, toggle the Option ON and press the UP Arrow or the
DOWN Arrow. See Figure 3 - 24.
3.26 DF-20 Part Diverter (Diverting
Funnel)
This feature is used to count bags and divert them from the
Figure 3 - 24
bagger for further packaging operations. See Figure 3 - 25.
Final / Current: Final displays the total, preset count. Current
displays the count the machine is processing. Press the green
<Final / Current> button, enter a value on the numeric keypad
and press the <ENT> button to adjust the final count. The
Final LED will illuminate when the final count is reached.
Press the <Reset> button to reset the Final Count.
Flip Delay: The amount of time, in seconds, before the part
diverter will flip after receiving a signal from the sensor.
Note: Valve # X indicates the Valve Station number
assigned to this option. Valve #0 indicates that no valve is
Figure 3 - 25
assigned to this option. The option will not operate unless a
Valve Station number greater than zero is assigned.
Min Size: This setting affects how parts are counted and is used to filter scrap. Min Size can either be manually
set by the operator or automatically set after an eye test is performed. If manually set, Min Size should be set to
reflect the minimum size that can be counted as one part. For example, if the Min Size is set to 0.4, a part
measured at 0.3 would not be counted, while a part measured at 0.5 would be counted as one part (assuming 0.5
falls below the Max Size setting). If automatically calculated, Min Size is 80% of the Min measurement. To adjust
Min Size manually, press the <Min Size> button, enter a value on the numeric keypad and press the <ENT>
button.
Max Size: This setting affects how parts are counted and is used to count connected parts or parts falling through
the eye together as two parts. Max Size can either be manually set by the operator or automatically set after an eye
test is performed. If manually set, Max Size should be set to reflect the maximum size that can be counted as one
part. For example, if the Max Size is set to 0.8, a part measured at 0.6 would be counted as one part (assuming 0.6
is above the Min Size setting), while a part measured at 0.9 would be counted as two parts. If automatically
calculated, Max Size is 160% of the max measurement. To adjust Max Size manually, press the <Max Size>
button, enter a value on the numeric keypad and press the <ENT> button.
Note: If Min Size is set too close to the actual minimum test value, some parts may not be counted, causing
overcounts. If Max Size is set too close to actual maximum test value, one part may be counted as two, causing
undercounts.
Timeout: The length of the time (time-out time) the eye does not take a measurement while reading a part. Press
the <Timeout> button, enter a value on the numeric keypad, and press the <ENT> button to adjust the value.
