3.1 Touch Screen Operation

This section describes in detail, the identification, operation, and adjustments of the Touch Screen Program.

3.2 Touch Screen Specifications / Features

Screen, Resolution
Features
LCD
Memory
Communication
Touch Key Resolution
Languages
Dimension
Back Light
Power Supply
Protection (Front)
Conforming
CAUTION: Do not attempt to reprogram the PLC or touch screen. Doing so may cause an unsafe operating condition.
Doing so will also void the warranty. Additionally, do not change the DIP switch settings.

3.3 Touch Screen Program, Overview

The Touch Screen Program is a "user-friendly" menu-driven setup and operation program. Pop-up windows are
incorporated for quick and easy setting adjustments. Each time a setting is changed, the settings are saved so that
if power is lost, the "job" will be recalled automatically without the need for reprogramming.
A general color scheme has been used to identify
functions:
Blue: Background color. Blue is used as a background
or text-only color, which when pressed typically does
nothing.
Yellow: Menu buttons which will take you to other
areas in the program.
Green: Setting buttons used to change settings or mode
of operation.
Red: Stop, off functions or warning messages.

3.4 Introductory Screen

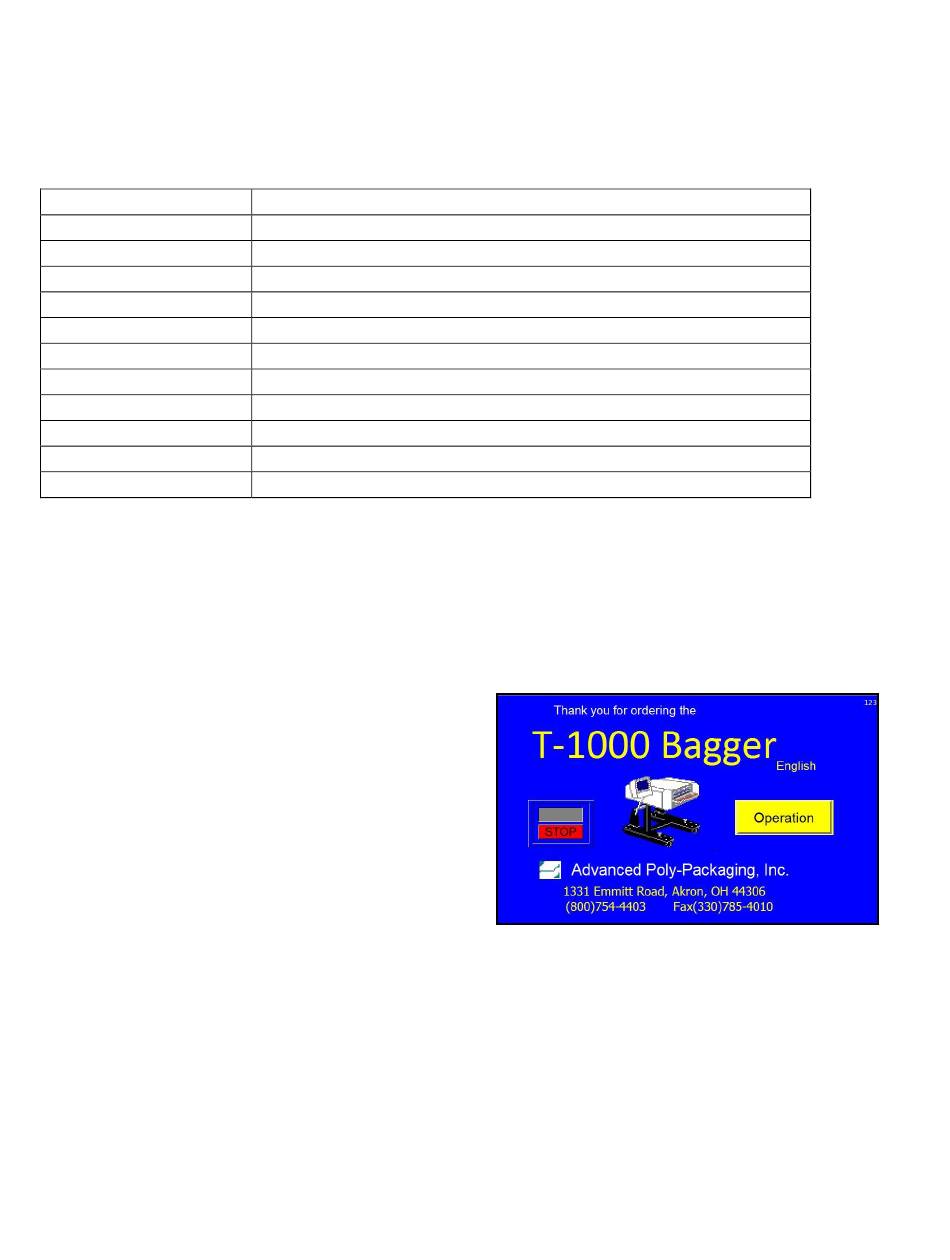

When the T-1000 is turned on, an Introductory Screen is displayed. See Figure 3 - 1. The Introduction screen is a
welcome screen, and it contains a button that will take the operator to the Operation screen. When turned on, the
machine will be in Stop mode.
27
7", 800 x 480 pixels, 65,536 TFT Colors
Real time clock, recipes, USB
65,536 colors, TFT
11.6 MB
RS232C
Free, Analog
English, Spanish, French, German, Italian, Japanese, Chinese, Korean
215 x 156 x 42 mm
White LEDs (No maintenance)
24V DC, 0.2A
IP65
CE, UL, cUL
Figure 3 - 1
