3.32 Ti-1000 Inline Printer

The Thermal Inline Transfer Printer - prints text, graphics
and bar codes, formatted in a separate software program.
The label formats are "downloaded" to the printer from a
PC.
To enable Printer operation on the Thermal Transfer (TT)
Printer, press the highlighted <Printer Ti-1000> button.

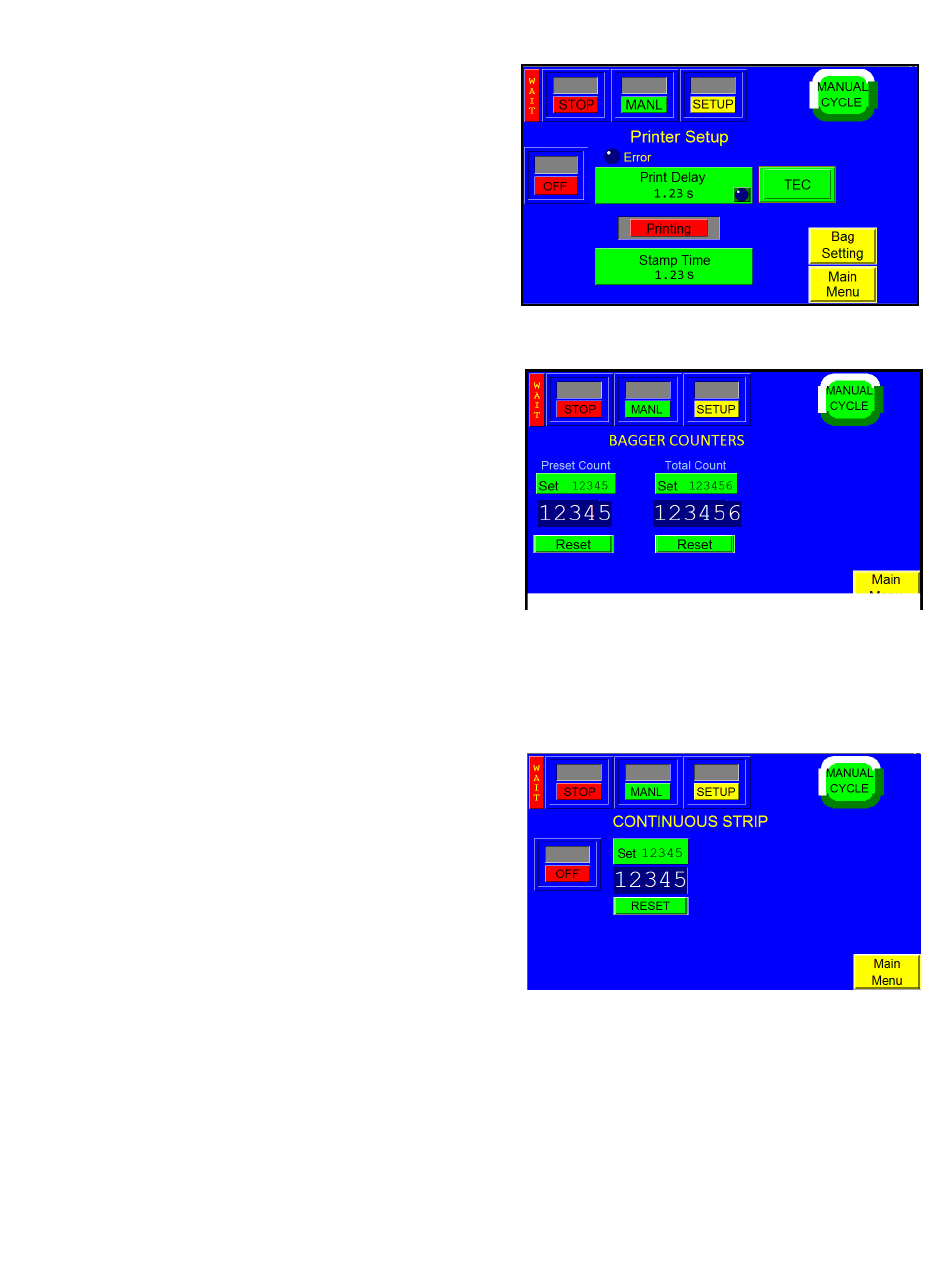

Toggle <ON> to enable operation of the printer. See Figure
3 - 31.

3.33 Counters Screen

Two internal counters are provided as a standard feature. To access the counter screen, press the <Counter>
button from the Main Menu. See Figure 3 - 32.
Totalizing Counter: To track production, use the Totalizing
Counter to count cycle operations of the machine. Press the
<Reset> button to reset the counter to zero. This counter
value is also displayed on the Operation Screen.
Preset Counter: To halt production after a preset number of
cycle operations, use the Predetermining Counter. When the
final count has been reached, a message screen will be
displayed.
Set the value by pressing the <Set> button and then type the value on the number keypad followed by the <Enter>
button. To disable the Predetermining Counter set the value to "0".

3.34 Continuous Strip Screen

Continuous Strip Counter: This option allows you to seal
bags in a strip, without separating them at the perforation. If
you set this counter value to 10, for instance, you will have a
strip of 10 bags connected. The bagger will then reverse to
separate the 11th bag. See Figure 3 - 33.
Press the <Reset> button to reset the counter to the set value.
To disable the option, set the value to zero.
Note: If you don't want the bags separated ever, you can
either set the counter value to very large number or simply
change the Reverse setting to zero in the Bag Setup Menu.
Figure 3 - 31
Figure 3 - 32
Figure 3 - 33
