Air Pulse Delay: The amount of time, in seconds, before the air pulse operation begins. This delay setting allows
the bag to get into position before blowing it open. To change this setting, press the <Air Pulse Delay> button,
enter a value on the numeric keypad and press the <ENT> button.
Brightness Control. UP & Down buttons set brightness to 4 different levels, with "1" being the brightest and "4"
being the dimmest.

3.40 Bag Registration

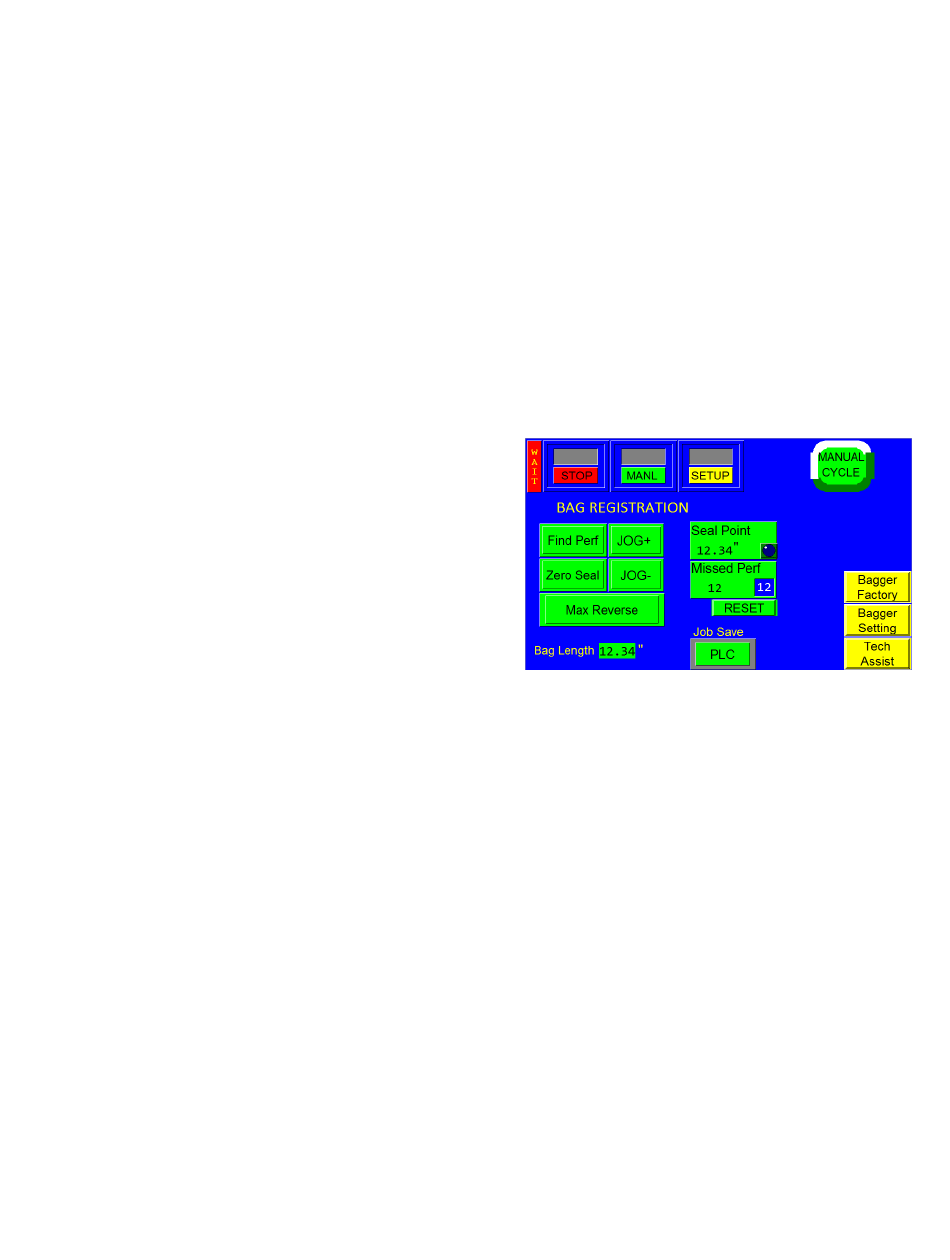

The Bag Registration screen allows the operator to set up the perforation. See Figure 3 - 41.
To determine if the seal point is registered, set the Seal Point setting to the lowest possible setting. Then press the
<Manl> cycle button or press the foot switch. The bag should move so that the perforation is approximately 1/8"
from the center of the heater bar. If the bag perforation is not approximately 1/8" from the perforation, perform
the following procedure carefully. If these steps are performed out of order, the bagger will not function properly.
Follow these steps to set up the perforation:
1. Press the <Perf Registration> button on the Bagger
Factory Settings screen. The Bag Registration screen
will be displayed.
2. Press the <Find Perf> button. The bagger will
advance until the perforation sensor finds the
perforation, and then the bag will stop.
3. Hold the <JOG+> button until the perforation moves
down to the middle of the PTFE sheet area at the
heater bar.
4. Release the <JOG+> button.
5. Push the <Zero Seal> button once.
6. Hold the <JOG-> button until the perforation moves up to just in front of the nip rollers.
7. Push the <Max Reverse> button once.
Note: If these steps are performed incorrectly, repeat from Step 1.
When complete, test the Seal Point setting by entering 0.1" and pressing the <Manual Cycle> button. The bag
should feed so that the perforation is approximately 1/8" from the center of the heater bar.
Since the procedure set the maximum reverse value as well, enter 6" in the Max Reverse setting. If equipped with
a standard frame bagger, this setting will be approximately 1.8" when the Seal Point setting is 0.1". On a drop
frame machine, the maximum setting will be approximately 2.7" when the Seal Point setting is 0.1". Press the
Manual Cycle button and ensure that the bag does not reverse too far, to drop inside the machine. After
successfully performing the above steps, the Bag Registration screen is ready for bag indexing.
Missed Perf: The maximum number of perforations the sensor can miss before operation stops and an error
message is displayed. To adjust this setting, press the <Missed Perf> button, enter the desired value on the
numeric keypad and press the <ENT> button.
47
Figure 3 - 41
