Memory Files And Data Structures - Advanced Poly-Packaging Advanced Poly-Bagger T-1000-S18H Operation Manual

<Enter> to continue or <Exit> to cancel. Touching the QTY box will access a green numeric keypad where the
operator can enter the number of products that will go into each bag. For instance, if three items go into the bag
before it is sealed, the number 3 can be entered into that field. When all the information is setup touch <Save> to
save to the External memory stick.
Note: In the Job Save screen there is a Recipe List button and an Options Settings button. When the <Recipe
List> button is pressed, the recipe list screen will be accessed. A record "REC0000" will be displayed. This is the
file created by the program which records all the activity on the bagger and where the recipe information is
stored. This information can only be viewed when the USB is plugged into a PC. To recall a job, you must type
in the name of the job and touch <Enter> in the Job Load screen. When the <Options Settings> button is pressed
all the information for that recipe is displayed. The Part, Note, and QTY information can all be changed in this
screen. If you do choose to change the information on this screen, go back to the Job Save screen and press
<Save> to ensure your changes are saved.
To recall a job from External Memory: Press Job Search from the Main Menu to access the Job Search screen.
From there either scan (if you have a bar code reader option) or enter the job name using the keypad, (accessed by

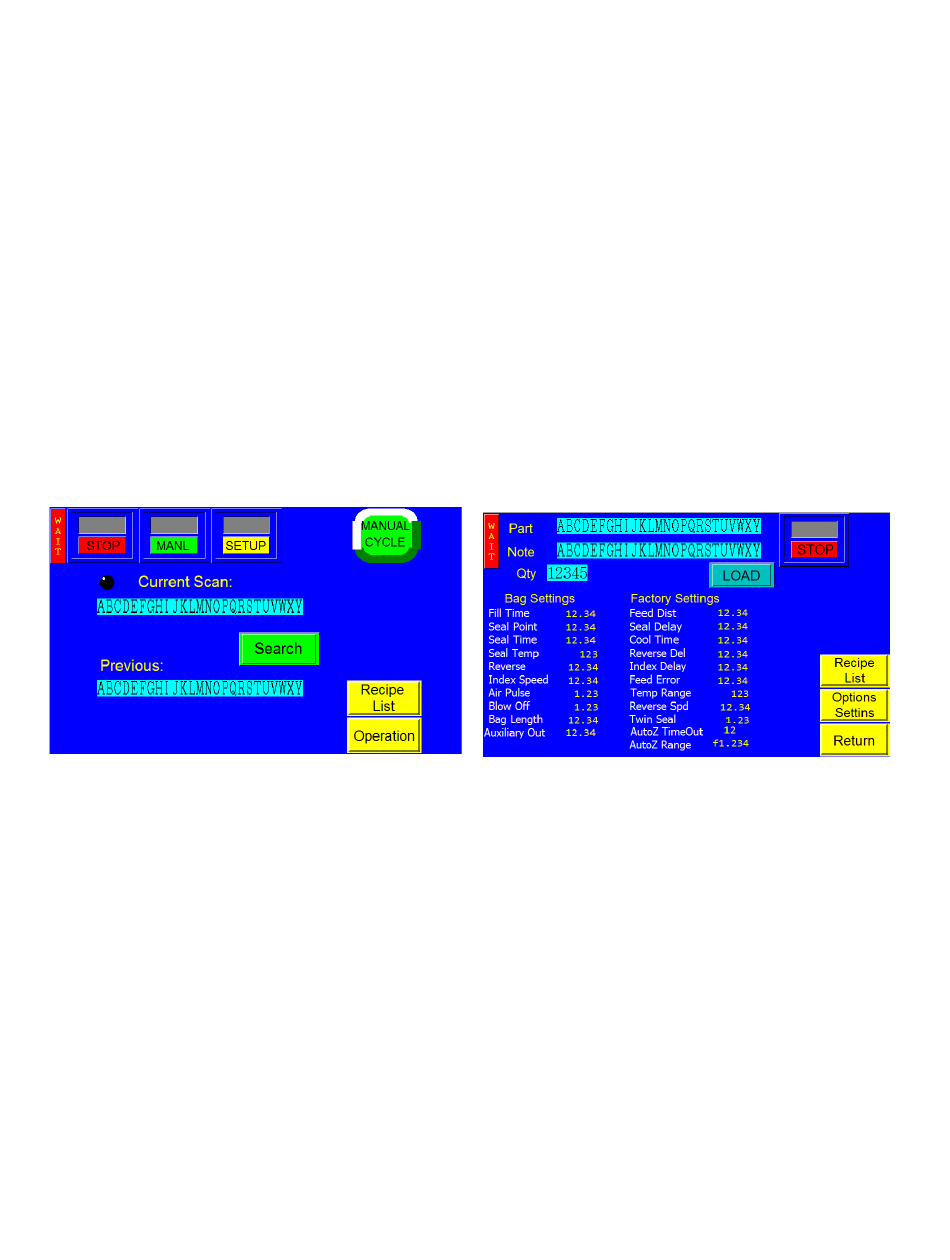

pressing the area under the heading "Current Scan") and press <Search>, see Figure 3 - 47. This will access a
screen listing all the Bag and Factory Settings for this job. Press <Load>, see Figure 3 - 48. This will take you to
the Printer Operation Screen with all the settings loaded and ready to start the job.
Figure 3 - 47

3.42 Memory Files and Data Structures

While the information related to Bagger settings may be stored internally on the PLC or externally on a USB Memory Stick
(Flash Drive) is similar in content, the data structures and methodology are different.
PLC Storage
Information regarding the settings for a particular job, such as Fill Time, Seal Temperature, and Bag Length, are
stored in the PLC as data files of various types. These data types include:
•
Integers – data type used to store whole numbers
•
Floating Point – data type used to store decimal numbers
•
Strings – an array used to store characters
These data files are stored in PLC memory and are accessible to the Ladder Logic of the PLC Program File.
See Figure 3 - 49
Figure 3 - 48
50
