3.36 Technical Assistance & Troubleshooting Screens
Technical assistance sections of the Touch Screen program
should be accessed by Specialized Personnel only and are
provided for troubleshooting and advanced setup by
Qualified Service Engineers.
The Technical Assistance screen provides manufacturer
information, factory settings adjustments and functions
testing and troubleshooting. It also displays program version
for PLC controller and touch screen. See Figure 3 - 35.
The screen is protected from access with a Level 1 pass
code. The pass code is set by default (from the factory) to
1001. See Figure 3 - 37. This code can and should be changed when the system is put into operation. See
section 3.37 for "Pass Code Setup".
Several menu options are available from the Tech Assist. Menu which will assist with troubleshooting the T-1000-
S14 and change settings that affect the operation of the equipment.
3.37 Bagger Auxiliary Options
Auxiliary communication is provided by closed contact
signaling. Additional cabling may be required which will
transfer the signals between the machines in the system.
See Figure 3 - 36.
Auxiliary settings are displayed on this screen but must be
change in the Technical Assistance / Aux Setup screen.
The auxiliary signal mode will depend on the type of
equipment connected.
3.38 Pass Code Setup Screen
Advanced Poly-Packaging, Inc. (APPI) has included a pass code function in all touch screen equipment to prevent
operators from changing settings.
There are two pass code levels described as follows:
1. Level 1: This is the highest-level pass code which
prevents operators from accessing the Technical
Assistance functions of the machine. The default pass
code, when shipped from the factory, is 1001. See
Figure 3 - 37.

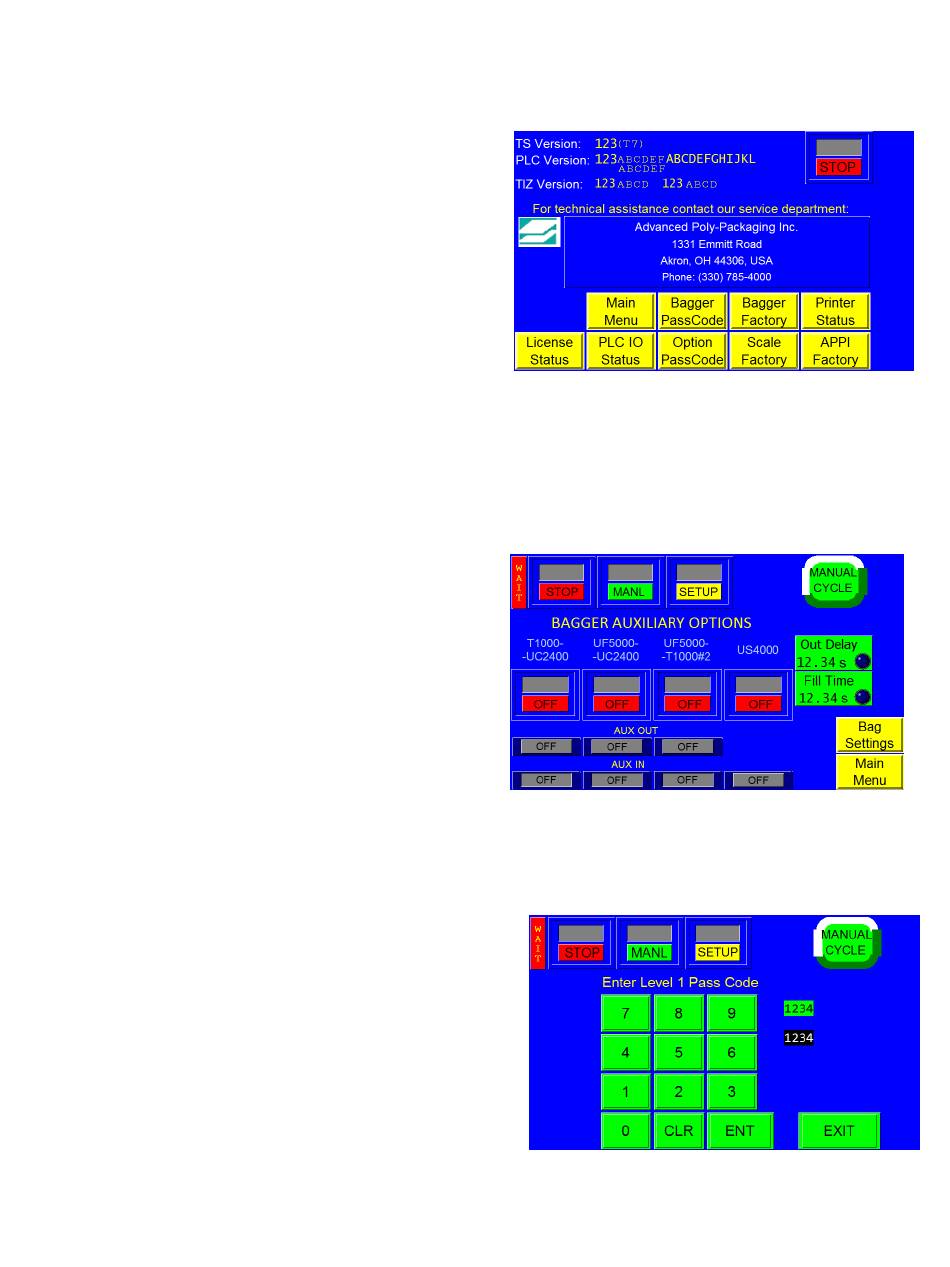

Figure 3 - 35
Figure 3 - 36
Figure 3 - 37
