Bar applying heat. If 'Cool Time' is used, Total Time is 'Seal Time' plus 'Cool Time'. Add 'Total Time' on 'Seal
Validation' screen and use it for validation.
Range: When the range is set, it allows a variance (+/- seconds) from the set seal time.
3. Seal Pressure: a pressure sensor was added with an alarm output that alarms when the pressure falls out of the
set range in the pressure sensor.
Typically, medical companies require seal validation as a secondary means to detect out of range conditions are to
stop the operation when the condition exists. A Message will be displayed if any of the three validation
components are out of range. The Pressure Sensor may also be added to the T-1000 to validate only pressure,
without adding the other two components. For application requiring this validation only, the bagger will not
operate unless the sensor provides an output indicated that the pressure is above a minimum allowable setting.

3.28 Medical Flat Seal

This flat seal option has added Fill Time and Seal Delay

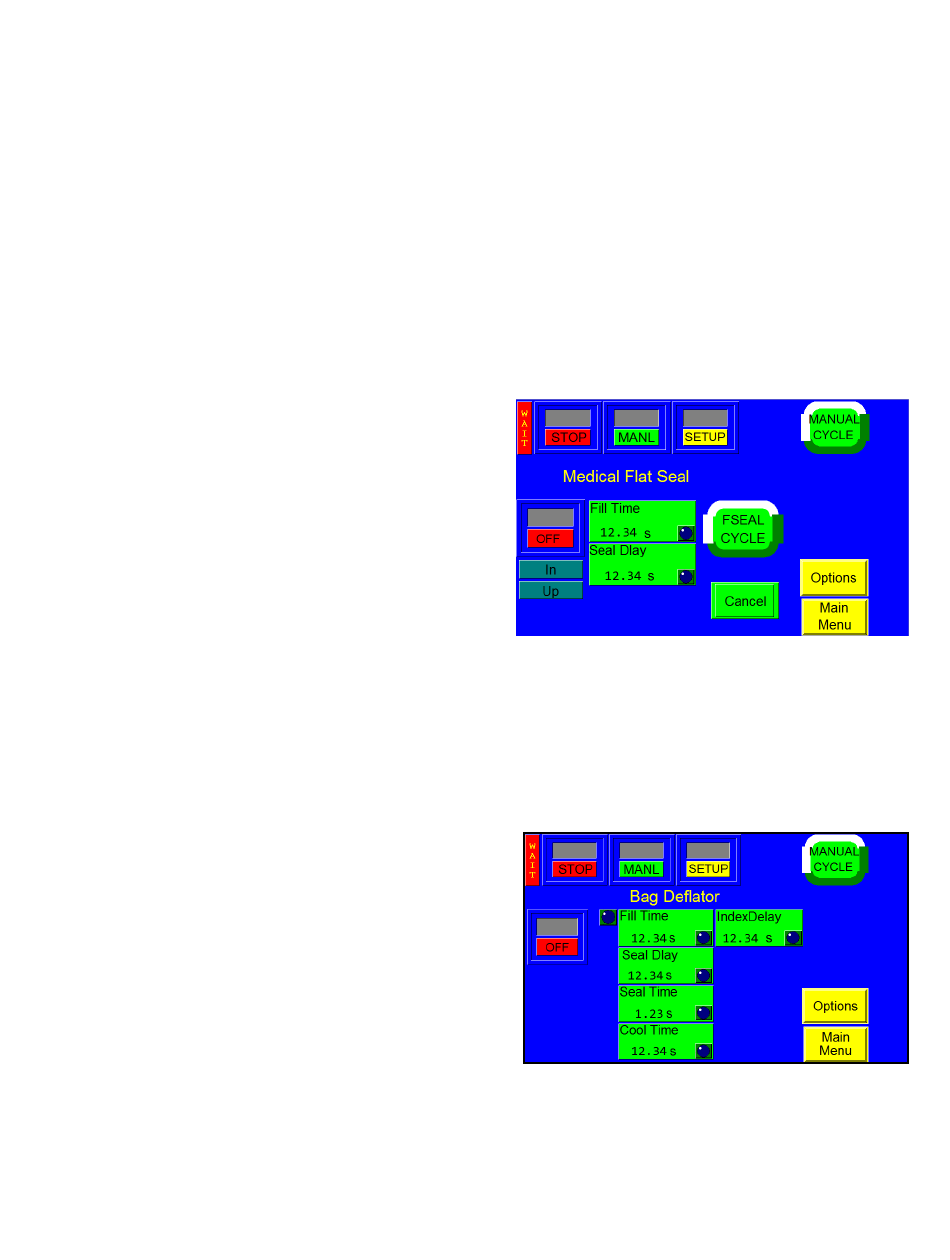

functions to adhere to medical specifications. See Figure 3 -
28.
On / Off turns the feature on or off.
<In / Up> changes to <Out / Down> depending on the
position of the fingers.
Fill Time: The amount of time, in seconds, before the
bagger begins to seal the bag after the accumulating funnel
door has closed.
Figure 3 - 28
Seal Delay: The amount of time, in seconds, before the seal
operation begins after the air is turned off. This delay setting allows air to escape the bag. To change this setting,
press the <Seal Delay> button, enter a value on the numeric keypad and press the <ENT> button.
FSEAL CYCLE: Cycles the flat seal fingers.
Cancel: Pressing <Cancel> will reset the cycle.
3.29 BF-10 Bag Deflator
To press the air from the bag, a pneumatic bag deflator can
be fitted. Several timers are provided to change the sequence
of operation. Toggle the option ON and adjust the Seal Delay
settings to cause the bag deflator to cycle prior to the seal
bar. See Figure 3 - 29.
Fill Time: The amount of time, in seconds, before the
bagger begins to seal the bag after the accumulating funnel
door has closed.
Seal Delay: The amount of time, in seconds, before the seal
Figure 3 - 29
operation begins after the air is turned off. This delay setting
allows air to escape the bag. To change this setting, press the <Seal Delay> button, enter a value on the numeric
keypad and press the <ENT> button.
