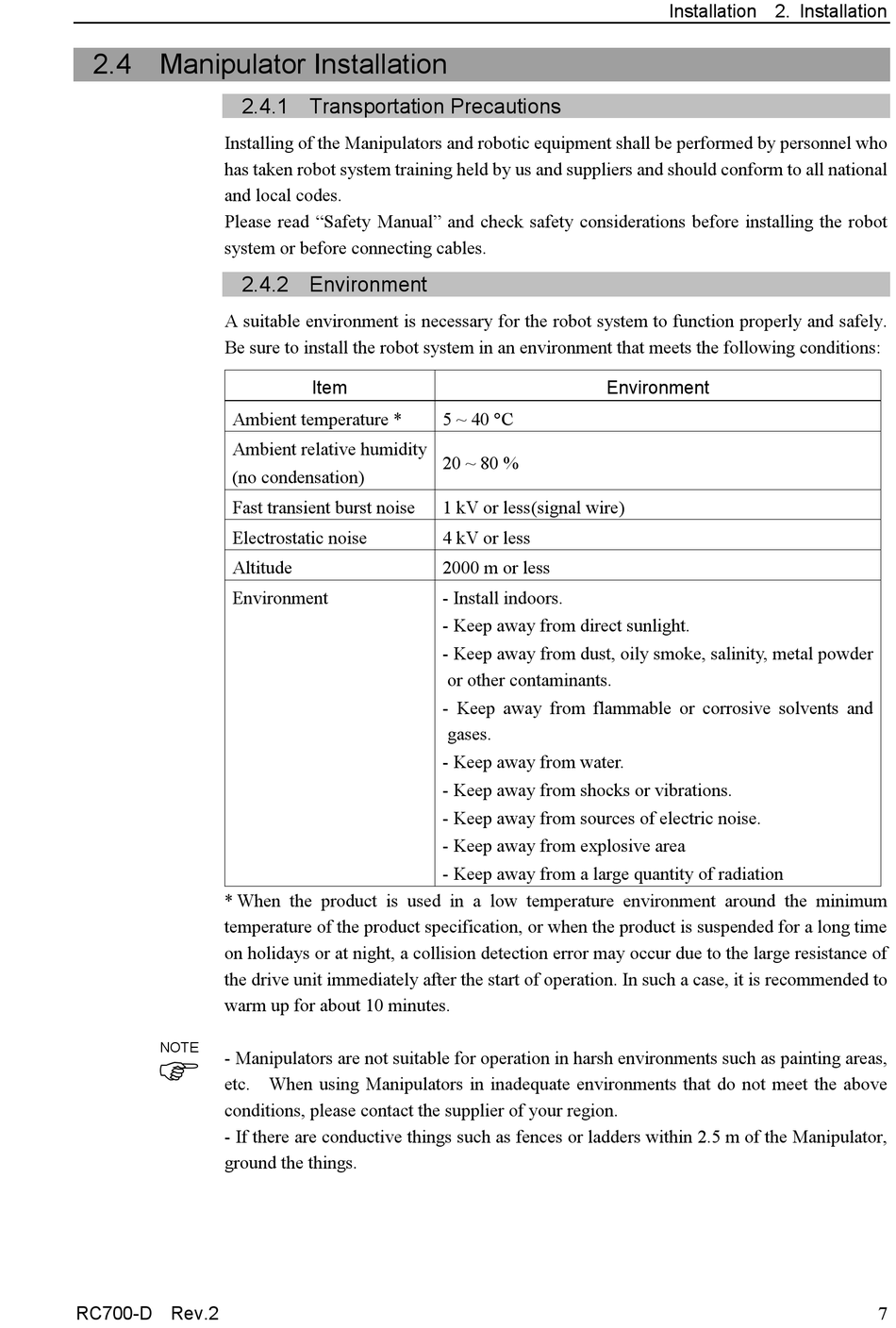

2.4 Manipulator Installation
2.4.1 Transportation Precautions
Installing of the Manipulators and robotic equipment shall be performed by personnel who
has taken robot system training held by us and suppliers and should conform to all national
and local codes.
Please read "Safety Manual" and check safety considerations before installing the robot
system or before connecting cables.
2.4.2 Environment
A suitable environment is necessary for the robot system to function properly and safely.
Be sure to install the robot system in an environment that meets the following conditions:
Ambient temperature *
Ambient relative humidity
(no condensation)
Fast transient burst noise
Electrostatic noise
Altitude
Environment
* When the product is used in a low temperature environment around the minimum
temperature of the product specification, or when the product is suspended for a long time
on holidays or at night, a collision detection error may occur due to the large resistance of
the drive unit immediately after the start of operation. In such a case, it is recommended to
warm up for about 10 minutes.
NOTE
- Manipulators are not suitable for operation in harsh environments such as painting areas,
etc. When using Manipulators in inadequate environments that do not meet the above
conditions, please contact the supplier of your region.
- If there are conductive things such as fences or ladders within 2.5 m of the Manipulator,
ground the things.
RC700-D Rev.2
Item
5 ~ 40 °C
20 ~ 80 %
1 kV or less (signal wire)
4 kV or less
2000 m or less
- Install indoors.
- Keep away from direct sunlight.
- Keep away from dust, oily smoke, salinity, metal powder
or other contaminants.
- Keep away from flammable or corrosive solvents and
gases.
- Keep away from water.
- Keep away from shocks or vibrations.
- Keep away from sources of electric noise.
- Keep away from explosive area
- Keep away from a large quantity of radiation
Installation 2. Installation
Environment
7
