Heartland VALUE Series Assembly Manual

Hide thumbs Also See for VALUE Series:

Advertisement

Quick Links

Download this manual
For questions on assembly or for general inquiries, you may contact us in the following ways:
Call a Recruiter Today! 734-365-7000
Flexible schedule
*based on number of completed installations
Call Us First!
DO NOT RETURN TO STORE.
Call customer service: 1-800-577-9663
AVOID THE WAIT!
visit us online at
help.backyardproducts.com
Submit a help request
Answers to frequently asked questions
Live chat with an agent
Did you enjoy building your shed?
JOIN OUR TEAM
AND MAKE UP TO $1,500/WEEK*
No selling,
just building
Bonus incentives
available
16568

Advertisement

loading

Related Manuals for Heartland VALUE Series

Summary of Contents for Heartland VALUE Series

  • Page 1 16568 Call Us First! DO NOT RETURN TO STORE. For questions on assembly or for general inquiries, you may contact us in the following ways: Call customer service: 1-800-577-9663 AVOID THE WAIT! visit us online at help.backyardproducts.com Submit a help request Answers to frequently asked questions Live chat with an agent Did you enjoy building your shed?
  • Page 2 Win $500 A new winner is selected every 2 months. Review your product for the chance to win a $500 Visa Gift Card. Open camera. How to Enter: Aim. Tap. Scan Click Find your product. Submit your review. QR code above. ‘write a review’...

  • Page 3: Assembly Manual

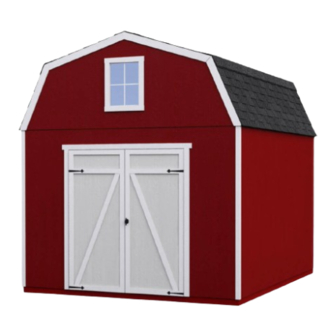

    16568 06/25/2021 ASSEMBLY MANUAL VALUE SERIES CLASSIC 10' x 10' (304,8 x 304,8 cm) BUILDING SIZE ACTUAL FLOOR SIZE 10' x 10' (304,8 x 304,8 cm) 10' x 10' (304,8 x 304,8 cm) BASE MODEL 10' x 14' (304,8 x 426,7 cm)
  • Page 4 TOOLS Required Optional ❑ Phillips ❑ Tool Belt/ ❑ Utility Knife Screwdriver Nail Pouch ❑ Shingle Blades ❑ Drill / Driver ❑ Tin Snips ❑ 3/8" Drill Bit ❑ Caulk Gun (for drip edge) ❑ #2 Philips Drive Bit ❑ Chalk Line ❑...

  • Page 5: Additional Materials

    ADDITIONAL MATERIALS FOUNDATION OR FLOOR MATERIALS • This shed does not include any floor or leveling materials. • See the FLOOR LEVELING section on page 10 for recommended methods and suggested materials to properly level your floor, as this will vary depending on your specific site. REINFORCED WOOD FLOOR FRAME (OPTIONAL) IMPORTANT! Depending on your specific use you may want to construct a heavy duty floor frame by adding additional floor joists (shown below as shaded).

  • Page 6: Optional Materials

    ADDITIONAL MATERIALS COMPLETING YOUR SHED You will need these additional materials: 10x10' 10x14' 10x18' 10x10' 10x14' 10x18' Paint for trim/Quart 3-TAB SHINGLES (Bundles)..Use 100% acrylic latex exterior paint. PAINT FOR SIDING (Gallons)..Caulk Tubes ... Use 100% acrylic latex exterior paint. Use acrylic paintable (2) coats recommended.
  • Page 7 PARTS IDENTIFICATION AND SIZES Double letter part identification WOOD SIZE CONVERSION CHART is stamped on some parts. Nominal Board Size Actual Size 2 x 4 ....1-1/2" x 3-1/2" (3,8 x 8,9 cm) 1 x 4 ....3/4" x 3-1/2" (1,9 x 8,9 cm) •...
  • Page 8 PANEL & DOORS PARTS LIST NOTE: Panel parts are not stamped with part identification. SQUARE SQUARE SQUARE EDGE EDGE EDGE LIP EDGE Left Right 3/8 x 48 x 84" 3/8 x 23-7/8 x 84" (1 x 121,9 x 213,4 cm) (1 x 121,9 x 213,4 cm) 3/8"...
  • Page 9 NAIL BOXES (Shown Actual Size) 3" (7,6 cm) BOXES 2" (5,1 cm) BOXES FASTENER/HARDWARE BAG (Shown Actual Size) 2" (5,1 cm) x200 x110 1-1/2" (3,8 cm) 3" (7,6 cm) 2" (5,1 cm) 1-1/4" (3,2 cm) NOTE: If you are using a nail gun, nails 3/4"...
  • Page 10 GAMBREL EXTENDER KIT PARTS LIST Inventory your parts before you begin. We suggest sorting parts by the category they are listed in. Part identification WOOD SIZE CONVERSION CHART Nominal Board Size Actual Size is stamped on some parts. 2 x 4 ....1-1/2" x 3-1/2" (3,8 x 8,9 cm) 1 x 4 ....3/4"...
  • Page 11 CONCRETE FOUNDATION If you choose to install your kit on a concrete slab refer to the diagram below. Attach the sill plates on the foundaton as shown, and continue on to page 14. Treated Sill Plate Caulk between sill plate and concrete.
  • Page 12 OPTIONAL WOOD FRAME FLOOR LEVELING OPTIONS There are multiple ways to level your floor frame. Our recommended leveling method is shown below. Leveling materials are not included in this kit. PREFERRED METHOD - 4x4 TREATED RUNNERS (Typical for 10' x 10' Kit) Runners are generally 12"...
  • Page 13 LEVELING & SQUARING THE FLOOR FRAME (Not Included) LEVEL AND SQUARE FLOOR FRAME Before attaching floor decking, it is important to level and square the floor frame. A level and square floor frame is required to correctly construct your shed. See page 10 for the preferred foor leveling method.
  • Page 14 IMPORTANT! I M P O R T A N T ! NOTE: 10' x 10' Gambrel shown standard throughout manual Ensure the foor frame is level after installing foor panels. Re-level if needed. • The foor should used as a stable work surface for wall construction. •...
  • Page 15 WALL INDEX 10' x 10' After assembling the walls for your 10' x 10' shed, go to page 26 for wall installation. 10' x 10' Wall 01: Page 16 Wall 02: Page 18 Wall 03: Page 20 (Build 2 eave walls) 10' x 14' After assembling the walls for your 10' x 14' shed, go to page 31 for wall installation.

  • Page 16: Parts Required

    DOOR HEADER Assemble this door header before building any walls! PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 67" (5,1 x 10,2 x 170,2 cm) 7/16 x 3-1/4 x 66-3/4" (1,1 x 8,3 x 170,2 cm) BEGIN Place (1) AM and OSB end-to-end on flat surface, flush in middle. Center OSB on top of AM.
  • Page 17 WALL PANEL INSTALLATION HINTS & EXAMPLES PARTS REQUIRED: 2" (5,1 cm) 2x3" TEMP. SPACER 3/4" GAUGE BLOCK 3/8 x 48 x 84" (1 x 121,9 x 213,4 cm ) Ensure your wall is square by installing one panel and squaring frame. Install all wall panels with the primed side facing up.
  • Page 18 GABLE WALL 01 WITH DOOR PARTS REQUIRED: 2 x 4 x 7" (5,1 x 10,2 x 17,8 cm) 3" (7,6 cm) x2 SL 2 x 4 x 36" (5,1 x 10,2 x 91,4 cm) 3" (7,6 cm) 2 x 4 x 68" (5,1 x 10,2 x 172,7 cm) 2 x 4 x 78-1/2"...
  • Page 19 GABLE WALL 01 WITH DOOR PARTS REQUIRED: 3" (7,6 cm) x154 2" (5,1 cm) 11-7/8" x 84" (30,2 x 213,4 cm) Temporary Brace 69" (75,3 cm) Door Stiffener Install the left panel 1-1/2" 1-1/2" from the top plate. (3,8 cm) Flush 3/4"...
  • Page 20 GABLE WALL 02 PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 24" (5,1 x 10,2 x 61 cm) 2 x 4 x 78-1/2" (5,1 x 10,2 x 199,4 cm) 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm) BEGIN Orient parts on edge on floor as shown.
  • Page 21 GABLE WALL 02 PARTS REQUIRED: x136 2" (5,1 cm) 48 x 84" 23-7/8" x 84" (121,9 x 213,4 cm ) (60,6 x 213,4 cm ) 1-1/2" (3,8 cm) 3/4" BEGIN HERE (1,9 cm) Install 48" x 84" panel 1-1/2" from the top plate. Use a 2x3 spacer for consistent measurement.
  • Page 22 10' EAVE WALL 03 PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 44-1/2" (5,1 x 10,2 x 113 cm) 2 x 4 x 68-1/2" (5,1 x 10,2 x 174 cm) 2 x 4 x 78-1/2" (5,1 x 10,2 x 199,4 cm) Build two identical walls.
  • Page 23 10' EAVE WALL 03 PARTS REQUIRED: x212 2" (5,1 cm) 48 x 84" 23-7/8" x 84" (121,9 x 213,4 cm ) (60,6 x 213,4 cm ) 3/4" BEGIN HERE (1,9 cm) 3-1/2" Install 48" x 84" panel (8,9 cm) 1-1/2" from the top plate. 1-1/2"...
  • Page 24 14' EAVE WALL 04 PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 44-1/2" (5,1 x 10,2 x 113 cm) 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm) 2 x 4 x 78-1/2" (5,1 x 10,2 x 199,4 cm) 2 x 4 x 68-1/2"...
  • Page 25 14' EAVE WALL 04 PARTS REQUIRED: x312 2" (5,1 cm) 23-7/8" x 84" (60,6 x 213,4 cm ) 48 x 84" (121,9 x 213,4 cm ) Install (1) 48" x 84" panel 1-1/2" from 3/4" BEGIN HERE (1,9 cm) the top plate. 1-1/2"...
  • Page 26 18' EAVE WALL 05 PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 44-1/2" (5,1 x 10,2 x 113 cm) 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm) 2 x 4 x 68-1/2" (5,1 x 10,2 x 174 cm) 2 x 4 x 78-1/2"...
  • Page 27 18' WALL EAVE 05 PARTS REQUIRED: x206 2" (5,1 cm) 23-7/8" x 84" (60,6 x 213,4 cm ) 48 x 84" (121,9 x 213,4 cm ) Install (1) 48" x 84" panel 1-1/2" from 3/4" BEGIN HERE (1,9 cm) the top plate. 1-1/2"...
  • Page 28 STANDING YOUR WALLS The following steps show how to stand and secure your walls for a 10' x 10' shed. For a 10' x 14' shed, start on page 32. For a 10' x 18' shed, start on page 38.
  • Page 29 10' GABLE WALL 02 INSTALLATION PARTS REQUIRED: 3" (7,6 cm) 69" (175,3 cm) Door Stiffener 3" (7,6 cm) 2" (5,1 cm) BEGIN 1-1/2" (3,8 cm) Center 10' wall on the 120" (304,8 cm) floor dimension. 1-1/2" (3,8 cm) overlap is to the top. Use OO as a temporary brace.
  • Page 30 1st 10' EAVE WALL INSTALLATION PARTS REQUIRED 2" (5,1 cm) 3" (7,6 cm) 2" (5,1 cm) 1-1/2" (3,8 cm) 3" (7,6 cm) BEGIN Fig. B Place 10' eave wall centered on floor. 1-1/2" (3,8 cm) overlap is to the top. 2"...
  • Page 31 2nd 10' EAVE WALL INSTALLATION PARTS REQUIRED: 2" (5,1 cm) 3" (7,6 cm) 2" (5,1 cm) 3" (7,6 cm) 1-1/2" (3,8 cm) Fig. B BEGIN 1-1/2" (3,8 cm) Remove temporary brace OO from installed 10' gable wall. Place 2nd 10' eave wall centered on floor 2"...
  • Page 32 10' GABLE WALL INSTALLATION PARTS REQUIRED 2" (5,1 cm) 3" (7,6 cm) 2" (5,1 cm) 1-1/2" (3,8 cm) 3" (7,6 cm) Fig. B BEGIN 2" (5,1 cm) Place 10' gable wall on floor centered between Screw installed' walls. Secure wall with 2" screws into top and bottom plates (Fig.
  • Page 33 10' x 10' WALL DOUBLERS INSTALLATION PARTS REQUIRED: 3" (7,6 cm) x2 RL x2 JBD 2 x 4 x 24" (5,1 x 10,2 x 61 cm) 2 x 4 x 20-3/8" (5,1 x 10,2 x 51,8 cm) 3" (7,6 cm) 2 x 4 x 92-5/8"...
  • Page 34 10' GABLE WALL 02 INSTALLATION PARTS REQUIRED: 3" (7,6 cm) 69" (175,3 cm) Door Stiffener 3" (7,6 cm) 2" (5,1 cm) BEGIN 1-1/2" (3,8 cm) Center 10' wall on the 120" (304,8 cm) floor dimension. 1-1/2" (3,8 cm) overlap is to the top. 3"...
  • Page 35 1st 14' EAVE WALL INSTALLATION PARTS REQUIRED 2" (5,1 cm) 3" (7,6 cm) Temporary Brace 1-1/2" (3,8 cm) 2 x 4 x 92-5/8" (5,1 x 10,2 x 235 cm) 2" (5,1 cm) 3" (7,6 cm) BEGIN Fig. B Place 1st 14' eave wall centered on floor. The 1-1/2"...
  • Page 36 2nd 14' EAVE WALL INSTALLATION PARTS REQUIRED: 2" (5,1 cm) 3" (7,6 cm) Temporary Brace 2 x 4 x 92-5/8" (5,1 x 10,2 x 235 cm) 1-1/2" BEGIN (3,8 cm) Remove temporary brace OO from installed 10' wall. Place 2nd 14' wall centered on floor. 3"...
  • Page 37 2nd 14' EAVE WALL INSTALLATION PARTS REQUIRED: 3" (7,6 cm) 2" (5,1 cm) 3" (7,6 cm) 1-1/2" (3,8 cm) Nail lower edge of wall panels to floor frame with 2" nails spaced 6" apart. Angle nails into floor frame (Fig. C). Secure wall bottom plates to floor 3"...
  • Page 38 10' GABLE WALL INSTALLATION PARTS REQUIRED 2" (5,1 cm) 3" (7,6 cm) 2" (5,1 cm) 1-1/2" (3,8 cm) 3" (7,6 cm) Fig. B BEGIN 2" (5,1 cm) Place 10' gable wall on floor centered between Screw installed' walls. Secure wall with 2" screws into top and bottom plates (Fig.
  • Page 39 10' x 14' WALL DOUBLERS INSTALLATION PARTS REQUIRED: 3" (7,6 cm) x2 JBD 2 x 4 x 20-3/8" (5,1 x 10,2 x 51,8 cm) 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm) 3" (7,6 cm) 2 x 4 x 92-5/8" (5,1 x 10,2 x 235 cm) x2 RL 2 x 4 x 96"...
  • Page 40 10' GABLE WALL INSTALLATION PARTS REQUIRED: 3" (7,6 cm) 69" (175,3 cm) Door Stiffener 3" (7,6 cm) 2" (5,1 cm) 1-1/2" BEGIN (3,8 cm) Center 10' wall on the 120" (304,8 cm) floor dimension. 1-1/2" (3,8 cm) overlap is to the top. 3"...
  • Page 41 18' EAVE WALL INSTALLATION PARTS REQUIRED 2" (5,1 cm) 3" (7,6 cm) Temporary Brace 1-1/2" (3,8 cm) 2 x 4 x 92-5/8" (5,1 x 10,2 x 235 cm) 2" (5,1 cm) 3" (7,6 cm) Fig. B BEGIN Place 1st 18' eave wall centered on floor. 2"...
  • Page 42 18' EAVE WALL INSTALLATION PARTS REQUIRED: 2" (5,1 cm) 3" (7,6 cm) 2" (5,1 cm) 3" (7,6 cm) Temporary Brace 1-1/2" (3,8 cm) 2 x 4 x 92-5/8" (5,1 x 10,2 x 235 cm) 2" (5,1 cm) 1-1/2" BEGIN (3,8 cm) Fig.
  • Page 43 10' GABLE WALL INSTALLATION PARTS REQUIRED 2" (5,1 cm) 3" (7,6 cm) 2" (5,1 cm) 3" (7,6 cm) 1-1/2" (3,8 cm) Fig. B BEGIN 2" (5,1 cm) Place 10' gable wall on floor centered Screw between installed walls. Secure wall with 2" screws into top and bottom plates (Fig.
  • Page 44 10' x 18' WALL DOUBLERS INSTALLATION PARTS REQUIRED: x2 JBD 3" (7,6 cm) 2 x 4 x 20-3/8" (5,1 x 10,2 x 51,8 cm) 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm) 3" (7,6 cm) 2 x 4 x 92-5/8" (5,1 x 10,2 x 235 cm) x2 RL 2 x 4 x 96"...
  • Page 45 RAFTERS 10x10' 10x14' 10x18' PARTS REQUIRED: 3" (7,6 cm) 6 x 24" (15,2 x 60,9 cm) x1 RL Temporary Support 2 x 4 x 24" (5,1 x 10,2 x 61 cm) Pre-assembled x216 x120 x168 2" (5,1 cm) Build (2) rafter assemblies with(1) gusset (Fig. B). BEGIN HINT: Use floor and walls to help...
  • Page 46 10x18' 10x10' 10x14' RAFTER INSTALLATION PARTS REQUIRED: Page 44 Two-Gusset Preassembled One-Gusset Preassembled 3" (7,6 cm) BEGIN Align rafters over the wall studs. Check that you have the measurements shown. Secure rafters with (2) 3" screws angled at each end (Fig. A, Fig. B). Secure rafters on opposite side.
  • Page 47 10x18' RAFTER INSTALLATION PARTS REQUIRED: Two-Gusset Preassembled One-Gusset Preassembled 3" (7,6 cm) BEGIN Align rafters over the wall studs. Check that you have the measurements shown. Secure rafters with (2) 3" screws angled at each end (Fig. A, Fig. B). Secure rafters on opposite side.
  • Page 48 GABLE PANELS PARTS REQUIRED: 1-1/2" (3,8cm) x4 QL 2 x 4 x 39" (5,1 x 10,2 x 99,1 cm) Install gable panels with the primed side facing up. BEGIN Orient parts QL on the flat side, as shown. Measure and mark the center of the middle gable panel. Secure with 1-1/2" nails spaced 6" apart along edge. Place end panels on QL flush to installed panel and secure with 1-1/2"...
  • Page 49 GABLE INSTALLATION PARTS REQUIRED: 3" (7,6 cm) x114 2" (5,1 cm) Pre - assembled BEGIN Measure 2-9/16" down from top plate doubler and mark at each side as shown. Set gable unit on top plate. Fasten with (1) 2" nail on each side. BE SURE GABLE IS CENTERED ON WALL BEFORE NAILING.
  • Page 50 10' x 10' ROOF PANELS PARTS REQUIRED: 2" (5,1 cm) 3/4" GAUGE BLOCK 7/16 x 48 x 96" (1,1 x 121,9 x 243,8 cm) Roof panels may cause serious injury until securely fastened. Note: Install all roof panels with the rough side up (painted grid lines). BEGIN Flush at Place the 48"...
  • Page 51 10' x 10' ROOF PANELS PARTS REQUIRED: 2" (5,1 cm) 7/16 x 23-7/8 x 48" (1,1 x 60,6 x 121,9 cm) Flush at Install a 23-7/8" x 48" roof panel flush to the peak installed panel and flush at peak (Fig. B). Fig.
  • Page 52 10' x 10' ROOF PANELS PARTS REQUIRED: 2" (5,1 cm) 23-7/8" x 96" 23-7/8" x 24" (60,6 x 243,8 cm) (60,6 x 61 cm) 3/4" GAUGE BLOCK 11-7/8" x 24" 11-7/8" x 96" (30,2 cm x 243,8 cm) (30,2 x 61 cm) Next, install 23-7/8"...
  • Page 53 10' x 10' ROOF PANELS PARTS REQUIRED: x166 2" (5,1 cm) Secure all roof panels with 2" nails spaced 6" apart and 12" apart inside of the upper panels. 6" (15,2 cm) Repeat all steps to install roof panels on the opposite side. FINISH Your roof panels are now installed.
  • Page 54 10' x 14' ROOF PANELS PARTS REQUIRED: 2" (5,1 cm) 3/4" GAUGE BLOCK 48 x 96" (121,9 x 243,8 cm) Roof panels may cause serious injury until securely fastened. Note: Install all roof panels with the rough side up (painted grid lines). BEGIN Flush at peak...
  • Page 55 10' x 14' ROOF PANELS PARTS REQUIRED: 2" (5,1 cm) 47-7/8 x 48" 23-7/8 x 48" (121,6 x 121,9 cm) (121,6 x 121,9 cm) Flush at 1/2" peak Install 47-7/8" x 48" roof panel (1,2 cm) flush to the installed panel and Fig.
  • Page 56 10' x 14' ROOF PANELS PARTS REQUIRED: 2" (5,1 cm) 23-7/8" x 48" 23-7/8" x 96" 23-7/8" x 24" (60,6 x 121,9 cm) (60,6 x 243,8 cm) (60,6 x 61 cm) 3/4" GAUGE BLOCK 11-7/8" x 24" 11-7/8" x 48" 11-7/8"...
  • Page 57 10' x 14' ROOF PANELS PARTS REQUIRED: x238 2" (5,1 cm) Secure all roof panels with 2" nails spaced 6" apart and 12" apart inside panels. 6" (15,2 cm) Repeat all steps to install roof panels on the opposite side. FINISH Your roof panels are now installed.
  • Page 58 10' x 18' ROOF PANELS PARTS REQUIRED: 2" (5,1 cm) 48 x 96" 3/4" GAUGE (121,9 x 243,8 cm) BLOCK Roof panels may cause serious injury until securely fastened. Note: Install all roof panels with the rough side up (painted grid lines). BEGIN Flush at peak...
  • Page 59 10' x 14' ROOF PANELS PARTS REQUIRED: 2" (5,1 cm) 3/4" GAUGE 47-7/8 x 48" 23-7/8 x 48" BLOCK (121,6 x 121,9 cm) (121,6 x 121,9 cm) 1/2" (1,2 cm) Flush at peak Fig. C Install 23-7/8" x 48" roof panel flush to the installed panel and Fig.
  • Page 60 10' x 14' ROOF PANELS PARTS REQUIRED: 2" (5,1 cm) 23-7/8" x 48" 23-7/8" x 96" 23-7/8" x 24" (60,6 x 121,9 cm) (60,6 x 243,8 cm) (60,6 x 61 cm) 3/4" GAUGE BLOCK 11-7/8" x 24" 11-7/8" x 48" 11-7/8"...
  • Page 61 10' x 14' ROOF PANELS PARTS REQUIRED: x314 2" (5,1 cm) Secure all roof panels with 2" nails spaced 6" apart and 12" apart inside panels. 6" (15,2 cm) Repeat all steps to install roof panels on the opposite side. We suggest installing the 2nd set of panels in the configuration shown (Fig.
  • Page 62 GABLE TRIM PARTS REQUIRED: 2" (5,1 cm) 5/8 x 4 x 48-5/16 5/8 x 4 x 36" (1,6 x 10 x 123 cm) (1,6 x 10 x 91 cm) 5/8 x 4 x 48-5/16 5/8 x 4 x 36" (1,6 x 10 x 123 cm) (1,6 x 10 x 91 cm) BEGIN Install upper gable trim ZQR and ZQL flush to top of roof panels and flush at peak.
  • Page 63 CORNER TRIM PARTS REQUIRED: 2" (5,1 cm) 3/8" x 1-3/4" x 83-1/4" (1 x 4,5 x 211,5 cm) BEGIN Install gable end 83-1/4" corner trim under gable panel, (Fig. A) and flush to eave wall panel (Fig. B). Secure with 2" finishing nails spaced evenly. Install eave side 83-1/4"...
  • Page 64 10x10' 10x14' 10x18' COLLAR TIE INSTALLATION PARTS REQUIRED: 2 x 4 x 72" (5,1 x 10,2 x 182,9 cm) 3" (7,6 cm) BEGIN Install collar tie to the rafter with (3) 3" nails at each end Fig. A (Fig. A). Flush to roof Starting at the wall with the door, install first panel...
  • Page 65 LOFT JOISTS PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 24" (5,1 x 10,2 x 61 cm) 7/16" (11 mm) Drill Bit 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm) ¸ BEGIN Orient parts TP and RL on a flat surface. Hold parts TP and RL flush and aligned.
  • Page 66 LOFT JOIST INSTALLATION PARTS REQUIRED: 3" (7,6 cm) 2 x 3 x 23-7/8" (5,1 x 7,6 x 60,6 cm) 5-1/2" (14 cm) Hex bolt, 2 washers and locknut 2 x 3 x 96" (5,1 x 7,6 x 243,8 cm) LOFT JOIST ASSEMBLY ¸...
  • Page 67 LOFT PANELS PARTS REQUIRED: 2" (5,1 cm) 15-7/8" x 48" (40,3 x 121,9 cm) 48" x 96" (60,6 x 121,9 cm) ¸ BEGIN Install loft panels centered over loft joists and ledger board. Secure with 2" nails spaced 8" apart. NOTE: There will be a gap of approximately 1/2"...
  • Page 68 DOORS PARTS REQUIRED: 3" (7,6 cm) 1-1/4" (3,2 cm) 1 x 3 x 5" (2,5 x 7,6 x 12,7 cm) 69" (175,3 cm) Door Stiffener Left Door Right Door BEGIN Place doors on flat surface. 3/8" offset is to top. Look for red (right) and green (left) on hinge board.
  • Page 69 DOORS PARTS REQUIRED: 3" (7,6 cm) TEMPORARY SUPPORT 69" (175,3 cm) Door Stiffener Install OO flush under panels. Secure to floor frame with (2) 3" screws (Fig. A) . Mark center of door opening. Fig. A Flush against wall panels (2) 3"...
  • Page 70 DOOR STIFFENERS PARTS REQUIRED: 2" (5,1 cm) 69" (175,3 cm) Door Stiffener BEGIN Center OO vertically on the left door in the doorway (Fig. A) overlapping 1" (2,5 cm) along the edge of door (Fig. B). Secure with (7) 2" screws through outside trim into OO. Center OO vertically on the right door in the door opening offset 1"...
  • Page 71 DOORS PARTS REQUIRED: 2" (5,1 cm) 3/4" (1,9 cm) 19/32" x 2-1/2" x 26 5/8" (1,5 x 6,3 x 67,6 cm) 3/4" (1,9 cm) Bagged separately/ 64" Metal Threshold 19/32" x 2-1/2" x 62" (1,5 x 6,3 x 157,5 cm) special coating 19/32"...

  • Page 72: Door Hardware

    DOOR HARDWARE PARTS REQUIRED: 3/4” (1,9 cm) BEGIN Install decorative hinges in locations shown. Secure with 3/4" screws. 3/4" (1,9 cm) Screws Flush to hinge FINISH Your decorative door hinges are now installed.
  • Page 73 DOOR HARDWARE PARTS REQUIRED: 5/16" (7,9 mm) Drill Bit 3/4" (1,9 cm) BEGIN Place bolt on OO in open position with bolt end 3/8" (9,5 mm) down from frame. Bolt is open when loop is contacting base (Fig A). Mark and pre-drill holes for screws. Install bolt with screws supplied. Drill 5/16"...

  • Page 74: Right Door

    DOOR HARDWARE PARTS REQUIRED: 1-1/2" (3,8 cm) 3/8" (10,9 cm) Drill Bit 1/4" (0,6 cm) Drill Bit Measure and mark location of hole on outside of right door as shown (Fig. A) . Pre-drill hole with 1/4" drill. Re-drill hole with 3/8 " drill. Keep drilled hole square to trim to avoid breaking edge of door stiffener.
  • Page 75 HOOK & EYE PARTS REQUIRED: ¸ BEGIN Install hooks in wall and into framing behind (Fig.A). Fig. A Swing door open to locate eye. Hook Install hook into framing, if possible. FINISH You have installed your hook & eyes.
  • Page 76 GABLE WINDOW PARTS REQUIRED: 2" (5,1 cm) 3/4" (1,9 cm) 19/32" x 2-1/2" X 21-3/4"(1,6 x 7,6 x 55,2 cm) BEGIN Center window in front gable as shown and secure with 3/4" screws Seal back of window with high-quality paintable exterior caulk before installing. 3/4"...
  • Page 77 VENT (Not included in kit.) • Follow directions provided by manufacturer and these instructions. 1/2" (13 mm) 16" x 8" BEGIN Locate and mark for two vents in side walls as shown; (1) at top and (1) at bottom. Cut out marked openings. Caulk behind vent flanges.
  • Page 78 PAINT & CAULK - NOT INCLUDED - • Use acrylic latex caulk that is paintable. Caulk at all horizontal and vertical seams, between the trim and walls, and all around the door trim. • Use a high quality exterior acrylic latex paint. When painting your building, there are a few key areas that can be easily overlooked that must be painted: •...
  • Page 79 SHINGLES - NOT INCLUDED - • Follow directions provided by manufacturer and these instructions. Familiarize yourself with a 3-Tab Shingle. Notch Notch SHINGLE NAIL PATTERN 1/2" 1" Sealing Strip 1" (1,3 cm) (2,5 cm) (2,5 cm) Half A Rain Slot Full Rain Slot NAILS NEVER DRIVE FASTENERS INTO OR ABOVE SEALING STRIPS.
  • Page 80 SHINGLES continued... Beginning at front of shed, install first row of shingles with notch at 1" past roof edge or flush with drip edge. Roof Deck FRONT OF BACK OF SHED SHED 1" (2,5 cm) Flush with starter row. Notch - or - Drip Edge Flush with starter row.
  • Page 81 SHINGLES continued... Continue installing rows of shingles to the peak. At the peak make sure there is a maximum of 5" or less to the rain slot, as shown below. If shingles overlap at ridge cut to peak with a utility knife. 5"...
  • Page 82 SHINGLES - RIDGE CAP • You will finish off the top of the roof with a ridge cap made from shingles. BEGIN Cut shingles in THREE pieces. Hint: Use cut-off pieces first. 2" 2" (5,1 cm) (5,1 cm) 2" 2" 2"...
  • Page 83 SHINGLES - RIDGE CAP continued... Continue installing ridge cap to back of roof. Make sure there is 4" between the shingle-color and edge of shingles. 4" (10,2 cm) Trim cap off fush to shingles When you have 4" minimum of shingle color cut one piece to cap your roof. Cut at top of rain slot.
  • Page 84 16568 10' x10' Order Form BUILDING CATEGORY PART DESCRIPTION PART SIZE PART ITEM # PART ID QTY. Loft Ledger Board "A" LUM SPF 2X3X96 #2&BTR 12115 2 X 3 Loft Ledger Board "B" 2 X 3 X 23 7/8" Q 23140000000 Back Wall Top &...

  • Page 85: Claim Procedure

    LIMITED CONDITIONAL WARRANTY* Backyard Storage Solutions, LLC warrants the following: Every product is warranted from defects in workmanship and manufacturing for 1 year. All accessories, hardware and metal components are warranted for 2 years. All Oriented Strand Board (OSB) is warranted for 2 years Siding and Trim is warranted for 15 years.

This manual is also suitable for:

Classic 10 x 10
