  • Page 1 16587-FL STOP! STOP! Call Us First! DO NOT RETURN TO STORE. For immediate help with assembly or product information Call our toll-free number: 1-800-577-9663 or email: customerservice@backyardproductsllc.com Our staff is ready to provide assistance. April through October M - F 8:00 to 6:00 Saturday 8:30 to 4:30...
  • Page 2 (This page intentionally left blank.)

  • Page 3: Assembly Manual

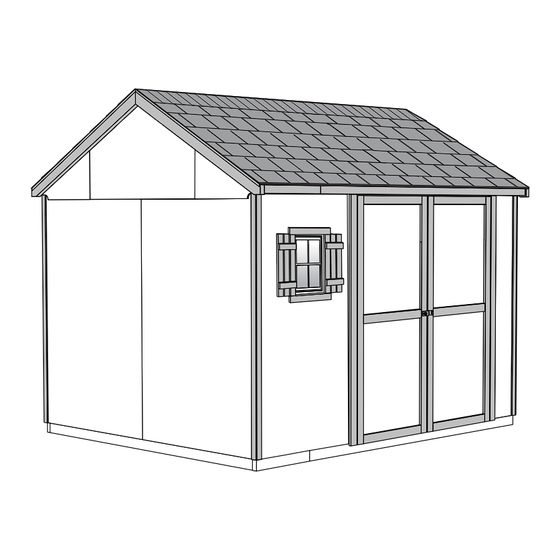

    ASSEMBLY MANUAL A Backyard Products Company VALUE SERIES VALENCIA 10' x 8' (305 x 244 cm) ACTUAL FLOOR SIZE IS KEEP THIS MANUAL FOR FUTURE REFERENCE I MP ORTA NT ! READ INSTRUCTIONS THOROUGHLY PRIOR TO BEGINNING ASSEMBLY. BEFORE YOU BEGIN requirements before building Contact our Customer Service Team if engineered drawings are needed to pull local permits.
  • Page 4 TOOLS Required Optional ❑ ❑ Phillips ❑ Screwdriver Nail Pouch ❑ ❑ Utility Knife ❑ Safety Glasses ❑ ❑ Shingle Blades ❑ ❑ Hammer ❑ Caulk Gun ❑ Nail Gun ❑ Pencil ❑ Wood Glue ❑ Gloves ❑ Tape Measure ❑...

  • Page 5: Additional Materials

    ADDITIONAL MATERIALS FOUNDATION OR FLOOR MATERIALS REINFORCED WOOD FLOOR FRAME (OPTIONAL) IMPORTANT! COMPLETING YOUR SHED You will need these additional materials: 3-TAB SHINGLES ...........5 Bundles ........2 Gallons ............2 Tubes OPTIONAL MATERIALS...

  • Page 6: Parts List

    PARTS IDENTIFICATION AND SIZES stamped on some parts. Actual Size Nominal Board Size 2" x 4"....1-1/2" x 3-1/2" (3,8 x 8,9 cm) 1" x 4"....3/4" x 3-1/2" (1,9 x 8,9 cm) 2" x 3"....1-1/2" x 2-1/2" (3,8 x 6,3 cm) 1"...

  • Page 7: Right Door

    WALL PANEL & DOOR PARTS LIST NOTE: Panel parts are not stamped RIGHT DOOR ROOF PANELS NOTES...
  • Page 8 FLOOR PANELS (Not Included) quantities shown below. NAIL BOXES BOXES BOXES NOTES...
  • Page 9 DOOR HARDWARE (Not actual size) METAL THRESHOLD FASTENER/HARDWARE BAG NOTES...
  • Page 10 BUILDING ANATOMY...
  • Page 11 FLOOR LEVELING OPTIONS Measurements to Shingle material locations. Shingle Gravel Gravel shingles in direct contact with ground. Gravel Asphalt Shingles CONCRETE If you are building your shed on a concrete foundation see the following page.
  • Page 12 CONCRETE FOUNDATION on a concrete slab refer to the diagram below. Treated Sill Plate sill plate and concrete. 3-1/2" (8,9 cm) 4" (10,2 cm) Actual Size MUST be treated lumber. MUST be treated lumber. Caulk Hint: Use treated lumber in NOTES...
  • Page 13 FLOOR FRAME LEVEL AND SQUARE FLOOR FRAME BEGIN Check for frame squareness by measuring diagonally across corners. If the using one fastener at ends of each runner. Move to the opposite end of the frame. sure the frame remains square...
  • Page 14 FLOOR FRAME TREATED TREATED TREATED TREATED Stamp BEGIN end of boards. seams as shown. 116-1/2" (295,9 cm) 96" Nails (243,8 cm) 72" (182,9 cm) NOTE THIS 48" MEASUREMENT (121,9 cm) 24" 20-1/2" Center on (61 cm) (52,1 cm) marks 1-1/2” HINT: (3,8 cm) SEAM...
  • Page 15 FLOOR BEGIN NOTE THIS MEASUREMENT 20-1/2" (52,1 cm) Nails DOOR 12" (30,5 cm) 3/4" Grid lines inside panel opposite (1,9 cm) corner 48" Nails (121,9 cm) Seams 6" (15,2 cm) edges of panel 96" (243,8 cm)
  • Page 16 FLOOR PANELS 96" (243,8 cm) 20-1/2" Grid lines (52,1 cm) 48" (121,9 cm) 12" (30,5 cm) 6" (15,2 cm) DOOR...
  • Page 17 IMPORTANT! HINT:...

  • Page 18: Parts Required

    SIDE WALL FRAMES PARTS REQUIRED: BEGIN HINT: Repeat steps 1-2 to build second side wall frame. Nails...
  • Page 19 SIDE WALL PANELS BEGIN Place panel onto side frame with primed side up as shown. Nails GAUGE Primed side up...
  • Page 20 SIDE WALL PANELS Repeat steps 1-4 to build second side wall. Nails Nails Primed side up...
  • Page 21 BACK WALL FRAME BEGIN Attach UM at seams as shown. HINT: Nails Nails SEAM...
  • Page 22 BACK WALL Move to the opposite end. Using the long edge of the panel as a lever move the apart inside panel. BEGIN HERE 2 Nails 3/4" (1,9 cm) 12" (30,5 cm) Primed side up 6" (15,2 cm) GAUGE 46-1/8" 3/4"...
  • Page 23 BACK WALL shown with primed side facing up 3/4" (1,9 cm) Primed side up 6" (15,2 cm) GAUGE shown with primed side facing up. 23-7/8" (60,6 cm) 12" (30,5 cm) 6" (15,2 cm) Primed side up 46-1/8" (117,2 cm)
  • Page 24 FRONT WALL FRAME BEGIN Attach UM at seam as shown. HINT: wall frame. Maintain Maintain dimensions dimensions...

  • Page 25: Front Wall

    FRONT WALL " BEGIN " panels onto wall frame as shown with primed sides up. Use OO Maintain measurements Screws Center Primed Primed side up side up...
  • Page 26 FRONT WALL BEGIN Place CCA Proceed to standing your walls. Nails...
  • Page 27 BACK / FRONT WALL INSTALLATION BEGIN Assistance required to hold wall upright or use rafter YA as a temporary brace. Temporary brace Nails Repeat steps 1-3 to stand your wall.

  • Page 28: Side Wall Installation

    SIDE WALL INSTALLATION BEGIN Ensure the measurement between the panel edges are the same along the entire length. Then Repeat Steps 1-4 for opposite wall. Remove rafter temporary braces iNaili Screw Same Measurement Nails Naili Naili...
  • Page 29 WALL DOUBLERS BEGIN as shown. apart Nails...
  • Page 30 RAFTERS Gusset BEGIN Position and square CBA screws as shown. You will build assemblies. HINT: Place two rafter halves in the corner of back and side wall and CBA. Rafters contact at peak. help assemble rafters! Fit base of Rafters in corners of back wall Use CBA as Contact at peak...
  • Page 31 RAFTER INSTALLATION BEGIN Mark doubler to measurements shown. connection Dimensions are to 24” 24” 24” 22-5/8” 22-5/8” (61 cm) (61 cm) (61 cm) (57,5 cm) (57,5 cm) Screws...
  • Page 32 GABLES BEGIN Secure center gable panel to two CBA Align top gable panel centered on middle gable panel and secure using Measure and mark center gable panel as shown Repeat Steps 1 - 3 to build second gable. Primed side UP Mark center on top and bottom of panel Primed side UP...
  • Page 33 GABLE INSTALLATION BEGIN Center gable assembly on side wall using mark. Gable connectors CBA to top of frame. Repeat STEPS 1-2 at opposite side. gable panel assemblies. Nails Screws...
  • Page 34 GABLE TRIM INSTALLATION GABLE TRIM BEGIN Install right-front gable trim as shown. apart. Screw through panels into gable trim. Repeat above steps to install right-rear gable trim as shown. Repeat above steps to secure the left gable trim Mark Screws...
  • Page 35 FASCIA TRIM BEGIN Repeat process on opposite side. apart Angle top nails to hit doubler...
  • Page 36 ROOF PANELS BEGIN at peak measurement on the rafter the peak the corners. Nails Block at peak Move to the opposite end. Using the long edge of the panel as a the peak and there is to the gable trim You may need to move your Nails measurement.
  • Page 37 ROOF PANELS Keep spacing between the center of the rafters at the lower edge of the nail into each rafter Move to the top of the panel and keep spacing between the center of the nail into each rafter at peak measurement the upper panels trim...
  • Page 38 DOOR SUPPORT BEGIN top plate and doubler side wall frame and attach with Glue...
  • Page 39 DOORS HINT: attached to doors. BEGIN Attach temporary supports OO Tighten secuely. Attach temporary supports GAA Tighten secuely. BLACK BLACK 5/8" OFFSET 5/8" OFFSET Make sure spacer 3/8" (1,6 cm) (1,6 cm) is attached. (1 cm) 23-1/2" (59,7 cm) (4) 3" (7,6 cm) Screws Tighten screws securely.
  • Page 40 DOORS ttach temporary support OO Center Flush against wall panels. Fig. A Measure and mark center of door opening. Center doors on mark as shown Remove temporary supports and ledger board. Check doors open properly. on mark. Screw and stud. top plate and...
  • Page 41 DOOR TRIM & THRESHOLD METAL THRESHOLD BEGIN trim . Use two screws at seams. Door Panel Hinge Board Screws Door Fig. A Trim CENTER Two Screws coating screws Fig. B...
  • Page 42 DOOR WEATHERSTRIP BEGIN OO vertically on the left door in the door opening the door trim Secure OO On right door center OO vertically in door opening . OO will offset the Secure OO Center OO in door Screws Screws...

  • Page 43: Door Hardware

    DOOR HARDWARE BEGIN Place bolts onto OO Bolt is open when loop is contacting base Mark and pre-drill holes for screws. to slide into. Place bolts onto OO is open when loop is contacting base Mark and pre-drill holes for screws. HINT: With door and tap with hammer to slide into.

  • Page 44: Side View

    DOOR HARDWARE Drill Bits BEGIN Measure and mark location of hole on outside of right door as shown Keep drilled hole square to trim to avoid breaking Pre-drill and Drill-through. SIDE VIEW RIGHT DOOR. Attach inside handle and secure with set screw as shown. Screw...
  • Page 45 COLLAR TIES BEGIN Nails Nails...
  • Page 46 CORNER TRIM BEGIN Place parts under front and back eave trim and under side gable panel cutouts as shown. Repeat on each corner of shed. panel cutout eave trim apart...
  • Page 47 WINDOW SHUTTERS BEGIN You will build two shutters the same. Repeat steps to build your second shutter. Primed side 3-1/2" (8,9 cm) 1/4" both sides 3-1/2" (0,6 cm) (8,9 cm) both sides...
  • Page 48 WINDOW SHUTTERS BEGIN Seal grade caulk. Attach screws as shown. Mark center of window frame as shown. HINT: Caulk behind frame near edge before installing.
  • Page 49 WINDOW SHUTTERS shown. Nail into wall frame inside. Mark Repeat steps to attach shutter on opposite side. nails. Nail into window frame inside. window and shutters. Mark from inside CENTER into wall frame...
  • Page 50 PAINT & CAULK and all around the door trim. be easily overlooked that must be painted: Paint under door trim to match shed color. Note: ROOF FELT DRIP EDGE under roof felt on eave side Drip to trim. Snip bottom side of drip edge and bend over to other side of roof.
  • Page 51 SHINGLES Notch Notch SHINGLE NAIL PATTERN 1/2" 1" 1" Sealing Strip (1,3 cm) (2,5 cm) (2,5 cm) NAILS BEGIN NOTE: SHED SHED TABS UP...

  • Page 52: Right Side

    SHINGLES continued... RIGHT SIDE SHED Notch - or - Notch stagger each row. RIGHT SIDE SHED Notch Continue installing rows of shingles by staggering at front. Notch SHED...
  • Page 53 SHINGLES continued... or less. Using your shingle hooked blade carefully cut shingles along chalk line.
  • Page 54 SHINGLES - RIDGE CAP BEGIN Cut shingles into THREE pieces. Hint: 24 to 26 Note: Pieces SHED...
  • Page 55 SHINGLES - RIDGE CAP continued... Continue installing ridge cap to back of roof.

  • Page 56: Warranty

    WARRANTY Backyard Storage Solutions, LLC warrants the following: Limited Conditional Every product is warranted from defects in workmanship and manufacturing for one year. Warranty * All hardware and metal components are warranted for two years. Trim is warranted for 10 years. Waferboard siding and sheathing is warranted for two years.
