Heartland VALUE Series Assembly Manual

Hide thumbs Also See for VALUE Series:

Advertisement

Quick Links

Download this manual
For questions on assembly or for general inquiries, you may contact us in the following ways:
Call a Recruiter Today! 734-365-7000
Flexible schedule
*based on number of completed installations
Call Us First!
DO NOT RETURN TO STORE.
Call customer service: 1-877-743-3400
AVOID THE WAIT!
visit us online at
help.backyardproducts.com
Submit a help request
Answers to frequently asked questions
Live chat with an agent
Did you enjoy building your shed?
JOIN OUR TEAM
AND MAKE UP TO $1,500/WEEK*
No selling,
just building
Bonus incentives
available
16653-G

Advertisement

loading

Related Manuals for Heartland VALUE Series

Summary of Contents for Heartland VALUE Series

  • Page 1 16653-G Call Us First! DO NOT RETURN TO STORE. For questions on assembly or for general inquiries, you may contact us in the following ways: Call customer service: 1-877-743-3400 AVOID THE WAIT! visit us online at help.backyardproducts.com Submit a help request Answers to frequently asked questions Live chat with an agent Did you enjoy building your shed?
  • Page 2 Win $500 A new winner is selected every 2 months. Review your product for the chance to win a $500 Visa Gift Card. Open camera. How to Enter: Aim. Tap. Scan Click Find your product. Submit your review. QR code above. ‘write a review’...

  • Page 3: Assembly Manual

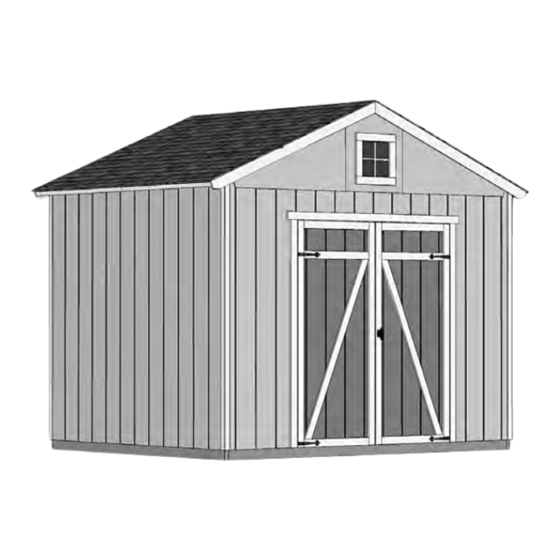

    16653-G 06/08/2022 ASSEMBLY MANUAL VALUE SERIES CLASSIC 10' x 8' (304,8 x 243,8 cm) BUILDING SIZE ACTUAL FLOOR SIZE 10' x 8' (304,8 x 243,8 cm) 10' x 8' (304,8 x 243,8 cm) KEEP THIS MANUAL FOR FUTURE REFERENCE Building 10' x 8' IMPORTA NT ! READ INSTRUCTIONS THOROUGHLY PRIOR TO BEGINNING ASSEMBLY.
  • Page 4 TOOLS Required Optional K Phillips K Tool Belt/ K Utility Knife Screwdriver Nail Pouch K Shingle Blades K Drill / Driver K Tin Snips K 3/8" Drill Bit K Caulk Gun (for drip edge) K #2 Philips Drive Bit K Chalk Line K Hammer K Paint Tools K Level...

  • Page 5: Additional Materials

    ADDITIONAL MATERIALS FOUNDATION OR FLOOR MATERIALS • If you purchased a separate floor kit, use instructions and materials in that kit to construct your floor. • See the FLOOR LEVELING section on page 9 for recommended methods and suggested materials to properly level your floor, as this will vary depending on your specific site.

  • Page 6: Optional Materials

    ADDITIONAL MATERIALS COMPLETING YOUR SHED You will need these additional materials: 3-TAB SHINGLES (Bundles)..... 5 PAINT FOR TRIM ......1 Quart Use 100% acrylic latex exterior paint. PAINT FOR SIDING (Gallons)....2 WOOD GLUE ....Exterior Rated Use 100% acrylic latex exterior paint. (2) coats recommended.
  • Page 7 PARTS IDENTIFICATION AND SIZES WOOD SIZE CONVERSION CHART Double letter part identification Nominal Board Size Actual Size is stamped on some parts. 2 x 4 ....1-1/2" x 3-1/2" (3,8 x 8,9 cm) 1 x 4 ....3/4" x 3-1/2" (1,9 x 8,9 cm) •...
  • Page 8 PANEL & DOORS PARTS LIST NOTE: Panel parts are not stamped with part identification. SQUARE SQUARE SQUARE EDGE EDGE EDGE LIP EDGE Left Right 3/8 x 48 x 84" 3/8 x 23-7/8 x 84" (1 x 121,9 x 213,4 cm) (1 x 121,9 x 213,4 cm) 3/8"...
  • Page 9 SHELVING PARTS LIST Shelf panels are 7/16" (1,1 cm) thick. 2 x 3 x 10" 1 x 4 x 23-78" (5,1 x 7,6 x 25,4 cm) (2,5 x 10,2 x 60,6 cm) 1 x 4 x 96" 3/8 x 8 x 12-1/2" (2,5 x 10,2 x 243,9 cm) (1 x 20,3 x 32 cm) 7/16 x 11-7/8 x 23-7/8"...
  • Page 10 CONCRETE FOUNDATION If you choose to install your kit on a concrete slab refer to the diagram below. Attach the sill plates on the foundaton as shown, and continue on to page 11. Treated Sill Plate Caulk between sill plate and concrete.
  • Page 11 OPTIONAL WOOD FRAME FLOOR LEVELING OPTIONS There are multiple ways to level your floor frame. Our recommended leveling method is shown below. Leveling materials are not included in this kit. PREFERRED METHOD - 4x4 TREATED RUNNERS Runners are generally 12" (30,5 cm) from ends of foor frame and under seams.
  • Page 12 LEVELING & SQUARING THE FLOOR FRAME (Not Included) LEVEL AND SQUARE FLOOR FRAME Before attaching fl oor decking, it is important to level and square the fl oor frame. A level and square fl oor frame is required to correctly construct your shed. See page 9 for the preferred f oor leveling method.
  • Page 13 IMPORTANT! I M P O R T A N T ! Ensure the foor frame is level after installing foor panels. Re-level if needed. • The foor should used as a stable work surface for wall construction. • Organize your assembly procedure during the build process to avoid over-handling of the walls.

  • Page 14: Parts Required

    DOOR HEADER PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 67" (5,1 x 10,2 x 170,2 cm) 7/16 x 3-1/4 x 66-3/4" (1,1 x 8,3 x 170,2 cm) BEGIN Place (1) AM and OSB end-to-end on fl at surface, fl ush in middle. Center OSB on top of AM.
  • Page 15 WALL PANEL INSTALLATION HINTS & EXAMPLES PARTS REQUIRED: 2" (5,1 cm) 2x3" TEMP. SPACER 3/4" GAUGE BLOCK 3/8 x 48 x 84" (1 x 121,9 x 213,4 cm ) Ensure your wall is square by installing one panel and squaring frame. Install all wall panels with the primed side facing up.
  • Page 16 10' GABLE WALL WITH DOOR PARTS REQUIRED: 2 x 4 x 7" (5,1 x 10,2 x 17,8 cm) 3" (7,6 cm) 2 x 4 x 28" (5,1 x 10,2 x 71,1 cm) , x2 RR 3" (7,6 cm) 2 x 4 x 68" (5,1 x 10,2 x 172,7 cm) 2 x 4 x 78-1/2"...
  • Page 17 10' GABLE WALL WITH DOOR PARTS REQUIRED: 3" (7,6 cm) x150 2" (5,1 cm) 11-7/8" x 84" (30,2 x 213,4 cm) Temporary Brace 69" (75,3 cm) Door Stiffener Install the left panel 1-1/2" 1-1/2" from the top plate. (3,8 cm) Flush 3/4"...
  • Page 18 10' GABLE WALL PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 24" (5,1 x 10,2 x 61 cm) 2 x 4 x 78-1/2" (5,1 x 10,2 x 199,4 cm) 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm) BEGIN Orient parts on edge on floor as shown.
  • Page 19 10' GABLE WALL PARTS REQUIRED: x136 2" (5,1 cm) 48 x 84" 23-7/8" x 84" (121,9 x 213,4 cm ) (60,6 x 213,4 cm ) 1-1/2" (3,8 cm) 3/4" BEGIN HERE (1,9 cm) Install 48" x 84" panel 1-1/2" from the top plate. Use a 2x3 spacer for consistent measurement.
  • Page 20 8' EAVE WALLS PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 78-1/2" (5,1 x 10,2 x 199,4 cm) 2 x 4 x 89" (5,1 x 10,2 x 226,1 cm) Build TWO identical 8' walls. BEGIN Orient parts on edge on floor. Measure and mark from end of boards. HINT: Secure with (2) 3"...
  • Page 21 8' EAVE WALLS PARTS REQUIRED: x140 2" (5,1 cm) 48 x 84" (121,9 x 213,4 cm ) 3/4" BEGIN HERE (1,9 cm) 3-1/2" Install 48" x 84" panel (8,9 cm) 1-1/2" from the top plate. 1-1/2" (3,8 cm) Use a 2x3 spacer for consistent measurement.
  • Page 22 10' GABLE WALL INSTALLATION PARTS REQUIRED: 3" (7,6 cm) 69" (175,3 cm) Door Stiffener 3" (7,6 cm) 2" (5,1 cm) BEGIN 1-1/2" (3,8 cm) Center 10' wall on the 120" (304,8 cm) fl oor dimension. 1-1/2" (3,8 cm) overlap is to the top. Use OO as a temporary brace.
  • Page 23 8' EAVE WALL INSTALLATION PARTS REQUIRED 2" (5,1 cm) 3" (7,6 cm) 2" (5,1 cm) 1-1/2" (3,8 cm) 3" (7,6 cm) BEGIN Fig. B Place 8' eave wall centered on fl oor. 1-1/2" (3,8 cm) overlap is to the top. 2"...
  • Page 24 8' EAVE WALL INSTALLATION PARTS REQUIRED: 2" (5,1 cm) 3" (7,6 cm) 2" (5,1 cm) 3" (7,6 cm) 1-1/2" (3,8 cm) Fig. B BEGIN 1-1/2" (3,8 cm) Remove temporary brace OO from installed 10' gable wall. Place 2nd 8' eave wall centered on fl oor 2"...
  • Page 25 10' GABLE WALL INSTALLATION PARTS REQUIRED 2" (5,1 cm) 3" (7,6 cm) 2" (5,1 cm) 1-1/2" (3,8 cm) 3" (7,6 cm) BEGIN Fig. B Place 10' gable wall on fl oor centered between installed walls. 2" (5,1 cm) Screw Secure wall with 2" screws into top and bottom plates (Fig.
  • Page 26 10' x 8' WALL DOUBLERS INSTALLATION PARTS REQUIRED: 3" (7,6 cm) x2 JBD 2 x 4 x 20-3/8" (5,1 x 10,2 x 51,8 cm) 3" (7,6 cm) 2 x 4 x 92-5/8" (5,1 x 10,2 x 235 cm) 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm) BEGIN Orient parts on top of wall frames.
  • Page 27 RAFTERS PARTS REQUIRED: 2" (5,1 cm) 6 x 24" (15,2 x 60,9 cm) 2 x 4 x 65" (5,1 x 10,2 x 165,1 cm) x1 OO Temporary Support 69" (175,3 cm) Door Stiffener Build (2) rafter assemblies with (1) gusset (Fig. B). BEGIN Place two rafter-halves AD in the corner of back and side walls, fl ush to panels and studs.
  • Page 28 RAFTER INSTALLATION PARTS REQUIRED: 3" (7,6 cm) Two-Gusset Preassembled One-Gusset Preassembled BEGIN Align rafters over the wall studs. Check that you have the measurements shown. Secure rafters with (2) 3" screws angled at each end (Fig. A, Fig. B). Secure rafters on opposite side. Maintain the measurements between rafters.
  • Page 29 GABLE UNITS PARTS REQUIRED: 1-1/2" (3,8cm) 2 x 4 x 18-1/8" (5,1 x 10,2 x 46 cm) Install gable panels with the primed side facing up. BEGIN Orient parts AF on the fl at side, as shown. Measure and mark the center of the middle gable panel. Secure with 1-1/2" nails spaced 6" apart along edge. Place left panel on AF fl ush to installed gable panel and secure with 1-1/2"...
  • Page 30 GABLE INSTALLATION PARTS REQUIRED: 3" (7,6 cm) 2" (5,1 cm) Pre - assembled BEGIN Measure 2-9/16" down from top plate doubler and mark at each side as shown. Set gable unit on top plate. Fasten with (1) 2" nail on each side. BE SURE GABLE IS CENTERED ON WALL BEFORE NAILING.
  • Page 31 ROOF PANELS PARTS REQUIRED: 2" (5,1 cm) 3/4" GAUGE BLOCK 7/16 x 48 x 96" (1,1 x 121,9 x 243,8 cm) Roof panels may cause serious injury until securely fastened. Flush at Note: Install all roof panels with the rough side up (painted grid lines). peak BEGIN Fig.
  • Page 32 ROOF PANELS PARTS REQUIRED: 2" (5,1 cm) 23-1/2" x 96" (59,7 x 243,8 cm) Install 23-1/2" x 96" roof panel flush to the installed panel and there is a 1/2" measurement on the gable end rafter (Fig. A). Secure panel with (1) 2" nail in each corner.
  • Page 33 ROOF PANELS PARTS REQUIRED: 2" (5,1 cm) Secure all roof panels with 2" nails spaced 6" apart and 12" apart inside of the 48" wide panel. 6" (15,2 cm) Repeat steps to install roof panels on the opposite side. FINISH Your roof panels are now installed.
  • Page 34 GABLE TRIM PARTS REQUIRED: 2" (5,1 cm) 19/32" x 3-1/2" x 71-15/16" (1,5 x 8,9 x 182,7 cm) 19/32" x 3-1/2" x 71-15/16" (1,5 x 8,9 x 182,7 cm) BEGIN Install front gable trim AUR and AUL fl ush to top of roof panel and fl ush at peak, as shown (Fig. A). Secure trim with 2"...
  • Page 35 EAVE TRIM PARTS REQUIRED: 1-1/4" (3,2 cm) 3" (7,6 cm) 2 x 6 x 48" (5,1 x 15,2 x 121,9 cm) 3/32" (2,4 mm) Drill Bit 2 x 6 x 49-3/4" (5,1 x 15,2 x 126,4 cm) BEGIN Place VF eave trim fl ush along edge of roof panel (Fig. A). Screw through roof panel into VF with 1-1/4"...
  • Page 36 CORNER TRIM PARTS REQUIRED: 2" (5,1 cm) 3/8" x 1-3/4" x 83-1/2" (1 x 4,5 x 212.1cm) BEGIN Install gable end 83-1/2" corner trim under gable panel, (Fig. A) and fl ush to eave wall panel (Fig. B). Secure with 2" fi nishing nails spaced evenly. Install eave side 83-1/2"...
  • Page 37 LOFT JOIST ASSEMBLY PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 24" (5,1 x 10,2 x 61 cm) 7/16" (11 mm) Drill Bit 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm) ¸ BEGIN Orient parts TP and RL on a fl at surface. Hold parts TP and RL fl ush and aligned.
  • Page 38 LOFT JOIST INSTALLATION PARTS REQUIRED: 3" (7,6 cm) x1 LW 2 x 3 x 23-7/8" (5,1 x 7,6 x 60,6 cm) 5-1/2" (14 cm) Hexb bolt, 2 washers and locknut 2 x 3 x 96" (5,1 x 7,6 x 243,8 cm) LOFT JOIST ASSEMBLY ¸...
  • Page 39 LOFT PANELS PARTS REQUIRED: 2" (5,1 cm) 15-7/8" x 23-7/8" (40,3 x 60,6 cm) 23-7/8" x 96" (60,6 x 244 cm) ¸ BEGIN Install loft panels centered over loft joists and ledger board. Secure with 2" nails spaced 8" apart. NOTE: There will be a gap of approximately 1/2"...
  • Page 40 SHELF ASSEMBLY AND INSTALLATION PARTS REQUIRED: 2" (5,1 cm) 3/8 x 8 x 12-1/2" (1 x 20,3 x 31,8 cm) 2 x 3 x10" (5,1 x 7,6 x 25,4 cm) BEGIN Secure AC to shelf panels with (3) 2" nails. Assemble (12) shelf supports as shown;...

  • Page 41: Shelf Installation

    SHELF INSTALLATION PARTS REQUIRED: 2" (5,1 cm) 7/16 x 11-7/8 x 96" OSB (1,1 x 30,2 x 243,8 cm) 1 x 4 x 96" (2,5 x 10,2 x 243,8 cm) 7/16 x 11-7/8 x 24" OSB 1 x 4 x 24" (2,5 x 10,2 x 60,1 cm) (1,1 x 30,2 x 60,1 cm) Install shelf panels centered over shelf supports, fl ush to wall studs and fl ush at seams.
  • Page 42 DOORS PARTS REQUIRED: 3" (7,6 cm) 1-1/4" (3,2 cm) 1 x 3 x 5" (2,5 x 7,6 x 12,7 cm) 69" (175,3 cm) Door Stiffener Left Door Right Door BEGIN Place doors on flat surface. 3/8" offset is to top. Look for red (right) and green (left) on hinge board.
  • Page 43 DOORS PARTS REQUIRED: 3" (7,6 cm) TEMPORARY SUPPORT 69" (175,3 cm) Door Stiffener Install OO fl ush under panels. Secure to fl oor frame with (2) 3" screws (Fig. A) . Mark center of door opening. Fig. A Flush against wall panels (2) 3"...
  • Page 44 DOOR STIFFENERS PARTS REQUIRED: 2" (5,1 cm) 69" (175,3 cm) Door Stiffener BEGIN Center OO vertically on the left door in the doorway (Fig. A) overlapping 1" (2,5 cm) along the edge of door (Fig. B). Secure with (7) 2" screws through outside trim into OO. Center OO vertically on the right door in the door opening offset 1"...
  • Page 45 DOORS PARTS REQUIRED: 2" (5,1 cm) 3/4" (1,9 cm) 19/32" x 2-1/2" x 26 5/8" (1,5 x 6,3 x 67,6 cm) 3/4" (1,9 cm) Bagged separately/ 64" Metal Threshold 19/32" x 2-1/2" x 62" (1,5 x 6,3 x 157,5 cm) special coating 19/32"...

  • Page 46: Door Hardware

    DOOR HARDWARE PARTS REQUIRED: 3/4” (1,9 cm) BEGIN Install decorative hinges in locations shown. Secure with 3/4" screws. 3/4" (1,9 cm) Screws Flush to hinge FINISH Your decorative door hinges are now installed.
  • Page 47 DOOR HARDWARE PARTS REQUIRED: 5/16" (7,9 mm) Drill Bit 3/4" (1,9 cm) BEGIN Place bolt on OO in open position with bolt end 3/8" (9,5 mm) down from frame. Bolt is open when loop is contacting base (Fig A). Mark and pre-drill holes for screws. Install bolt with screws supplied. Drill 5/16"...

  • Page 48: Right Door

    DOOR HARDWARE PARTS REQUIRED: 1-1/2" (3,8 cm) 3/8" (10,9 cm) Drill Bit 1/4" (0,6 cm) Drill Bit Measure and mark location of hole on outside of right door as shown (Fig. A) . Pre-drill hole with 1/4" drill. Re-drill hole with 3/8 " drill. Keep drilled hole square to trim to avoid breaking edge of door stiffener.
  • Page 49 COLLAR TIE PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 72" (5,1 x 10,2 x 182,9 cm) BEGIN Install collar tie TM to the 2nd rafter from the back wall with (3) 3" nails at each end. 3" (7,6 cm) Nails Flush to panel Flush to panel...
  • Page 50 GABLE WINDOW PARTS REQUIRED: 2" (5,1 cm) 3/4" (1,9 cm) 19/32" x 2-1/2" x 12" (1,5 x 6,3 x 30,5 cm) 19/32" x 2-1/2" x 17" (1,6 x 7,6 x 43,2 cm) Window BEGIN Center window in front gable as shown and secure with 3/4" screws Seal back of window with high-quality paintable exterior caulk before installing.
  • Page 51 HOOK & EYE PARTS REQUIRED: ¸ BEGIN Install hooks in wall and into framing behind (Fig.A). Fig. A Swing door open to locate eye. Hook Install hook into framing, if possible. FINISH You have installed your hook & eyes.
  • Page 52 VENT (Not included in kit.) • Follow directions provided by manufacturer and these instructions. 1/2" (13 mm) 16" x 8" BEGIN Locate and mark for two vents in side walls as shown; (1) at top and (1) at bottom. Cut out marked openings. Caulk behind vent fl anges.
  • Page 53 PAINT & CAULK - NOT INCLUDED - • Use acrylic latex caulk that is paintable. Caulk at all horizontal and vertical seams, between the trim and walls, and all around the door trim. • Use a high quality exterior acrylic latex paint. When painting your building, there are a few key areas that can be easily overlooked that must be painted: •...
  • Page 54 SHINGLES - NOT INCLUDED - • Follow directions provided by manufacturer and these instructions. Familiarize yourself with a 3-Tab Shingle. Notch Notch SHINGLE NAIL PATTERN 1/2" 1" Sealing Strip (1,3 cm) 1" (2,5 cm) (2,5 cm) Half A Rain Slot Full Rain Slot NAILS NEVER DRIVE FASTENERS INTO OR ABOVE SEALING STRIPS.
  • Page 55 SHINGLES continued... Beginning at front of shed, install first row of shingles with notch at 1" past roof edge or flush with drip edge. Roof Deck FRONT OF BACK OF SHED SHED 1" (2,5 cm) Flush with starter row. Notch - or - Drip Edge Flush with starter row.
  • Page 56 SHINGLES continued... Continue installing rows of shingles to the peak. At the peak make sure there is a maximum of 5" or less to the rain slot, as shown below. If shingles overlap at ridge cut to peak with a utility knife. 5"...
  • Page 57 SHINGLES - RIDGE CAP • You will finish off the top of the roof with a ridge cap made from shingles. BEGIN Cut shingles in THREE pieces. Hint: Use cut-off pieces first. 2" 2" (5,1 cm) (5,1 cm) 2" 2" 2"...
  • Page 58 SHINGLES - RIDGE CAP continued... Continue installing ridge cap to back of roof. Make sure there is 4" between the shingle-color and edge of shingles. 4" (10,2 cm) Trim cap off f ush to shingles When you have 4" minimum of shingle color cut one piece to cap your roof. Cut at top of rain slot.
  • Page 59 16653-G 10' x 8' Order Form BUILDING CATEGORY PART DESCRIPTION PART SIZE PART ITEM # PART ID QTY. Loft Ledger Board "A" LUM SPF 2X3X96 #2&BTR 12115 2 X 3 Loft Ledger Board "B" 2 X 3 X 23 7/8" Q 23140000000 Shelf Support 2 X 3 X 10"...

  • Page 60: Claim Procedure

    LIMITED CONDITIONAL WARRANTY* Backyard Storage Solutions, LLC warrants the following: Every product is warranted from defects in workmanship and manufacturing for 1 year. All accessories, hardware and metal components are warranted for 2 years. All Oriented Strand Board (OSB) is warranted for 2 years Siding and Trim is warranted for 15 years.
