Heartland VALUE Series Assembly Manual

Hide thumbs Also See for VALUE Series:

Advertisement

Quick Links

Download this manual
For questions on assembly or for general inquiries, you may contact us in the following ways:
Call a Recruiter Today! 734-365-7000
Flexible schedule
*based on number of completed installations
Call Us First!
DO NOT RETURN TO STORE.
Call customer service: 1-800-577-9663
AVOID THE WAIT!
visit us online at
help.backyardproducts.com
Submit a help request
Answers to frequently asked questions
Live chat with an agent
Did you enjoy building your shed?
JOIN OUR TEAM
AND MAKE UP TO $1,500/WEEK*
No selling,
just building
Bonus incentives
available
16011-NG

Advertisement

loading

Related Manuals for Heartland VALUE Series

Summary of Contents for Heartland VALUE Series

  • Page 1 16011-NG Call Us First! DO NOT RETURN TO STORE. For questions on assembly or for general inquiries, you may contact us in the following ways: Call customer service: 1-800-577-9663 AVOID THE WAIT! visit us online at help.backyardproducts.com Submit a help request Answers to frequently asked questions Live chat with an agent Did you enjoy building your shed?
  • Page 2 Win $500 A new winner is selected every 2 months. Review your product for the chance to win a $500 Visa Gift Card. Open camera. How to Enter: Aim. Tap. Scan Click Find your product. Submit your review. QR code above. ‘write a review’...

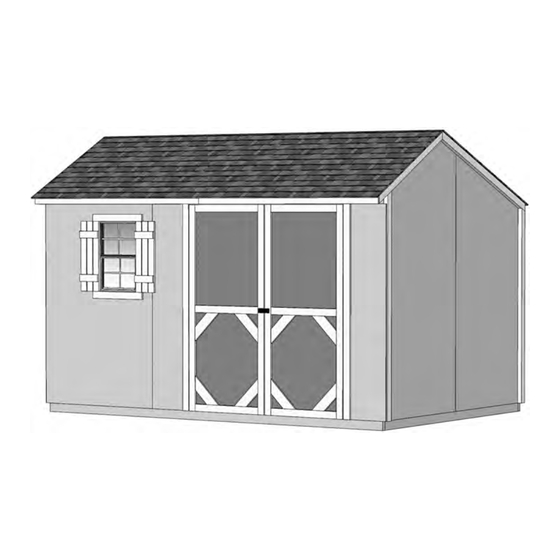

  • Page 3 16011-NG 06/08/2021 ASSEMBLY MANUAL A Backyard Products Company VALUE SERIES STRATFORD 12' x 8' (366 x 244 cm) ACTUAL FLOOR SIZE IS 141 x 96" (358 x 244 cm) KEEP THIS MANUAL FOR FUTURE REFERENCE IMPORTA NT ! READ INSTRUCTIONS THOROUGHLY PRIOR TO BEGINNING ASSEMBLY.
  • Page 4 TOOLS Required Optional Tool Belt/ Utility Knife Phillips Nail Pouch Screwdriver Shingle Blades Caulk Gun Drill / Driver Tin Snips 3/8" Drill Bit (for drip edge) #2 Philips Drive Bit Paint Tools Chalk Line Hammer Safety Glasses Nail Gun Level •...
  • Page 5 ADDITIONAL MATERIALS FOR BUILDING YOUR SHED 3-TAB SHINGLES ......5 Bundles 1" GALVANIZED ROOFING NAILS..2 Lbs For shingles. PAINT FOR SIDING ......2 Gallons PAINT FOR TRIM ......1 Quart Use 100% acrylic latex exterior paint. Use 100% acrylic latex exterior paint. (2) coats recommended. 1"...
  • Page 6 PARTS IDENTIFICATION AND SIZES Part identification WOOD SIZE CONVERSION CHART letters are stamped on some parts. Nominal Board Size Actual Size 2 x 4....1-1/2" x 3-1/2" (3,8 x 8,9 cm) 1 x 4....3/4" x 3-1/2" (1,9 x 8,9 cm) 2 x 3....1-1/2" x 2-1/2" (3,8 x 6,3 cm) Check these locations for 1 x 3....3/4"...
  • Page 7 WALL PANELS / DOOR PARTS LIST 3/8 x 48 x 72" 3/8 x 15-7/8 x 72" (1 x 122 x 183 cm) (1 x 40 x 183 cm) 1-1/2 x 2-1/2 x 69" (3,8 x 6,3 x 175,3 cm) 3/8 x 7-7/8 x 94-1/2" 3/8 x 7-7/8 x 46-1/2"...
  • Page 8 SHELF & WINDOW PARTS LIST 1 x 3 x 96" 23-7/8 x 96" (2,5 x 7,6 x 244 cm) (61 x 244 cm) Peg Board Window 7/16 x 20 x 96" 7/16 x 11-3/4 x 96" (1,1 x 51 x 244 cm) (1,1 x 30 x 244 cm) NAIL BOXES (Shown actual size) 3"...
  • Page 9 BUILDING ANATOMY This building has been designed using our patented EZ Frame construction method. EZ Frame is a unique construction method which has been engineered to use fewer framing members. This reduces assembly time and cost by as much as 30% compared to conventional construction methods.
  • Page 10 FLOOR LEVELING OPTIONS There are multiple ways to level your floor frame. Our recommended leveling method is shown below. Leveling materials are not included in this kit. PREFERRED METHOD - 4x4 TREATED RUNNERS (NOT INCLUDED) • 3" Screws angled into 4x4. •...
  • Page 11 CONCRETE FOUNDATION If you choose to install your kit on a concrete slab refer to the diagram below. Treated Sill Plate Caulk between sill plate and concrete. 3-1/2" (8,9 cm) 4" (10 cm) Building Size Actual Size 12'x 8' (366 x 244 cm) 141"...
  • Page 12 FLOOR FRAME (NOT INCLUDED) FLOOR FRAME (NOT INCLUDED) PARTS REQUIRED: 3" (7,6 cm) 2 x 4 x 93" (5 x 10 x 236 cm) 2 x 4 x 141" (5 x 10 x 358 cm) Use Treated lumber Arrange parts on a flat surface. Measure and mark. Secure with (2) 3"...
  • Page 13 LEVEL AND SQUARE FLOOR FRAME Before attaching floor decking, it is important to level and square the floor frame. A level and square floor frame is required to correctly construct your shed. See page 8 for the preferred floor leveling method. Use level and check the frame is level before applying floor panels.
  • Page 14 FLOOR PANELS (NOT INCLUDED) PARTS REQUIRED: 2" (5,1 cm) Floor panels not included. See page 3 for panel sizes 5/8 x 45 x 96" and quantities. (1,6 x 114 x 243,8 cm) Ensure your foor frame is square by installing (1) panel and squaring frame.
  • Page 15 FLOOR PANELS (NOT INCLUDED) PARTS REQUIRED: x124 2" (5,1 cm) 5/8 x 48 x 96" (1,6 x 121,9 x 243,8 cm) Continue installing panels with rough side up (painted grid lines). Use grid lines on panel for 2" nails 6" spaced apart on edges and 12" apart inside panels. FINISH Your floor panels are now installed.
  • Page 16 IMPORTANT! Check the foor frame is level after installing foor panels. Re-level if needed. • The foor should be used as a stable work surface for wall construction. • Organize your assembly procedure during the build process HINT: to avoid over-handling of the walls. BACK WALL GABLE WALL LEFT...
  • Page 17 LEFT WALL PARTS REQUIRED: 1-1/4" (3,2 cm) 2 x 3 x 76-1/4" (5 x 7,6 x 194 cm) Arrange parts on the flat side on floor, as shown (Fig. A,B). Panel should be primed side down (Fig. B). Edges of panel should be flush to MM. Secure panel to MM with 1-1/4"...
  • Page 18 LEFT WALL PARTS REQUIRED: 1-1/4" (3,2 cm) 2 x 3 x 70-1/2" (5 x 7,6 x 179 cm) Arrange parts on the flat side on floor, as shown (Fig. A, B). Panel should be primed side down (Fig. B). Edges of panel should be flush to NO. Secure panel to NO with 1-1/4"...
  • Page 19 LEFT WALL PARTS REQUIRED: 1-1/2" (3,8 cm) LEFT WALL REAR ASSEMBLY 2 x 3 x 13" (5 x 7,6 x 33 cm) 2 x 3 x 32-1/2" (5 x 10 x 83 cm) 2 x 3 x 96" (5 x 7,6 x 244 cm) Arrange KZ and PT on flat on floor, as shown.
  • Page 20 LEFT WALL PARTS REQUIRED: 1-1/2" (3,8 cm) 2 x 3 x 29-1/2" (5 x 10 x 75 cm) 2 x 3 x 21-1/2" (5 x 7,6 x 55) 2 x 3 x 96" (5 x 7,6 x 244 cm) TEMPORARY SPACER 3/4"...
  • Page 21 LEFT WALL PARTS REQUIRED: 1-1/2" (3,8 cm) LEFT WALL FRONT ASSEMBLY 2 x 3 x 13" (5 x 7,6 x 33 cm) Place panel onto frame with the primed side up. Secure with 1-1/2" nails spaced 6" apart on edges and 12" apart inside panel. Secure RK with (3) 1-1/2"...
  • Page 22 RIGHT WALL PARTS REQUIRED: 1-1/4" (3,2 cm) 2 x 3 x 76-1/4" (5 x 7,6 x 194 cm) Arrange parts on the flat on floor ,as shown (Fig. A, Fig. B). Panel should be primed side down (Fig. B). Edges of panel should be flush to MM. Secure with 1-1/4"...
  • Page 23 RIGHT WALL PARTS REQUIRED: 1-1/4" (3,2 cm) 2 x 3 x 70-1/2" (5 x 7,6 x 179 cm) Arrange parts on the flat on floor, as shown (Fig. A,B). Panel should be primed side down (Fig. B). Edges of panel should be flush to NO. Secure with 1-1/4"...
  • Page 24 RIGHT WALL PARTS REQUIRED: 1-1/2" (3,8 cm) RIGHT WALL REAR ASSEMBLY 2 x 3 x 13" (5 x 7,6 x 33 cm) 2 x 3 x 32-1/2" (5 x 10 x 83 cm) 2 x 3 x 96" (5 x 7,6 x 244 cm) Arrange KZ and PT on the flat side on the floor.
  • Page 25 RIGHT WALL PARTS REQUIRED: 1-1/2" (3,8 cm) 2 x 3 x 32-1/2" (5 x 10 x 83 cm) 2 x 3 x 21-1/2" (5 x 7,6 x 55) TEMPORARY SPACER 5/8 x 3 x 14" (1,6 x 7,6 x 35,5 cm) Install KZ flush on PT.
  • Page 26 RIGHT WALL PARTS REQUIRED: 1-1/2" (3,8 cm) RIGHT WALL FRONT ASSEMBLY 2 x 3 x 13" (5 x 7,6 x 33 cm) Place panel onto frame primed side up. Secure panel with 1-1/2" nails spaced 6" apart on edges and 12" apart inside panel. Secure RK with (3) 1-1/2"...
  • Page 27 BACK WALL PARTS REQUIRED: 3" (7,6 cm) 2 x 3 x 66-1/2" (5 x 7,6 x 169 cm) 2 x 3 x 46-1/2" (5 x 7,6 x 118 cm) 2 x 3 x 94-1/2" (5 x 7,6 x 240 cm) Arrange parts on edge on floor, as shown.
  • Page 28 BACK WALL PARTS REQUIRED: 2" (5 cm) 3/8 x 48 x 72" 3/4" GAUGE (1 x 122 x 183 cm) BLOCK 2 x 3 x 13" (5 x 7,6 x 33 cm) as spacer Ensure your wall frame is square by installing (1) panel and squaring frame. Place the 48 x 72"...
  • Page 29 BACK WALL PARTS REQUIRED: x192 2" (5 cm) 3/8 x 48 x 72" (1 x 122 x 183 cm) 3/4" GAUGE 2 x 3 x 13" (5 x 7,6 x 33 cm) as spacer BLOCK Place center 48" panel on frame with primed side facing up. Secure with 2"...
  • Page 30 FRONT WALL PARTS REQUIRED: 3" (7,6 cm) 2 x 3 x 14-1/2" (5 x 7,6 x 36,8 cm) 2 x 3 x 62-1/2" (5 x 7,6 x 158,8 cm) 2 x 3 x 46-1/2" (5 x 7,6 x 118 cm) 2 x 3 x 68"...
  • Page 31 OVERHANG PANELS PARTS REQUIRED: 1-1/4" (3,2 cm) 2 x 3 x 7-7/8" (5 x 7,6 x 20 cm) 3/8 x 7-7/8 x 94-1/2" (0,9 x 20 x 240 cm) 3/8 x 7-7/8 x 46-1/2" (0,9 x 20 x 118 cm) Orient (2) overhang panels with the primed side up.
  • Page 32 FRONT WALL PARTS REQUIRED: 1-1/4" (3,2 cm) Overhang Overhang Place overhang on wall panel, flush to back side and ends. Place overhang flush to 2 x 3 (Fig. A.) Screw into top plate using (14) 1-1/4" (3,2 cm) screws. Keep overhang flush to 2 x 3 (Fig. B.) Flush Make sure overhangs are fush to 2 x 3 the...
  • Page 33 FRONT WALL PARTS REQUIRED: 2" (5 cm) 3/4" GAUGE BLOCK Ensure your wall frame is square by installing (1) panel and squaring frame. BEGIN Place the panel onto wall frame flush under overhang with primed side up as shown (Fig. A). Use the gauge block to mark the 3/4"...
  • Page 34 FRONT WALL PARTS REQUIRED: 2" (5 cm) 3" (7,6 cm) 3/8 x 15-7/8 x 72" (1 x 40 x 183 cm) 2 x 3 x 96" (5 x 7,6 x 244 cm) Continue installing panels primed side up flush under overhang (Fig.
  • Page 35 LEFT WALL INSTALLATION PARTS REQUIRED: 3" (7,6 cm) 3" (7,6 cm) 2" (5 cm) 2 x 3 x 96" (5 x 7,6 x 244 cm) BEGIN Center left wall assembly on the 96" (244 cm) floor dimension. Use PT as a temporary brace. Secure with (2) 3"...
  • Page 36 BACK WALL INSTALLATION PARTS REQUIRED: 2" (5 cm) 3" (7,6 cm) 3" (7,6 cm) BEGIN Center back wall on floor, side-to-side. 1-1/2" (3,8 cm) panel overhang is at top. Nail the lower back wall corner to the side wall trim with (1) 2" nail (Fig. A). 1-1/2"...
  • Page 37 RIGHT WALL INSTALLATION PARTS REQUIRED: 2" (5 cm) 3" (7,6 cm) 3" (7,6 cm) BEGIN Center right wall on floor, side-to-side. Nail the lower back wall corner to the right wall trim. Secure with (1) 2" nail (Fig. A). 2" (5 cm) Trim Nail Fig.
  • Page 38 FRONT WALL INSTALLATION PARTS REQUIRED: 3" (7,6 cm) 3" (7,6 cm) 2" (5 cm) x26 BEGIN Center front wall on floor side-to-side. Check the 64" door opening is held before nailing. 64" 2" (5 cm) (162,6 cm) Nail Nail the front wall flush to the floor using 2"...
  • Page 39 FRONT WALL PARTS REQUIRED: 3" (7,6 cm) 2 x 3 x 22-1/2" (5 x 7,6 x 57 cm) On inside of front wall, install LV flush to window opening. Secure with 3" nails, as shown. Flush to 1-1/2" opening (3,8 cm) 3"...
  • Page 40 FRONT WALL PARTS REQUIRED: 3" (7,6 cm) 2 x 3 x 68" (5 x 7,6 x 173 cm) 2 x 3 x 13" (5 x 7,6 x 33 cm) Remove temporary support in door opening. Assemble RK to OT with (1) 3" screw (Fig. A). FINISH Use OT and RK as a temporary brace to support top plate.
  • Page 41 RAFTER JIG PARTS REQUIRED: 3" (7,6 cm) 2 x 3 x 13" (5 x 7,6 x 33 cm) 3/8 x 5-3/8 x 5-1/2" (1 x 13,6 x 14 cm) Make a rafter jig to make sure all rafters are assembled the same. Measure from corner of backwall and RK (already installed) as shown.
  • Page 42 RAFTERS PARTS REQUIRED: x120 2" (5 cm) 8 x 24" (20 x 61 cm) Gusset 2 x 4 x 65-5/8" (5 x 10 x 167 cm) Rafter 2 x 4 x 46-13/16" (5 x 10 x 119 cm) Rafter You will assemble (5) rafters. Place rafter parts on Jig as shown. Ends of rafters must touch together at the peak.
  • Page 43 TRIM CAPS PARTS REQUIRED: 1-1/4" (3,2 cm) 2-5/8 x 5-3/8 x 5-1/2" (6,6 x 13,6 x 14 cm) 1 Left / 1 Right Install trim caps with primed side out and flush with soffit. Secure with (2) 1-1/4" screws on both sides, as shown. Install with primed side facing out.
  • Page 44 TRIM PARTS REQUIRED: 1-1/4" (3,2 cm) 2 x 3 x 65" (5 x 7,6 x 165 cm) Install the back trim first, flush to back panel, trim, and panel edge as shown. Working inside, secure trim with (8) 1-1/4" screws spaced 9" apart. 9"...
  • Page 45 TRIM PARTS REQUIRED: 1-1/4" (3,2 cm) 2 x 3 x 46-7/8" (5 x 7 x 119 cm) Install the front trim, flush to peak and panel edge as shown. Secure with (6) 1-1/4" screws from inside shed. Repeat steps for opposite side wall. Flush to Flush panel...
  • Page 46 ROOF PARTS REQUIRED: 2" (5 cm) 3" (7,6 cm) Mark top of wall frames to measurement shown. Locate Rafter centered on marks. Hold rafter end flush to back wall and overhang. Secure from under overhang with (2) 2" screws. (Fig. A) Secure opposite end through panel into rafter end using (1) 2"...
  • Page 47 TRIM PARTS REQUIRED: 2" (5 cm) 3/4 x 2-1/2 x 72-3/8" (1,9 x 6,3 x 184 cm) Arrange parts as shown and attach to ends of rafters with (2) 2" finishing nails (Fig. A). Trim is flush at ends to side wall trim. 72-3/8"...
  • Page 48 DOOR SUPPORT PARTS REQUIRED: 2" (5 cm) 5/8 x 3-7/8 x 96" (1,6 x 9,8 x 244 cm) Use exterior-rated wood glue behind support. Apply to top plate and end of rafter Position support flush with bottom edge of top plate and side wall panel and attach with 2"...
  • Page 49 WORKBENCH PARTS REQUIRED: 2" (5 cm) 7/16 x 20 x 96" (1,1 x 51 x 244 cm) 2 x 3 x 96" (5 x 7,6 x 244 cm) Position bench top to PT flush at ends and maintaining 1/4" (6 mm) overhang, as shown (Fig. A). Secure with 2"...
  • Page 50 SHELVES PARTS REQUIRED: 2" (5 cm) 7/16 x 11-3/4 x 96" (1,1 x 30 x 244 cm) 2 x 3 x 96" (5 x 7,6 x 244 cm) You will build (2) shelves. Position shelf to PT flush at ends and maintaining 1/4"...
  • Page 51 PEGBOARD PARTS REQUIRED: 3/4" (19 mm) 23-7/8 x 96" (61 x 244 cm) Peg Board 1 x 3 x 96" (2,5 x 7,6 x 244 cm) Position pegboard to 1 x 3 flush at ends and edge, as shown (Fig. A). Install pegbord with rough side up Secure with 3/4"...
  • Page 52 WORKBENCH PARTS REQUIRED: 20" 3" (7,6 cm) (51 cm) 2" (5 cm) 2 x 3 x 24-1/16" (5 x 7,6 x 61 cm) Place workbench into gap in side wall upright. Nail using 2" nails, as shown. Level and attach KK to upright and workbench, using (4) 3"...
  • Page 53 PEGBOARD PARTS REQUIRED: 3" (7,6 cm) 2" (5 cm) 2 x 3 x 13" (5 x 7,6 x 33 cm) 1" (25 mm) Install RK at back corner of workbench into outside trim. Secure with 3" screws, as shown. Place pegboard onto workbench with 1 x 3 Trim to bottom, facing out. Secure pegboard at top with (13) 1"...
  • Page 54 SHELVES PARTS REQUIRED: 2" (5 cm) 11-3/4" (30 cm) Place shelf into gap in side wall upright. Secure with 2" nails, as shown. You will screw the ends of workbench and shelf from outside of shed. Shelf 10-1/2" 11-3/4" Approximately (30 cm) Window...
  • Page 55 SHELVES PARTS REQUIRED: 3" (7,6 cm) Measure and mark outside nail locations for workbench and shelf on back wall, as shown. Assistance may be required to hold shelf and workbench level. Nail through marks on wall panel into ends of workbench and shelf supports. FINISH Repeat procedure at opposite ends of shelf and workbench.
  • Page 56 SHELVES PARTS REQUIRED: 1-1/4" (3,2 cm) 3" (7,6 cm) 11-3/4" (30 cm) 3" (7,6 cm) 2 x 3 x 13" (5 x 7,6 x 33 cm) Install RK flush against top plate and outer wall panel. Secure with 3" screws, as shown (Fig. A). Place shelf into gap in side wall upright.
  • Page 57 ROOF PANELS PARTS REQUIRED: 2" (5 cm) 7/16 x 48 x 96" (1,1 x 122 x 244 cm) 3/4" GAUGE BLOCK Roof panels may cause serious injury until securely fastened. You must square the roof by attaching (1) panel fist. You will use the panels’ long edge as a lever to bring your roof into square.
  • Page 58 ROOF PANELS PARTS REQUIRED: x108 2" (5 cm) 3/4" GAUGE BLOCK 7/16 x 47-7/8 x 48" 7/16 x 48 x 96" (1,1 x 122 x 122 cm) (1,1 x 122 x 244 cm) Keep spacing between the center of the rafters at the lower edge of the panel and secure with (1) 2"...
  • Page 59 ROOF PANELS PARTS REQUIRED: 2" (5 cm) 7/16 x 18 x 96” (1,1 x 46 x 244 cm) 3/4" GAUGE BLOCK 7/16 x 18 x 48" (1,1 x 46 x 122 cm) Attach 18 x 96" panel as shown flush to panels and 3/4" on rafter (Fig. A) and with 3/8"...
  • Page 60 DOORS PARTS REQUIRED: 3" (5 cm) x8 69" Door Stiffener (175,3 cm) 2 x 3 x 68" (5 x 7,6 x 173 cm) HINT: Look for 3/8" SPACER attached to doors. Left Door Right Door BEGIN Orient parts as shown on flat surface. 3/8"...
  • Page 61 DOORS PARTS REQUIRED: 3" (7,6 cm) 69" Door Stiffener (175,3 cm) Attach temporary support OO with (3) 3" screws. Measure 72" (182,9 cm) down from underside of overhang (Fig. A). Locate center of door opening and mark. Fig. A 72" from overhang 72"...
  • Page 62 DOORS PARTS REQUIRED: 3/4" (1,9 cm) Bagged separately/ 64" Metal Threshold special coating BEGIN Reinforce the door trim with 3/4" screws through door panel into trim (Fig. A). Locate screws as shown (Fig. B). Use (2) screws at seams. Door Panel Remove 3/8"...
  • Page 63 DOORS PARTS REQUIRED: 2" (5 cm) 69" Door Stiffener (175,3 cm) BEGIN With left door closed, center a weatherstrip OO vertically on the left door in the door opening (Fig. A). OO will offset the left door 1" OUT past the door trim 1"...
  • Page 64 DOOR HARDWARE PARTS REQUIRED: 3/8" (9 mm) Drill Bit 3/4" (1,9 cm) x8 3/4" (1,9 cm) x7 BEGIN Mount (1) barrel bolt flush at top of OO on left door using 3/4" screws as shown (Fig A). Mount the second barrel bolt flush at bottom of OO on left door using 3/4" screws as shown (Fig B).
  • Page 65 COLLAR TIE PARTS REQUIRED: 3" (7,6 cm) 2 x 3 x 68" (5 x 7,6 x 173 cm) Position and level OT on rafter that is centered over door opening. Glue OT and attach with 3" (7,6 cm) nails as shown. Level Flush Flush...
  • Page 66 SHUTTERS PARTS REQUIRED: 1" (25 mm) 5/8 x 3 x 24-3/4" (1,6 x 7,6 x 62,9 cm) 5/8 x 3 x 8" (1,6 x 7,6 x 20 cm) Position parts primed side-down on floor, as shown. You will build (2) shutters the same. Secure with 1"...
  • Page 67 WINDOW PARTS REQUIRED: 1-1/4" (3,2 cm) Window 23-3/4" x 16-1/2" (63 x 42 cm) Seal window with high-quality exterior- grade caulk. Attach window using (4) 1-1/4" (3,2 cm) screws as shown. Mark center of window frame as shown. HINT: Caulk behind frame near edge before installing.
  • Page 68 SHUTTERS / WINDOW TRIM PARTS REQUIRED: 2" (5 cm) 3/4" (19 mm) 5/8 x 3 x 21-3/4" (1,6 x 7,6 x 55 cm) Locate (1) shutter centered on marks as shown. First, attach shutter using a 2" finish nail at "dot". Nail into wall frame inside.
  • Page 69 DOOR TRIM PARTS REQUIRED: 3/4" (19 mm) 5/8 x 4 x 14" (1,6 x 10 x 35,5 cm) Position parts on lower pane of Door Panel, as shown. Attach each using (2) 3/4" (19 mm) screws as shown. FINISH You have finished installing your door trim.
  • Page 70 PAINT & CAULK - NOT INCLUDED - • Use acrylic latex caulk that is paintable. Caulk at all horizontal and vertical seams, between the trim and walls, and all around the door trim. • Use a high quality exterior acrylic latex paint. When painting your building, there are a few key areas that can be easily overlooked that must be painted: •...
  • Page 71 SHINGLES - NOT INCLUDED - • Follow directions provided by manufacturer and these instructions. Familiarize yourself with a 3-Tab Shingle. Notch Notch SHINGLE NAIL PATTERN 1/2" 1" Sealing Strip (1,3 cm) 1" (2,5 cm) (2,5 cm) Half A Rain Slot Full Rain Slot NAILS NEVER DRIVE FASTENERS INTO OR ABOVE SEALING STRIPS.
  • Page 72 SHINGLES continued... Beginning at front of shed, install first row of shingles with notch at 1" past roof edge or flush with drip edge. Roof Deck FRONT OF BACK OF SHED SHED 1" (2,5 cm) Flush with starter row. Notch - or - Drip Edge Flush with starter row.
  • Page 73 SHINGLES continued... Continue installing rows of shingles to the peak. At the peak make sure there is a maximum of 5" or less to the rain slot, as shown below. If shingles overlap at ridge cut to peak with a utility knife. 5"...
  • Page 74 SHINGLES - RIDGE CAP • You will finish off the top of the roof with a ridge cap made from shingles. BEGIN Hint: Use cut-off pieces first. Cut shingles into THREE pieces. 2" 2" (5 cm) (5 cm 2" 2" 2"...
  • Page 75 SHINGLES - RIDGE CAP continued... Continue installing ridge cap to back of roof. Make sure there is 4" between the shingle-color and edge of shingles. 4" (10 cm) Trim cap off fush to shingles When you have 4" minimum of shingle color cut one piece to cap your roof. Cut at top of rain slot.
  • Page 76 16011-NG 12' x 8' Order Form CATEGORY PART DESCRIPTION PART SIZE PART ITEM # BUILDING QTY. PART ID Gable End Rafter Trim LONG 2 X 3 X 65" 22.5* B.E. TRIM Q 65002222000 Gable End Rafter Trim SHORT 2 X 3 X 46 7/8" 28* B.E. TRIM Q 46142828000 Corner trim SHORT Angle End / Sq.
