JMA AVANTCODE User Manual page 66

Fig.47

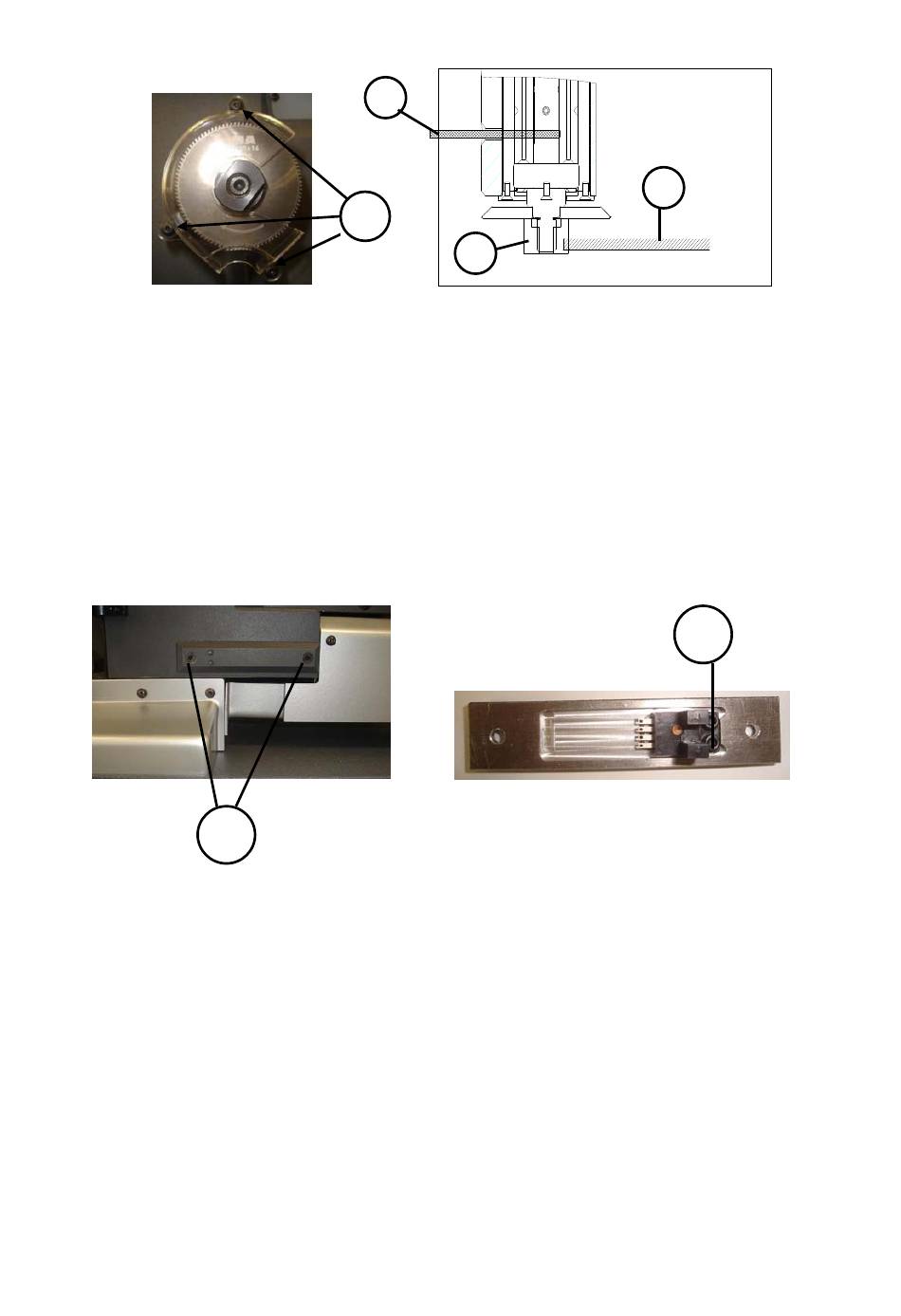

6.6 REPLACING THE CARRIAGE SENSOR
6.6.1 X AXIS
1) Turn the machine off at the main switch and disconnect the power cable.
2) Unfasten the two cover screws (T24) and the two screws holding the sensor (T25). (Fig.49,
Fig.50).
3) Change the sensor and tighten the screws holding the sensor and the cover.
Fig.49
T24
6.6.2 Y AXIS
1) Turn the machine off at the main switch and disconnect the power cable.
2) Release the rear guard covering the back of the machine.
3) Release the two screws (T26) that fasten the sensor. (Fig.51)
4) Change the sensor and screw it back in place.
T21
T20
T22
Fig.48
Fig.50
T23
T25
60
