6.4 REPLACING THE AUTOMATIC CLAMP SET
Proceed as follows to replace the set of clamps:
1) Once you have removed the automatic clamp, unfasten the two screws (T19) and remove
the set of clamps (Fig.45).
2) Insert the new set of clamps, making sure that they are supported against the inner
support.
3) Fasten the 2 screws to hold the set of clamps in place.
6.5 REPLACING THE MILLING TOOL
Proceed as follows to replace the milling tool:
1) Turn the machine off at the main switch and disconnect the power cable.
2) Lift the front plastic shield.
3) Unscrew the 3 screws (T20) holding the milling tool shield. (Fig.47)
4) Remove the protective shavings cover (P6). (Fig.46)
5) Insert the blocking rod (T21), included in the accessories box. (Fig.48)
6) Unscrew the mill bolt (T22) using the 18 mm spanner (T23).
(NB: Screws left)
7) Replace the mill, block the nut, remove the rod from the hole and replace the protective cover.
(NB: If you are installing a new milling tool, you have to calibrate it).
(See section 4.5.)

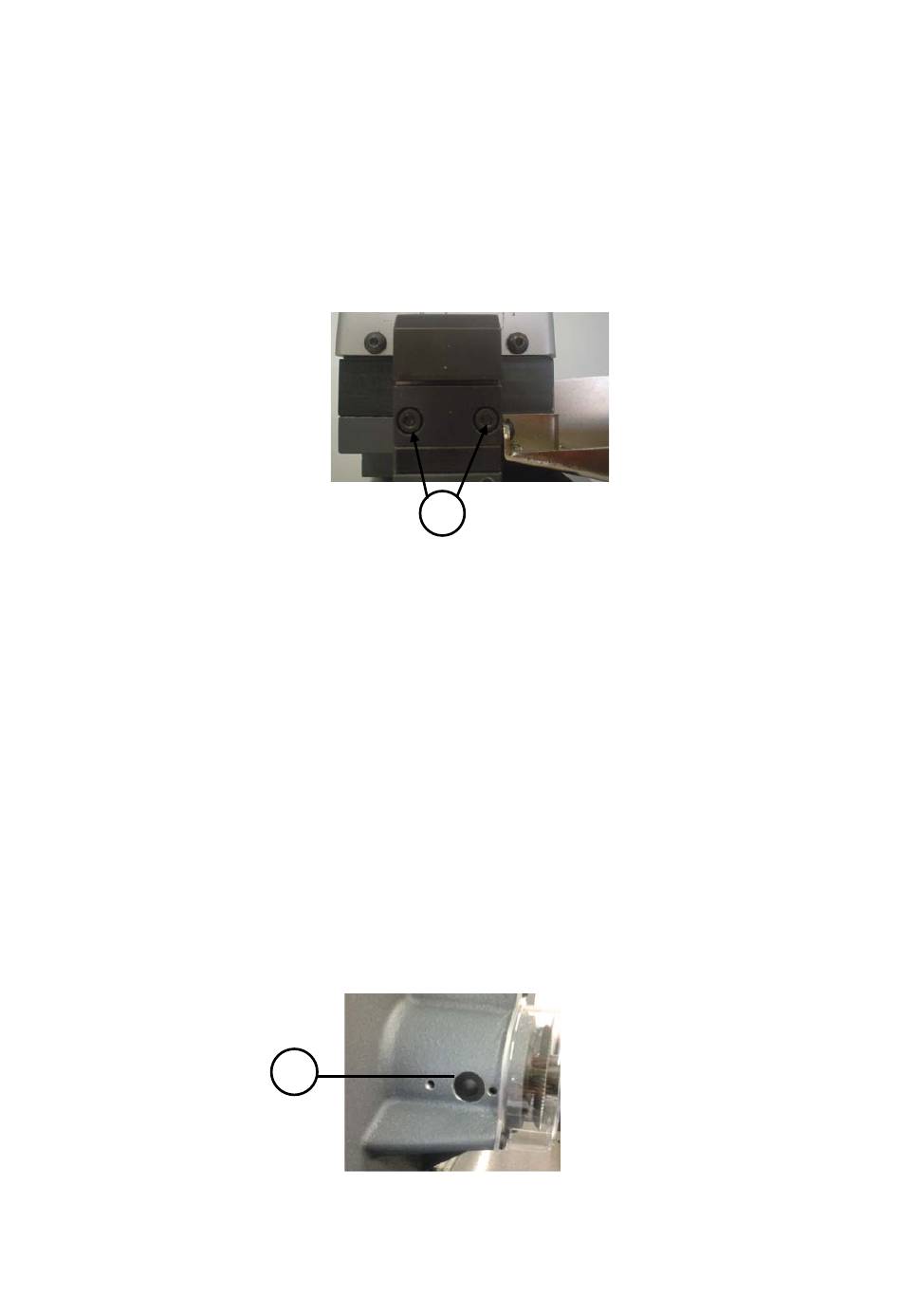

Fig.45
T19
P6
Fig.46
