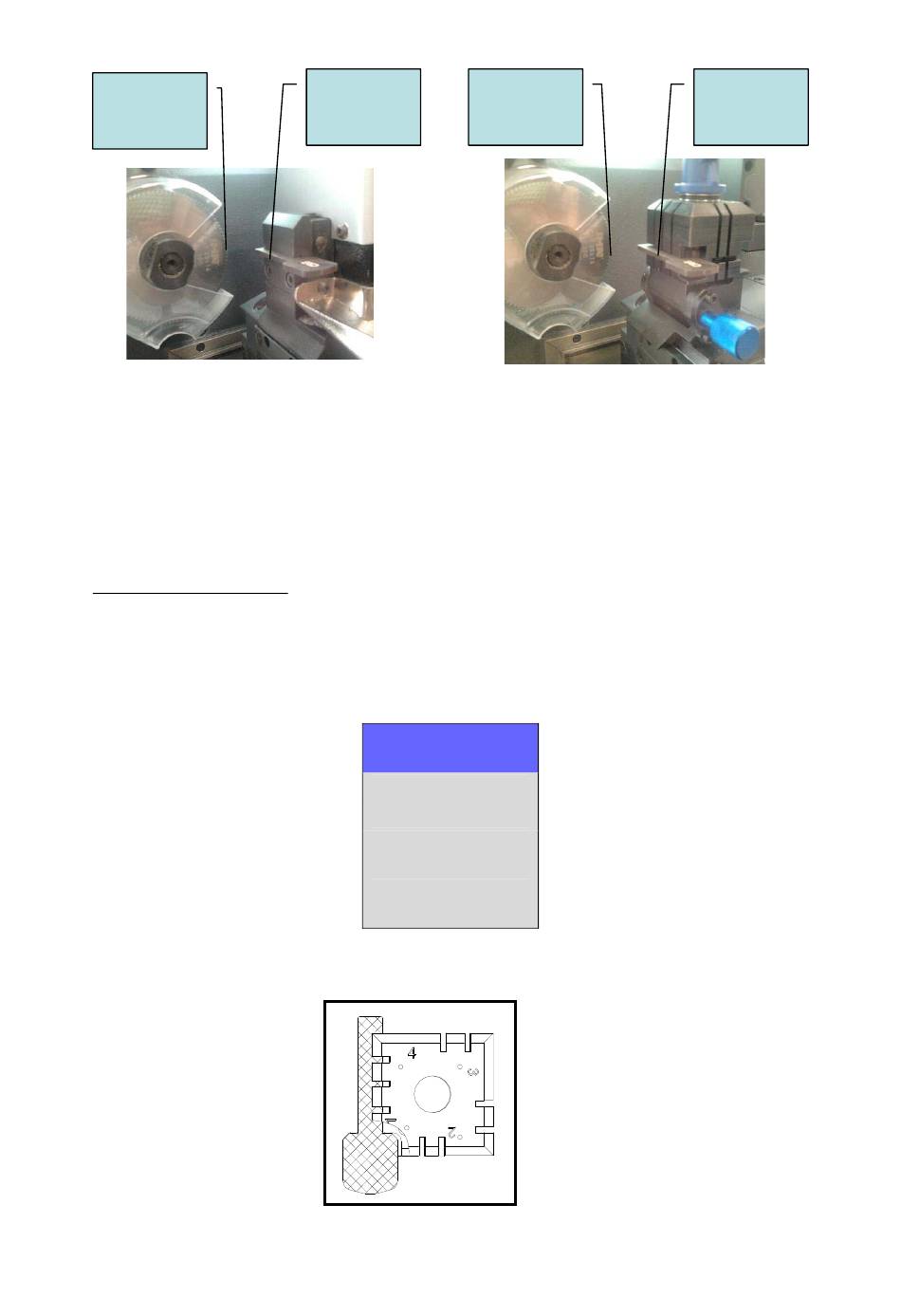

JMA AVANTCODE User Manual page 53

Area to
clean
Avantcode (Key Feeder)
Fig.36
The steps to follow to calibrate the clamp, reading clamp and feeder are as follows:
CALIBRATE MILLING TOOL
1. Select the Calibrate milling tool icon.
2. The following message appears, informing you of the type of milling tool and clamp to
use.
3. Open the clear shield and fasten the calibration template (CRG) in the clamp until it
reaches the tip of the clamp. (Fig.38)
Area to Area to
clean clean
CALIBRATE MILLING
TOOL
Milling tool FP16W
Clamp MP1
Insert
calibration tool
START/STOP
Fig.38
Area to
Avantcode (Standard)
Fig.37
clean
47
