Adjusting the height of the loading system: The height of the key exit can be adjusted by
4.
raising or lowering the feeder. Follow these steps to do so:

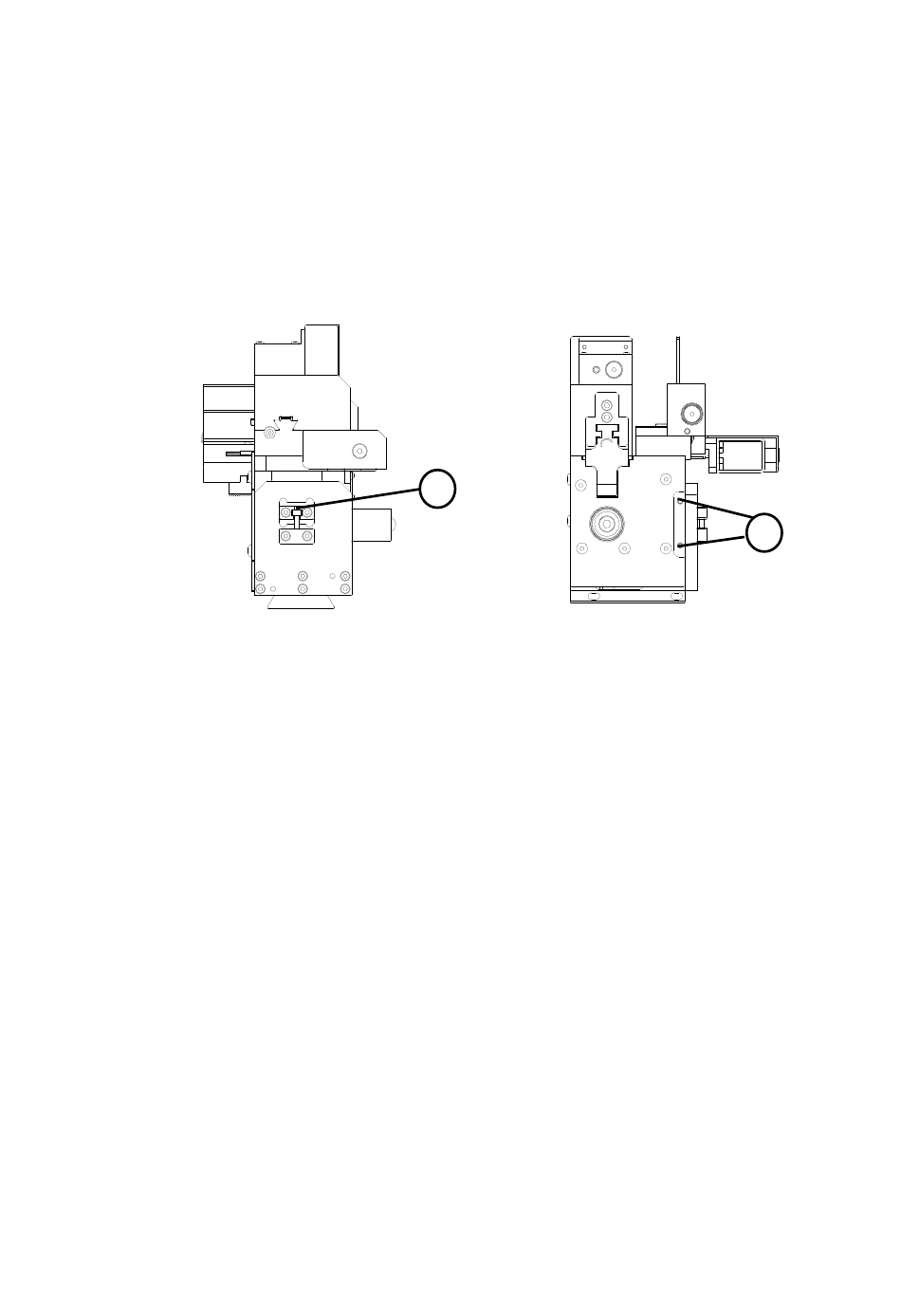

1. Loosen the screws (T4), turn the screw (T5) raise or lower the feeder.
2. Once you have adjusted the height, fasten the feeder in place by tightening the
screws (T4).
Fig.23
3.2.3 ASSEMBLY AND DISASSEMBLY OF THE AUTOMATIC CLAMP & FEEDER
The following section explains how to mount the key feeder.
1) Remove the cover: Loosen the setscrews (T6) until they extrude and remove the cover
(P4) from the dovetail (Fig.25).
2) Remove the standard clamp: Loosen the setscrews (T7) until they extrude and remove
the standard clamp unit (Fig.26).
3) Insert the automatic clamp: Insert the automatic clamp in the dovetail as far as it will
go and then tighten the setscrews (T8) to fix the clamp in place (Fig.27).
4) Insert the automatic feeder: Insert the automatic feeder as far as it will go and tighten
the setscrews (T9) to fix the feeder in place (Fig.28)..
T5
Fig.24
T4
