USING THE FEEDER

The loading system places the key in the automatic clamp when the machine carriages advance
towards the feeder. The parameters of the key in the feeder are the same as that in the automatic
clamp. You can place approximately 50 keys in the feeder.
Points to remember when placing and adjusting keys in the feeder:
Placing the key in the feeder.
1.
The keys must be placed with the bow towards the left and the back towards the operator (Fig.22)
Adjusting the key blade.
2.
Adjust the screw (T2) to support the part (P1) on the key blade and then move away by about 1
mm (Fig 21-22).
Adjusting the key bow.
3.
Loosen the screw (T3) and turn the part (P2) to support the plate (P3) on the key bow and then
move away by about 1 mm (Fig.21-22).
T2

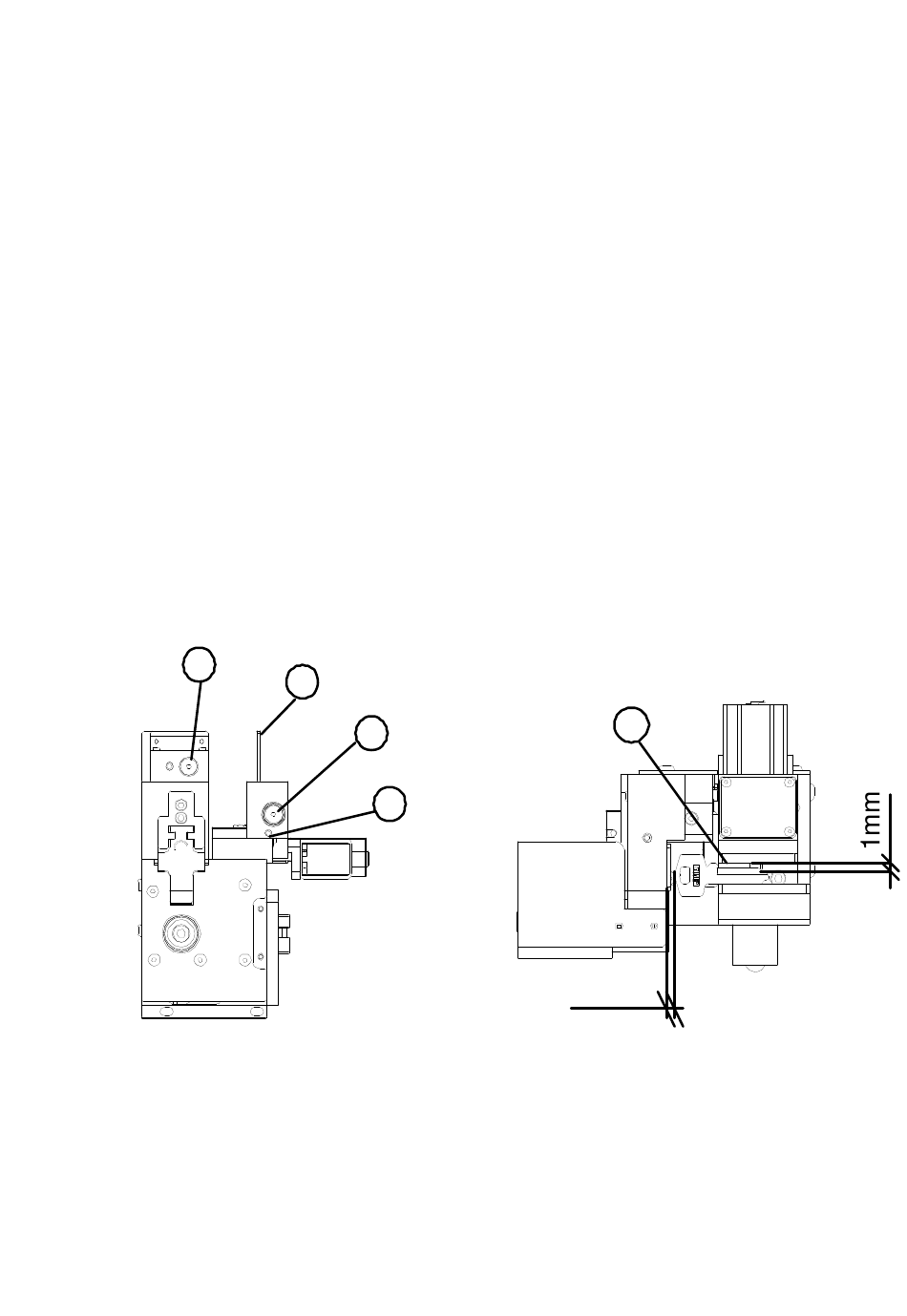

Fig.21
P3
P2
T3
P1
1mm
Fig.22
