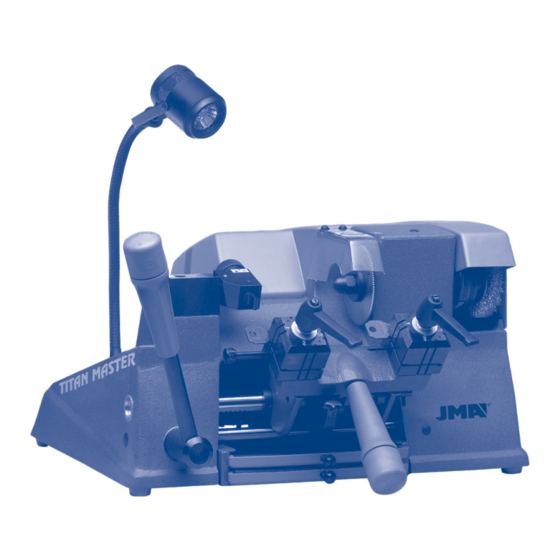

MÁQUINA DUPLICADORA TITAN-MASTER
Manual de instrucciones
KEY CUTTING MACHINE TITAN-MASTER
Instruction manual
KOPIERMASCHINE TITAN-MASTER
Anweisungshandbuch
MACCHINA DUPLICATRICE TITAN-MASTER
Manuale d'istruzione
MACHINE A TAILLER LES CLES TITAN-MASTER
Notice d'utilisation
MÁQUINA DUPLICADORA TITAN-MASTER
Manual de instruções

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TITAN MASTER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JMA TITAN MASTER

Summary of Contents for JMA TITAN MASTER

  • Page 1 MÁQUINA DUPLICADORA TITAN-MASTER Manual de instrucciones KEY CUTTING MACHINE TITAN-MASTER Instruction manual KOPIERMASCHINE TITAN-MASTER Anweisungshandbuch MACCHINA DUPLICATRICE TITAN-MASTER Manuale d’istruzione MACHINE A TAILLER LES CLES TITAN-MASTER Notice d'utilisation MÁQUINA DUPLICADORA TITAN-MASTER Manual de instruções...
  • Page 2 Indice / Index / Inhaltsverzeichnis / Indice / Index / Indice 1. Presentación y aspectos generales 1. Vorstellung und grundlegende begriffe 1.1 Generalidades 1.1 Allgemeines 1.2 Transporte y embalaje 1.2 Transport und verpackung 1.3 Etiqueta identificadora 1.3 Typenschild 2. Características de la máquina 2.

  • Page 3: General Points

    Presentation Machine and general points characteristics The TITAN-MASTER machine is a semi-automatic, highly General points robust and precise machine for cutting flat cylinder lock keys, vehicle keys, cruciform keys and special keys. The E.U. safety regulations currently in force have been taken into account in the design of the TITAN-MASTER Family of keys duplicating machine.

  • Page 4: Operation

    Operation and performance Machine adjustment Components and functional parts Sideways or depth adjustment of the machine is perfor- med in the following way: TAKE CARE! : Before touching anything when adjus- 2.5.1 Accesories See figure 4 ting the machine, switch off the main on-off switch so that the milling cutter cannot begin operating.
  • Page 5 3.2.2 Duplication of keys without shoulders Key duplication Insert the two wedges (2) (see figure no.10) in the vertical ATTENTION: In order to work in complete safety grooves (R) on each clamp, according to the length of the key during the different phases of duplication, follow these to be duplicated.

  • Page 6: Maintenance

    Maintenance and safety Safety recommendations When performing any maintenance the following should be adhered to: Do not attempt to start up or operate the machine No maintenance should ever be carried out whilst the until all the safety aspects, installation instructions, machine is operating.
  • Page 7 ALEJANDRO ALTUNA, S.A. B i d e k u r t z e t a , 6 2 0 5 0 0 M O N D R A G O N ( G u i p u z c o a ) S p a i n Figura 1 / Figure 1 / Abbildung 1/ Figura 1 / Figure 1 / Figura 1 Figura 2 / Figure 2 / Abbildung 2 / Figura 2 / Figure 2 / Figura 2 Figura 3 / Figure 3 / Abbildung 3 / Figura 3 / Figure 3 / Figura 3...
  • Page 8 EUROPA PORTUGAL Figura 6 / Figure 6 / Abbildung 6 / Figura 6 / Figure 6 / Figura 6 Figura 7 / Figure 7 / Abbildung 7 / Figura 7 / Figure 7 / Figura 7 Figura 8 / Figure 8 / Abbildung 8 / Figura 8 / Figure 8 / Figura 8 Figura 9 / Figure 9 / Abbildung 9 / Figura 9 / Figure 9 / Figura 9...
  • Page 9 Figura 10 / Figure 10 / Abbildung 10 / Figura 10 / Figure 10 / Figura 10 Figura 11 / Figure 11 / Abbildung 11 / Figura 11 / Figure 11 / Figura 11 Figura 12 / Figure 12 / Abbildung 12 / Figura 12 / Figure 12 / Figura 12...
  • Page 10 Figura 13 / Figure 13 / Abbildung 13 / Figura 13 / Figure 13 / Figura 13 Figura 14 / Figure 14 / Abbildung 14 / / Figura 14 / Figure 14 / Figura 14...
  • Page 11 Recambios comunes / Frequent Spares / Häufige ersatzteile / Comunes di recambios / Commun pieces / Comunes dos recambios CODE PORTUGUES ENGLISH DEUTSCH FRENCH SPANISH ITALIANO DX-97 ESCOVA BRUSH HOBEL BROSSE CEPILLO SPAZZOLA TI-11 CORREIA BELT RIEMEN COURROIE CORREA CINGHIA TI-128 GUARDA FRESA CUTTER COVER...
  • Page 13 Bidekurtzeta, 6. Apdo. 70 20500 Arrasate-Mondragón (Gipuzkoa) ESPAÑA Tel. + 34 943 79 30 00 / 943 79 33 32 Fax. + 34 943 79 72 43 www.jma.es e-mail:jma@jma.es...
