Part 3.23: ALINX Customized Fan

Because AXU5EV-P generates a lot of heat when it works normally, we
add a heat sink and fan to the chip on the board to prevent the chip from
overheating. The control of the fan is controlled by the ZYNQ chip. The control
pin is connected to the IO of the BANK44 (AG14). If the IO level output is high,
the MOSFET is turned on and the fan is working. If the IO level output is low,
the fan stops. The fan design on the board is shown in Figure 3-23-1.
The fan has been screwed to the FPGA development board before leaving
the factory. The power of the fan is connected to the socket of J42. The red is
positive and the black is negative.
65 / 66
ZYNQ Ultrascale + FPGA Board AXU5EV-P User Manual
Ethernet, USB2.0, BANK66 of Core Board
Ethernet, USB2.0, SD, DP, CAN, RS485

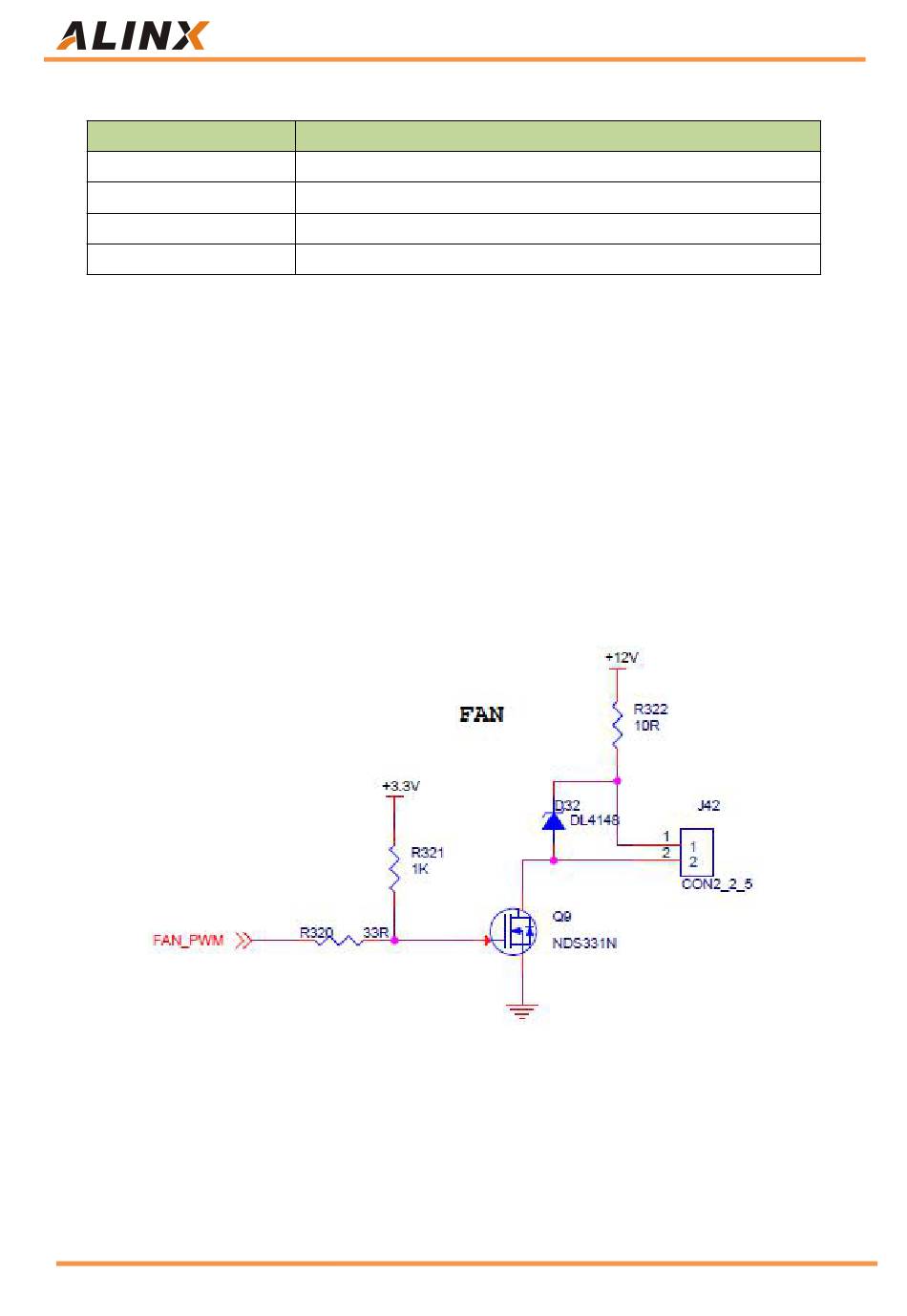

Figure 3-23-1：Fan Design Schematic
