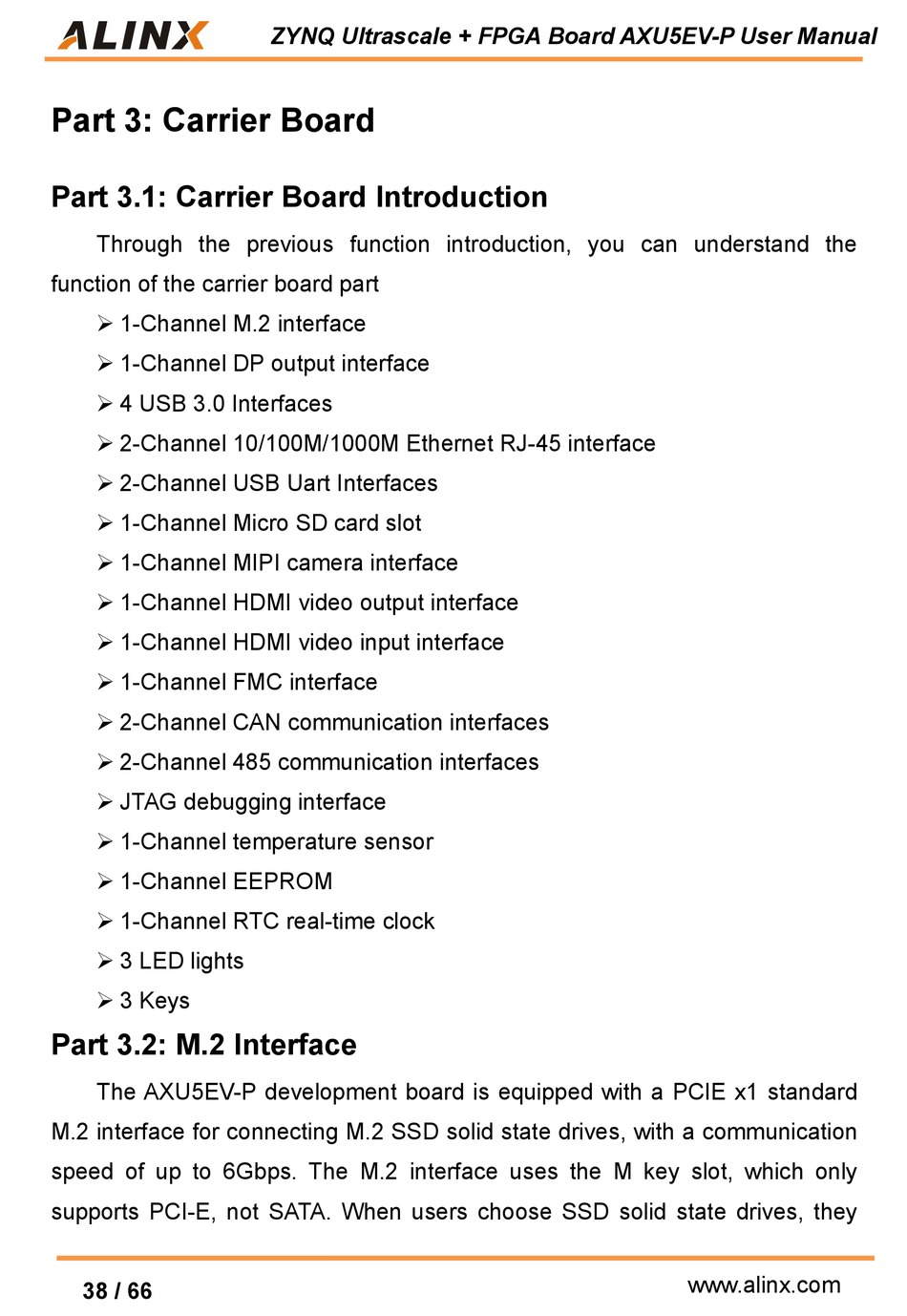

Part 3: Carrier Board

Part 3.1: Carrier Board Introduction

Through the previous function introduction, you can understand the
function of the carrier board part
 1-Channel M.2 interface
 1-Channel DP output interface
 4 USB 3.0 Interfaces
 2-Channel 10/100M/1000M Ethernet RJ-45 interface
 2-Channel USB Uart Interfaces
 1-Channel Micro SD card slot
 1-Channel MIPI camera interface
 1-Channel HDMI video output interface
 1-Channel HDMI video input interface
 1-Channel FMC interface
 2-Channel CAN communication interfaces
 2-Channel 485 communication interfaces
 JTAG debugging interface
 1-Channel temperature sensor
 1-Channel EEPROM
 1-Channel RTC real-time clock
 3 LED lights
 3 Keys

Part 3.2: M.2 Interface

The AXU5EV-P development board is equipped with a PCIE x1 standard
M.2 interface for connecting M.2 SSD solid state drives, with a communication
speed of up to 6Gbps. The M.2 interface uses the M key slot, which only
supports PCI-E, not SATA. When users choose SSD solid state drives, they
