Part 2.8: Power Supply
The power supply voltage of the ACU5EV core board is DC12V, which is
supplied by connecting the carrier board. The core board uses a PMIC chip
TPS6508641 to generate all the power required by the XCZU5EV chip. For the
TPS6508641 power supply design, please refer to the power supply chip

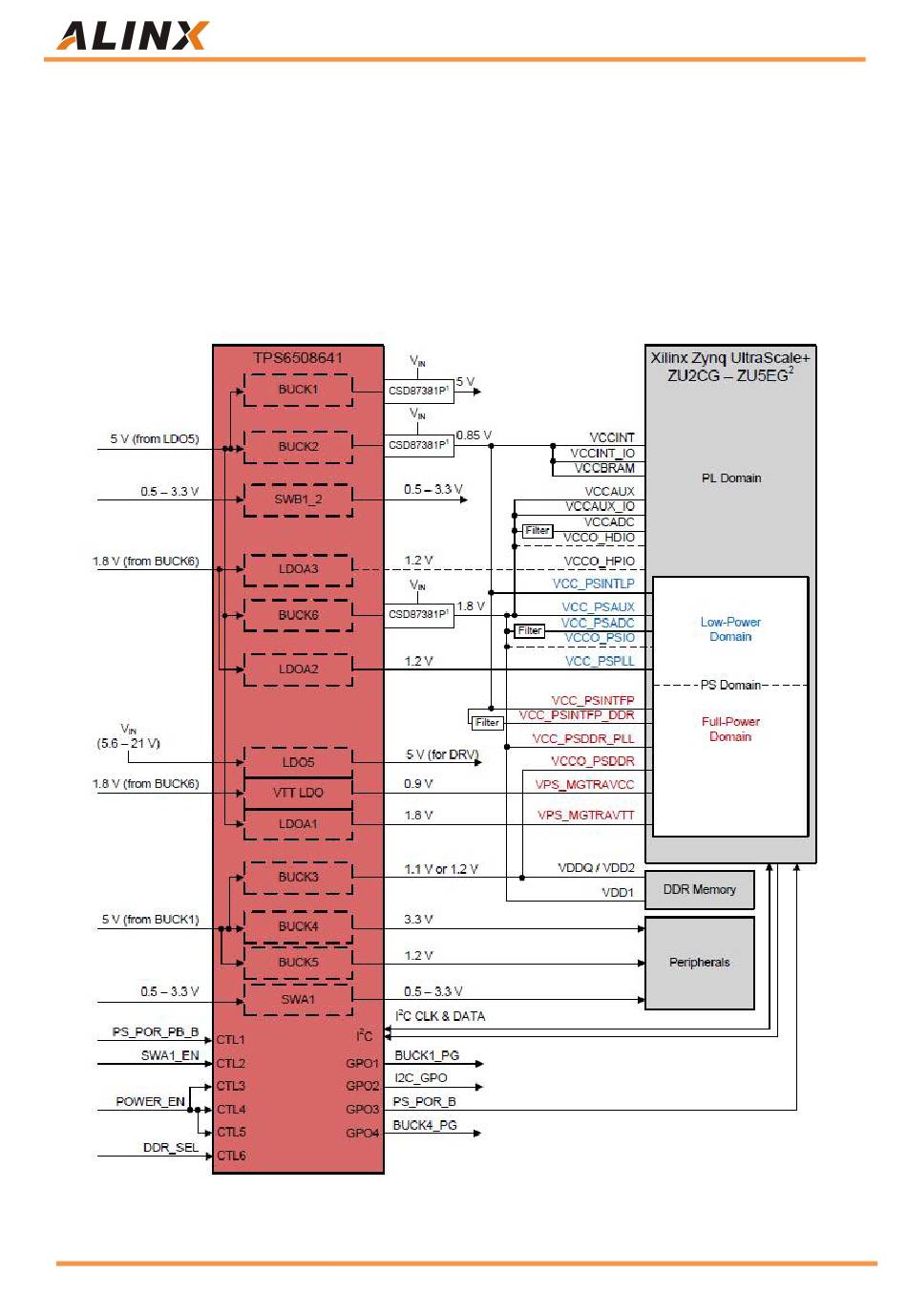

manual. The design block diagram is as follows:
In addition, the VCCIO power supply of BANK65 and BANK66 of
28 / 66
ZYNQ Ultrascale + FPGA Board AXU5EV-P User Manual
www.alinx.com
