TANK FILL SETTINGS

To adjust tank fill system settings:

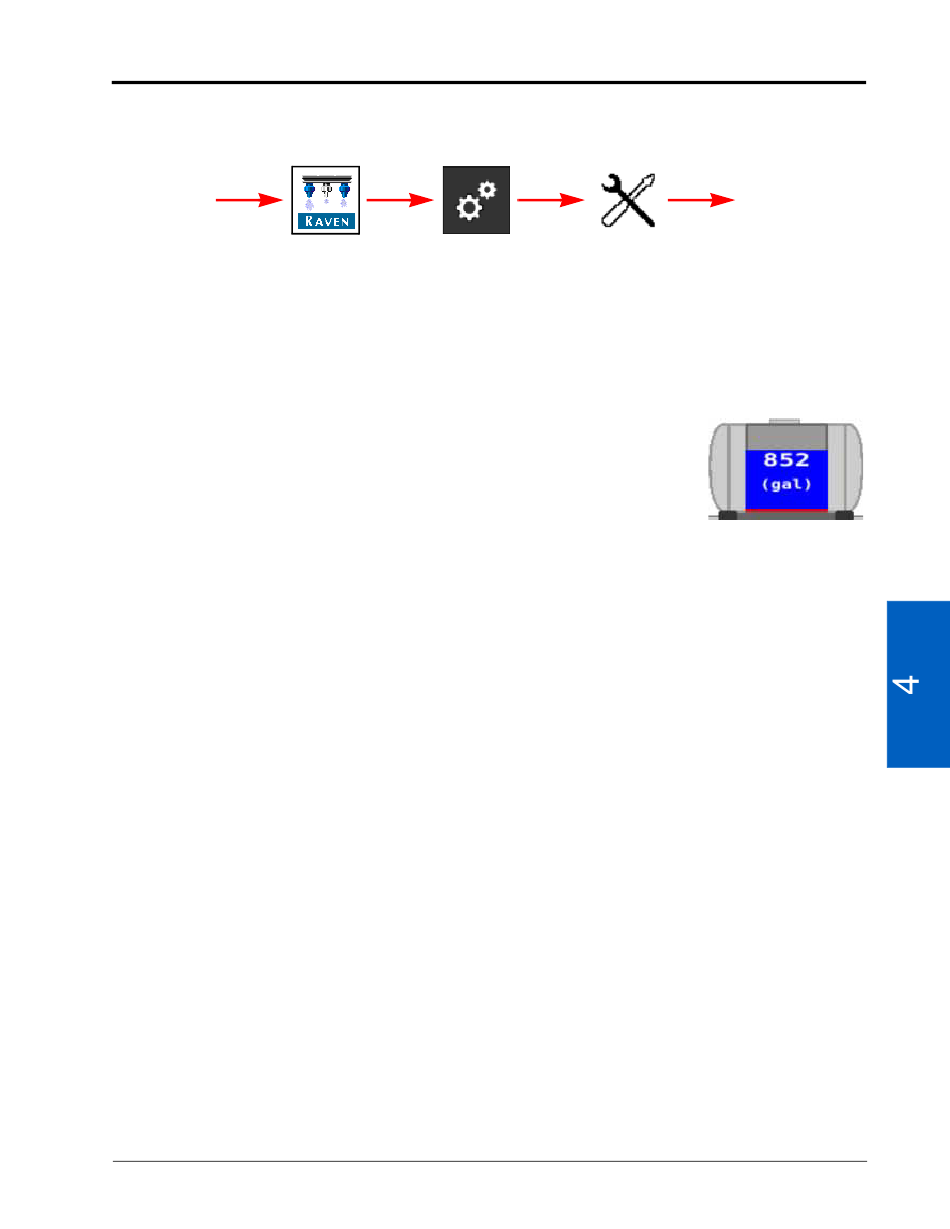

UT Menu
RCM - Sprayer Menu
1. Open the UT Menu and select the RCM - Sprayer Menu button.
2. Select the Tools Menu softkey along the right side of the display.
3. Select the System Settings tab along the top of the display.
4. Select the Tank Fill Settings button on the System Settings page. The following settings and options are
available to configure tank settings for the main product or injection products.
TANK CAPACITY
Enter the maximum tank capacity. The tank level indicator on the home screen uses the
maximum tank capacity and current tank level values to display the level of product
remaining in the tank.
NOTE: Tank capacity value cannot be changed during an active job.
CURRENT TANK LEVEL
Manually set or adjust the product volume in the tank. This feature may be useful to manually set the tank level if
products are added through the top of the tank, to correct the volume for a known amount of product added to
the tank, or to adjust the tank level to a different value other than the full tank capacity.
Either enter the current tank level manually upon refilling the tank or use the tank fill flow meter to automatically
measure the amount of product added to the tank.
LOW TANK LEVEL AND LOW TANK ALARM
Enter the low tank threshold to provide an indicator at the level which the tank is nearing empty. If the Alarm
option is enabled for the low tank threshold, an audible alarm will be activated when the calculated volume
remaining in the tank reaches the set threshold.
PRODUCT TYPE
Select Water-Based or Fertilizer for the type of product applied. The system will compensate for the different flow
characteristics of each liquid.
NOTE: The meter cal may need to be adjusted when changing product types. Refer to the Flow meter Re-
Calibration section on page 110.
MAX TANK FILL PWM
Set the maximum desired output for the tank fill pump controlled by a pulse width modulated (PWM) hydraulic
control valve. This setting limits how far the PWM valve will open.
System Setup: System Settings Tab
Tools Menu System
Settings
SYSTEM SETUP
Tank Fill
Settings
