CHAPTER 6

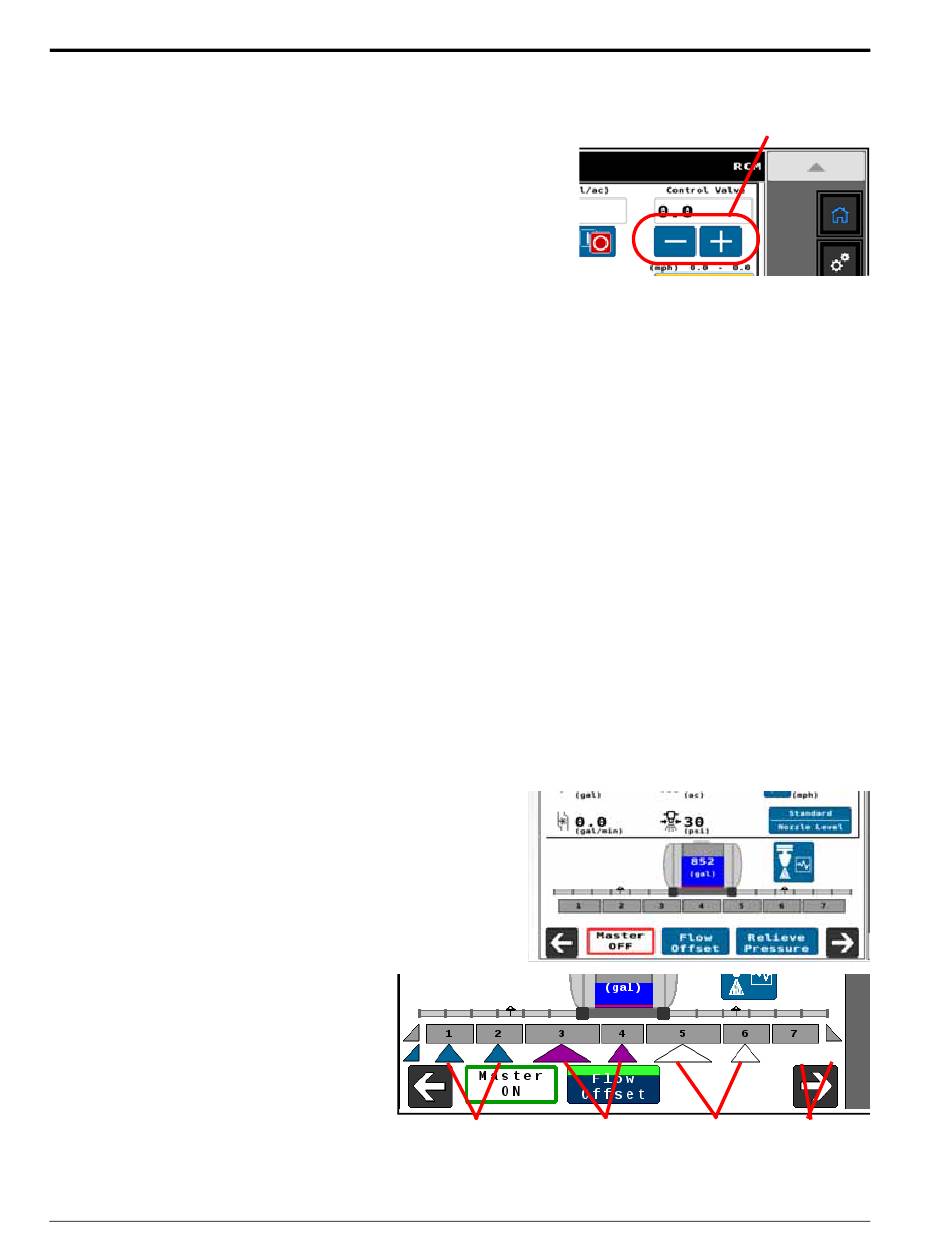

(5) Manual Control. When the system is toggled to the manual control mode, the preset buttons are replaced
with ± buttons.
•
The ± buttons on the Rates tab manually increase or
decrease the main product pump output.
NOTE: The main product pump manual control softkeys are
replaced by the injection pump manual control softkeys
when the injection pump product is selected.
•
The ± buttons on the Pressure tab increase or decrease
the NCV PWM duty cycle.
The system will continue to monitor and display the actual application rate on the home screen.

READOUTS

The readouts area of the RCM - Sprayer Home page is user configurable to allow the operator to set up the
information to be displayed for each product or pressure tab. Review the Display Setup Menu section on page 32
for additional assistance with customizing the information displayed on each tab and for details about the
available readouts.
PRESSURE GAUGE
When the RCM - Sprayer product is selected, the pressure gauge provides a visual representation of the actual
boom pressure and displays the allowable pressure deadband during field applications.
NOTE: When an injection product is selected, the pressure gauge displays the pressure at the injection
pump.

RCM - SPRAYER LOWER HOME SCREEN

The lower portion of the home screen provides on-screen indicators for switch status and remaining tank volume.
Refer to the following sections for additional information regarding the information provided in this area of the
home display.
TANK VOLUME INDICATOR
The system provides a calculated volume of product remaining in
the tank as a tank indicator in the application information area.
Select this indicator to access the Tank Fill Config prompt.
NOTE: A tank capacity value must be entered to allow the
tank volume indicator to display the tank level.
SECTION STATUS DISPLAY
The AIM Command FLEX™ II system provides
the status of each configured section on the
home display.
Section On/NCVs On. The section is on and
all NCVs are actively applying.
54
Section/
NCVs On
RCM - Sprayer and AIM Command FLEX™ II Calibration and Operation Manual
Section On/ Sections On/
Mixed NCVs NCVs Off
± Buttons
Sections/
NCVs Off
