APPENDIX A
•
spray tip height of 21 inches [53.3 cm]

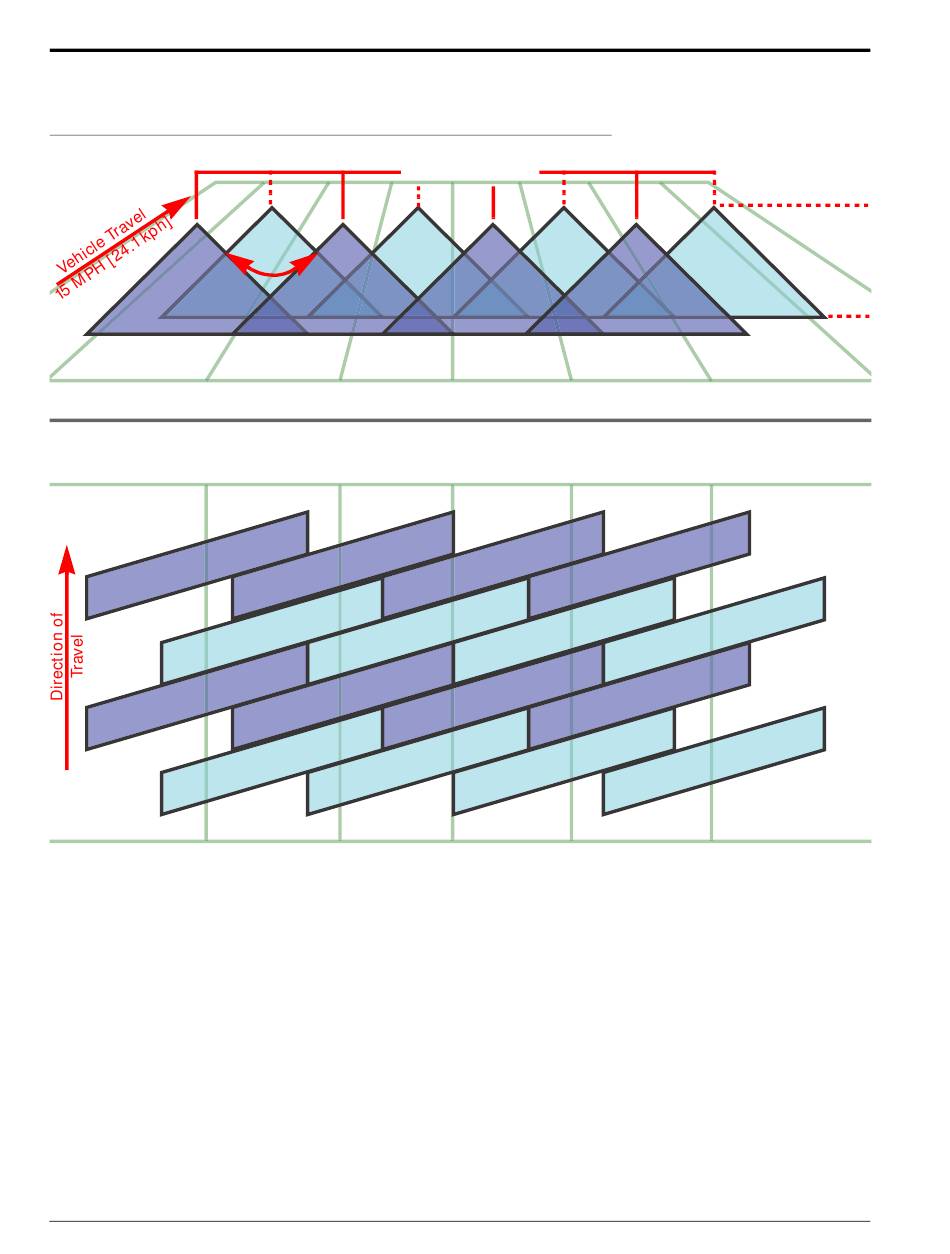

FIGURE 1. Alternating Spray Pattern and Even Area Coverage
NOTE: In Automatic control mode, the
to maintain the optimal application coverage within the operational ranges provided in the Tip
Selection and Application Speed Guide section on page 102.
CAUSES OF SKIPS USING AIM COMMAND FLEX™ II NOZZLE CONTROL
Operating the AIM Command FLEX™ II nozzle control system at or outside of the recommended operational
ranges may result in under-application or banding.
FOR EXAMPLE:
Under-application or horizontal banding may be observed if the operator from the previous example were to
toggle the application mode from Automatic to Manual and then increase the application speed from 15 mph
[24.1 kph] to 22 mph [35.4 kph] without manually increasing the nozzle control valve duty cycle.
100
Nozzle Spacing
20 inch [50.8 cm]
110°
Alternating Nozzle Spray Pattern
Alternating Spray Tip Pattern
Coverage View from Above
AIM Command FLEX™ II
RCM - Sprayer and AIM Command FLEX™ II Calibration and Operation Manual
nozzle control system will adjust the system
Spray Tip
Height
21 inch
[53.3 cm]
