SECTION NCV STATUS
The status of each NCV configured for control on the section is displayed at the bottom of the section diagnostics
prompt. The following NCV statuses may be displayed while viewing the section diagnostics prompt:
Normal. The NCV is functioning normally and no alarm conditions are currently present.
Caution. A minor NCV alert condition has been detected. The control system and NCV PWM is operating
normally, however, the system has detected that a condition exists which could impact the current
application.
Critical. A critical NCV condition has caused the NCV to shut down. The NCV is not responding as
expected and the operator should cease application and troubleshoot the issue before resuming
operations.
Not Calibrated. The NCV section is not calibrated.
NOTE:Refer to Chapter 9, Troubleshooting, for additional assistance with diagnostic trouble codes and
using the DTC list.

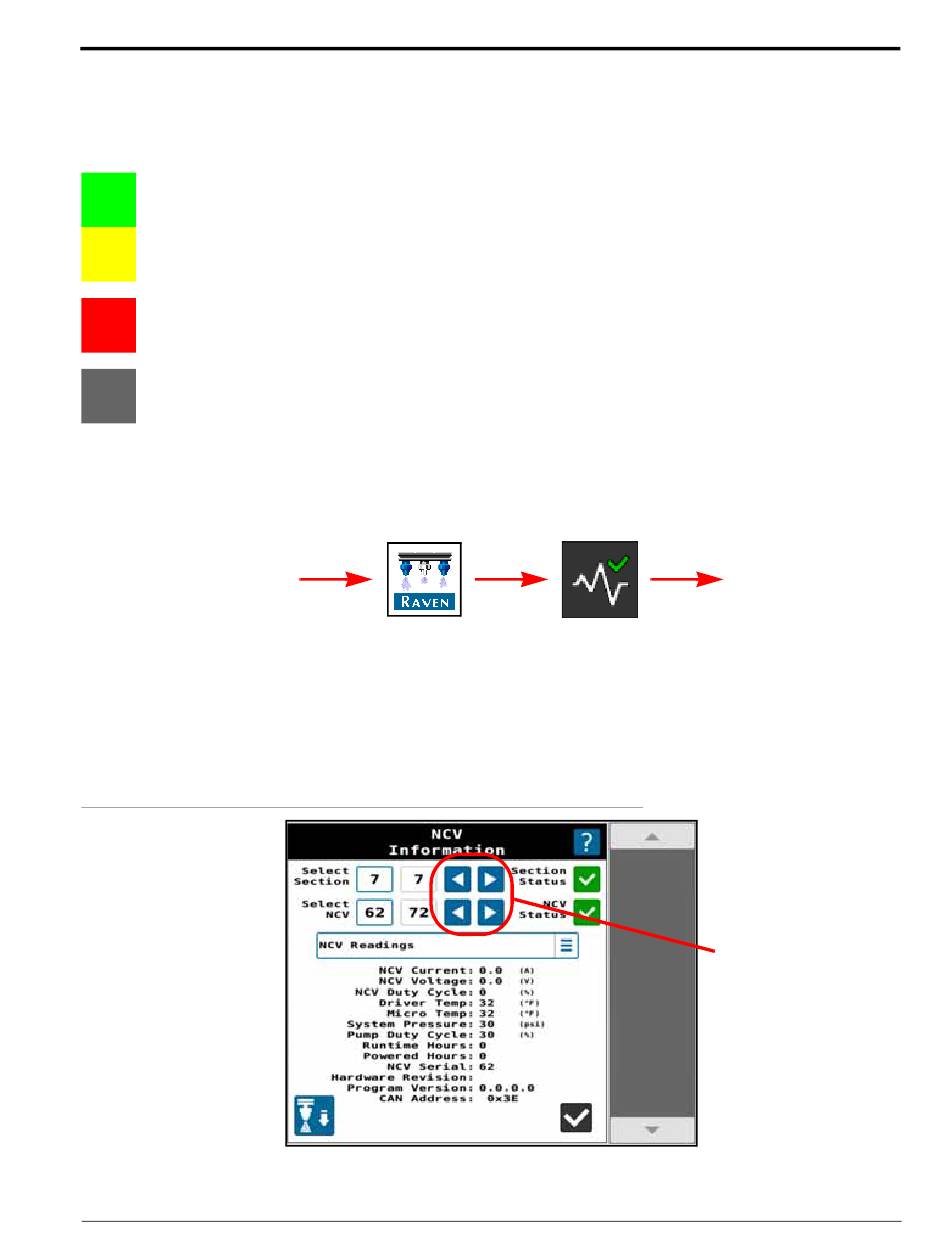

INDIVIDUAL NCV DIAGNOSTICS

To access individual AIM Command FLEX™ II NCV diagnostic information:
UT Menu
1. Open the UT Menu and select the RCM - Sprayer Menu button.
2. Select the Diagnostics softkey.
3. Select the NCV Errors button in the lower, right corner of the page to access the following diagnostic
information for each NCV:
FIGURE 2. NCV Information
NOTE: Use the section and NCV left and right arrow buttons at the top of the NCV Information page to view
different NCVs.
Diagnostics: NCV Diagnostics
RCM - Sprayer Menu
NCV Errors
Diagnostics
Toggle Section/
NCV
DIAGNOSTICS
