CHAPTER 4

DISPLAY SETUP MENU

The machine operator may customize the readouts displayed on each product rate control tab and the pressure
tab shown on the Home page.

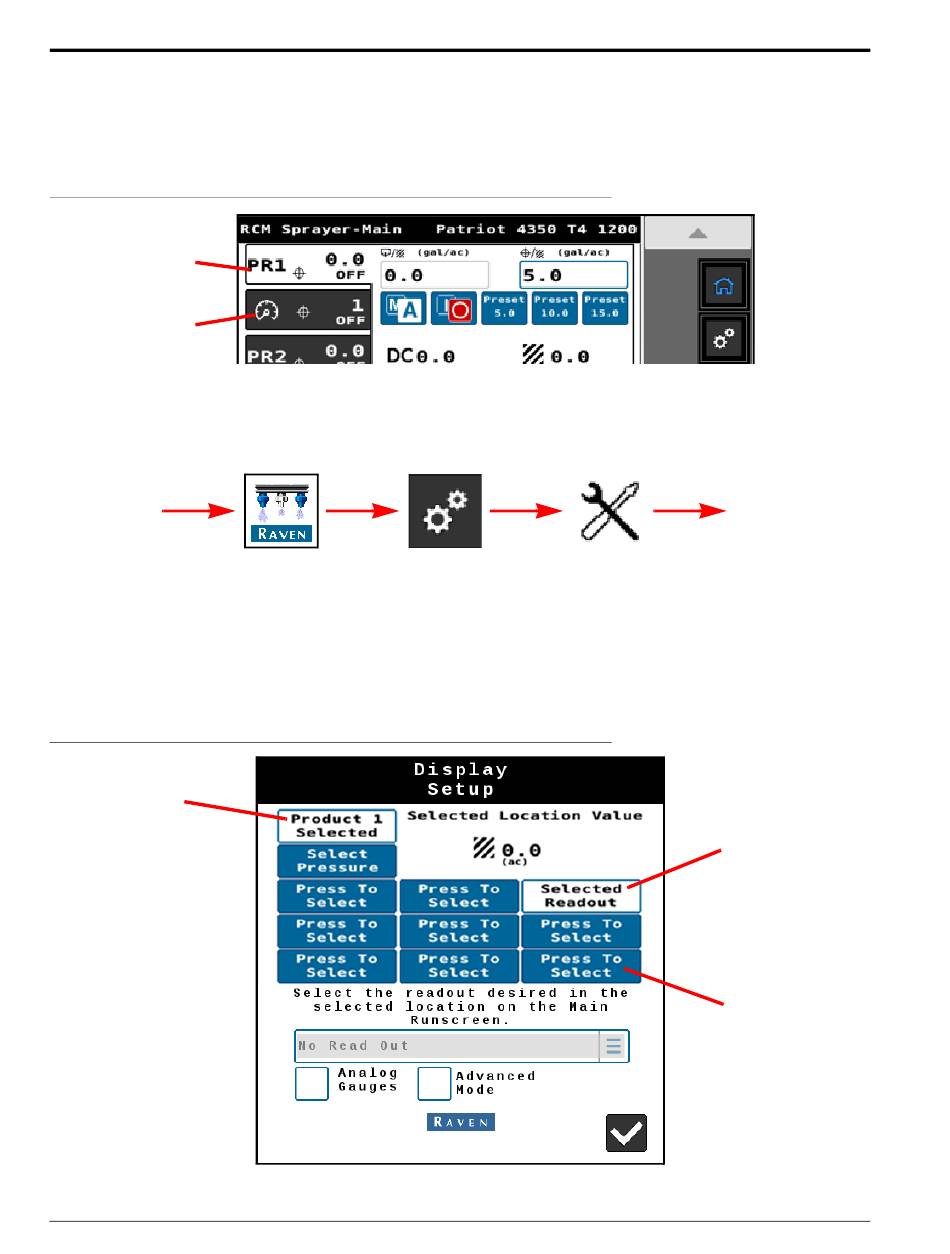

FIGURE 1. Home Page Display Tabs
Product Rate
Control Tab
Pressure Display
Tab
NOTE:
When viewing tabs on the Home page, tapping the selected tab again will display the "Rates Setup"
options for that product.
To customize the information displayed on the Home page of RCM - Sprayer system:
UT Menu
RCM - Sprayer Menu
1. Open the UT Menu and select the RCM - Sprayer Menu button.
2. Select the Tools Menu softkey along the right side of the display.
3. Select the System Settings tab along the top of the display.
4. Select the Display Setup Menu button on the System Settings page. The Display Setup page is displayed.
FIGURE 2. Display Setup Page
Product 1 Tab
Selected
32
Tools Menu
RCM - Sprayer and AIM Command FLEX™ II Calibration and Operation Manual
