Raven Command FLEX II Calibration And Operation Manual page 111

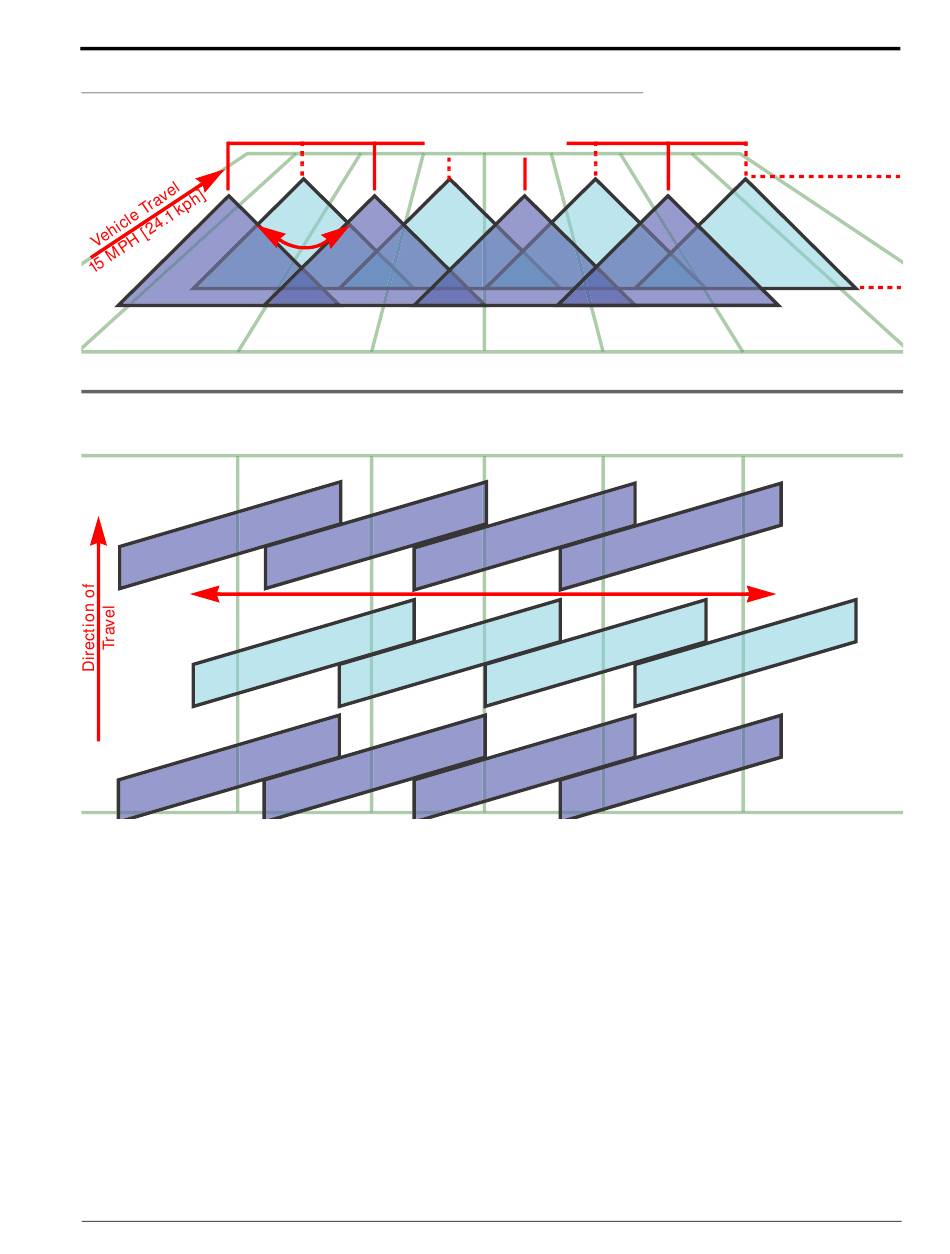

FIGURE 2. Conditions Resulting in Under-Application and Horizontal Banding
FOR EXAMPLE:
Under-application with diagonal banding may be observed if the following modification to the initial example
are made:
•
Using 80° fan spray tips at a height of 21 inches [53.3 cm].
•
Boom pressure is too low resulting in the NCV tip not being able to achieve full spray pattern.
NOTE: Refer to Recommendations for AIM Command FLEX™ II Nozzle Control Operation section on page 99
and recall the recommended spray height for 80° spray tips. Refer to Tip Selection and Application
Speed Guide section on page 102 for boom and spray tip pressure recommendations.
: Overview
Nozzle Spacing
20 inch [50.8 cm]
110°
Alternating Nozzle Spray Pattern
Alternating Spray Tip Pattern
Coverage View from Above
Spray Tip
Height
21 inch
[53.3 cm]
Horizontal
Banding
101
