TROUBLESHOOTING FLOW METER CABLES

Disconnect the extension cable from the flow meter. Hold the extension cable so that the keyway is facing toward
the 12 o'clock position.

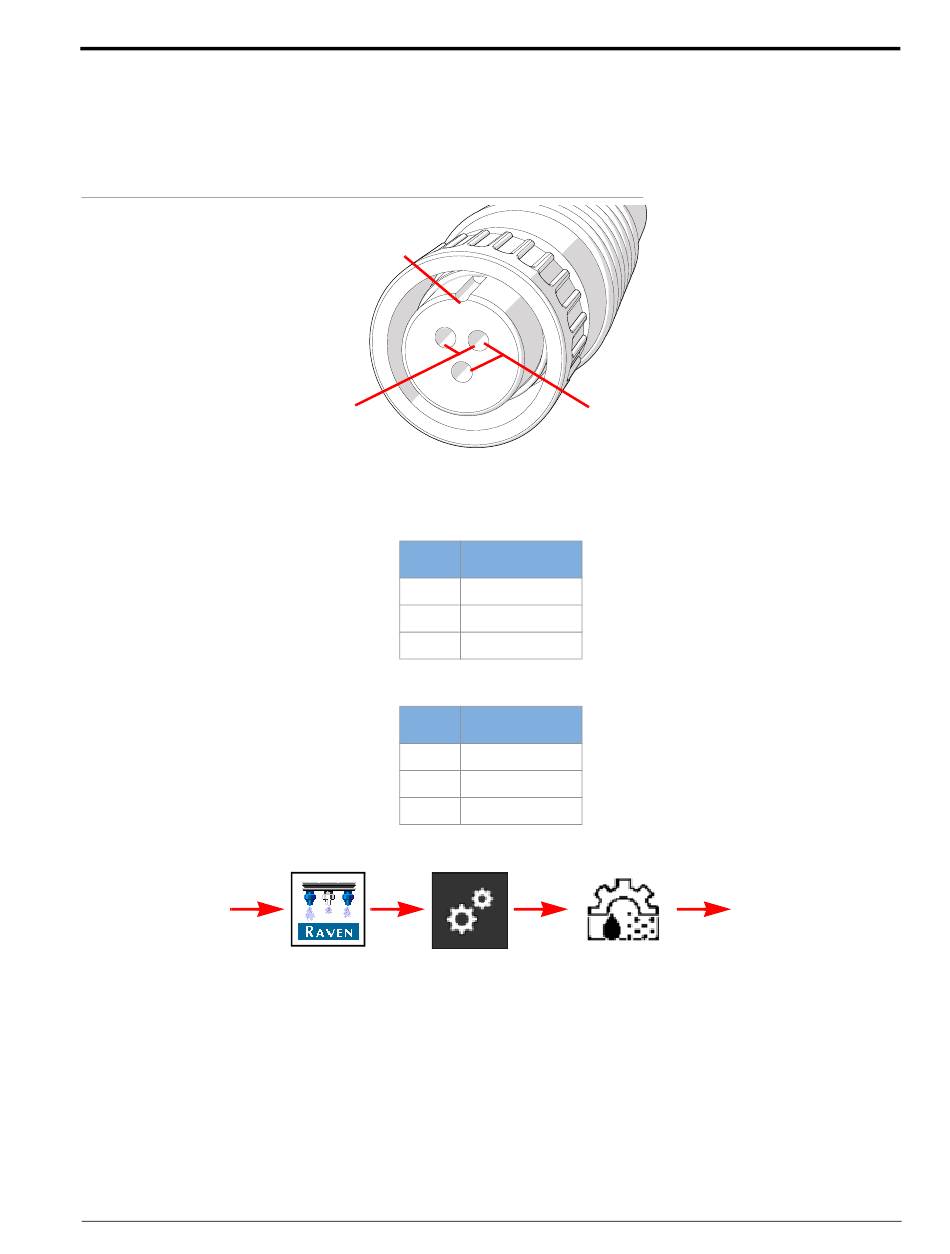

FIGURE 8. Flow Meter Extension Cable Pin Diagram (Con-X-All)
Flow Meter with Deutsch DT Connector
TABLE 7.
Flow Meter with Deutsch DTM Connector
TABLE 8.
TEST THE FLOW METER CABLE
UT Menu
RCM - Sprayer Menu
To test the flow meter cable:
1. Open the UT Menu and select the RCM - Sprayer Menu button.
2. From the home screen, change the product Rate Control Mode to Manual.
NOTE: Ensure the control valve output is zero.
3. Access the Tools Menu and select the Rate Setup and set the Flow Meter Calibration value to 1.
4. Change the Flow Meter Pulse/Units to 1 (not 10 pulses per unit).
Troubleshooting: Cable Troubleshooting
Keyway
10 o'clock
Power
5 VDC
6 o'clock
Signal
Pin
A Power
B Ground
C Signal
Pin
1 Signal
2 Ground
3 Power
Tools Menu
2 o'clock
Ground
5 VDC
Function
Function
Rate Setup
TROUBLESHOOTING
Rate Sensor
Setup
