Chapter 2: Jumpers and Connectors

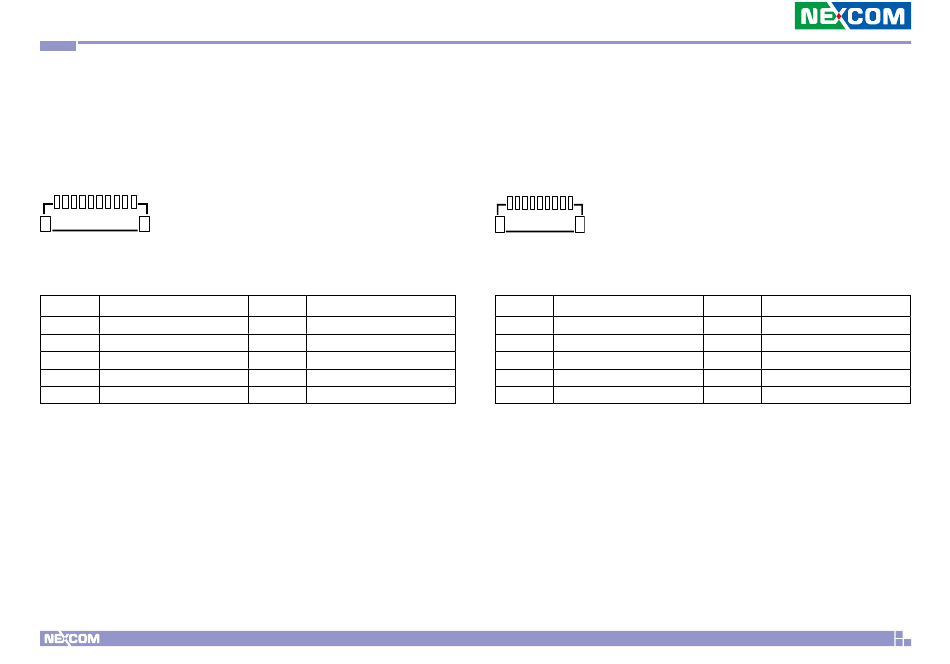

Debug Port/LPC Bus Connector

Connector type: 1x10 10-pin header, 1.0mm pitch
Connector location: NXM_DEBUG
10 1
Pin Definition
1 +3V
3 LAD0
5 LAD2
7 LFRAME#
9 PLTRST#
Copyright © 2021 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 SERIRQ
4 LAD1
6 LAD3
8 25MHZ
10 GND

COM Port Connector

Connector type: 1x9 9-pin header, 1.0mm pitch
Connector location: COM2
9 1
Pin Definition
1 DCD
3 TXD
5 GND
7 RTS
9 RI
16
Pin Definition
2 RXD
4 DTR
6 DSR
8 CTS
Neu-X101 User Manual
