Chapter 2: Jumpers and Connectors

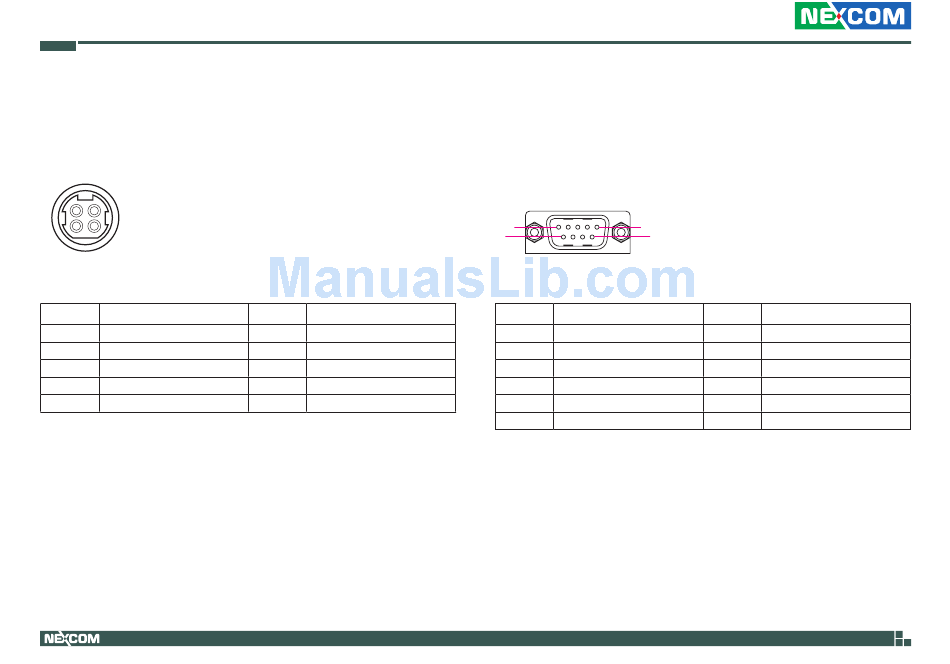

External I/O Interfaces - Rear Panel

12V DC Power Input

Connector location: CN5
1 2
3 4
Pin Definition
1 VIN_1
3 VIN_VSS
5 R_GND
MH1 N/A
MH3 N/A
Copyright © 2015 NEXCOM International Co., Ltd. All Rights Reserved.
Pin Definition
2 VIN_1
4 VIN_VSS
MH2 N/A
MH4 N/A

COM 1 Port (RS232)

Connector type: DB-9 port, 9-pin D-Sub
Connector location: CN3
1 5
6
Pin Definition
1 N/A
3 SP1_TXD_R
5 N/A
7 N/A
9 N/A
MH1 CHASIS_GNDR
17
9
Pin Definition
2 SP1_RXD_R
4 N/A
6 N/A
8 N/A
MH2 CHASIS_GNDR
