Oracle ZFS Installation Manual page 90

Installing a DE3-24P Disk Shelf

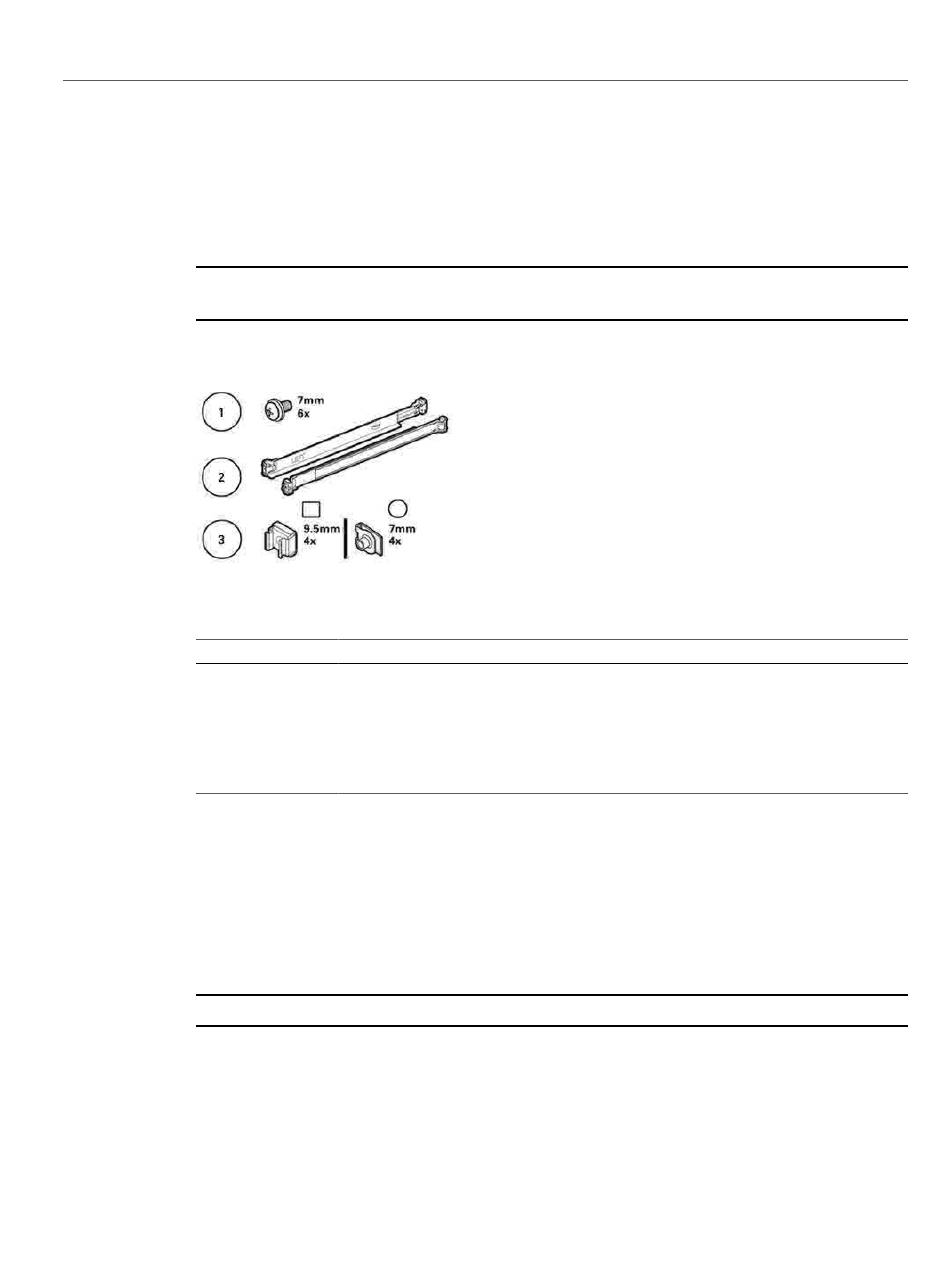

2. Unpack the contents of the disk shelf rail kit box, and identify the correct cage
nuts for your rack type.
There are two cage nut packets, each containing square or round hole cage nuts. Although a
template is also included in the packets, it is not used for the DE3-24P disk shelf.
Note -
for a round hole rack. Also, screws are not provided for M6-sized threaded rack holes.
Callout
1
2
3
Attach the disk shelf rails to the rack, as follows:
3.
a. Orient the rail so that the stamped label (LEFT or RIGHT) is facing the inside
of the rack.
b. Adjust the rail length to fit the front and rear of the rack [A and B].
Note -
90 Oracle ZFS Storage Appliance Installation Guide, Release OS8.8.x • August 2021
This procedure shows rail kit installation for a square hole rack. The same steps apply
Description
Six 10-32 7 mm screws (two spares)
Two adjustable shelf rails
Two packets of four 10-32 cage nuts (only one set is required):
■ Four 9.5 mm square cage nuts (two spares)
■ Four 7 mm round cage nuts (two spares)
Mark which rack rail holes you will be using to ensure the shelf rails are installed evenly.
