Overview of ZS9-2 Controller
ZS9-2 Rear Panel Components

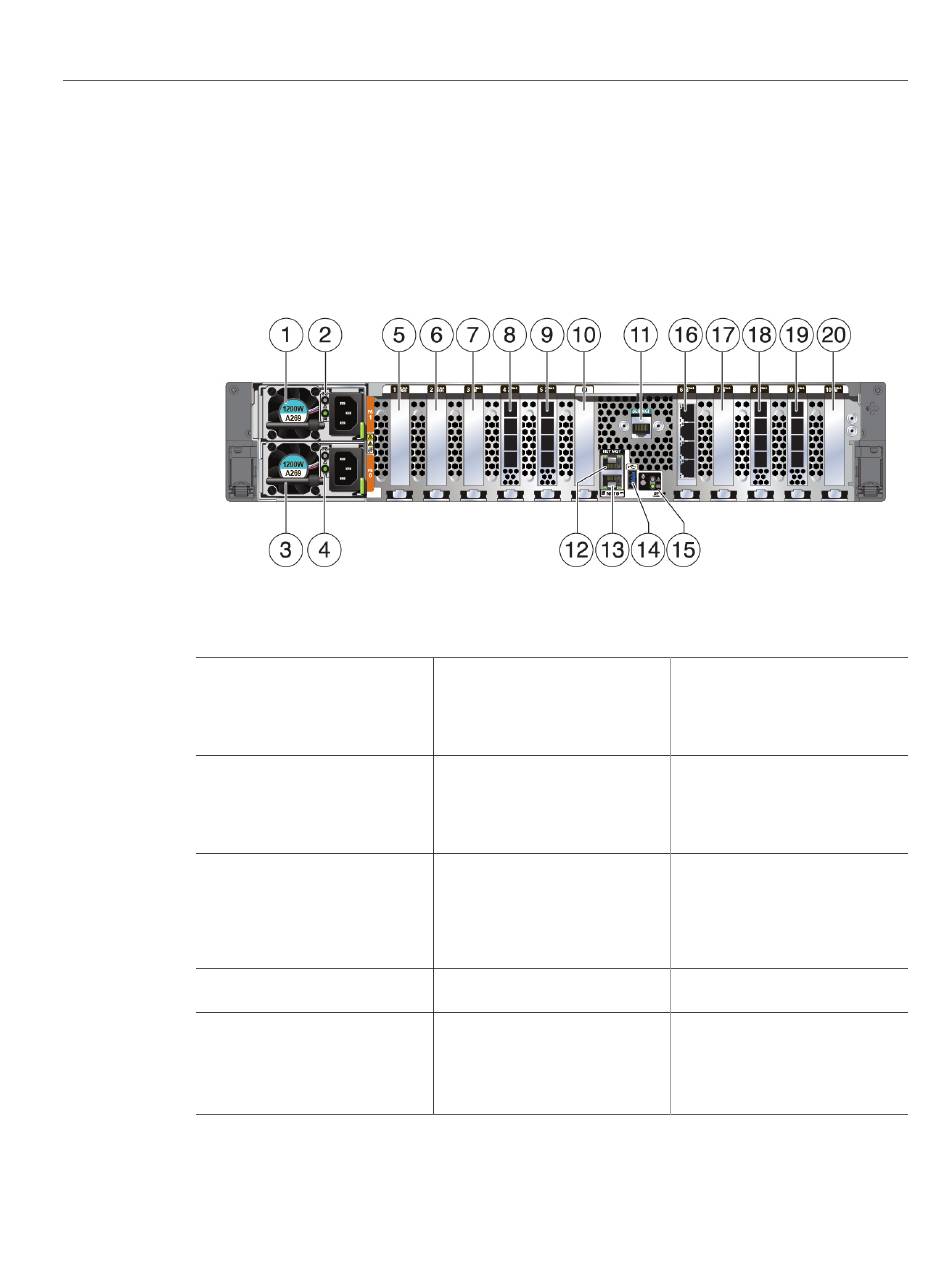

The ZS9-2 controller PCIe slots and rear panel components are shown in the following figure.
FIGURE 23
1 Power Supply Unit (PSU) 1
4 PSU 0 status indicators (top to
bottom):
■ Attention (amber)
■ Power/OK (green)
7 Fifth PCIe option (slot 3)
10 Not available
13 Network (NET) 100/1000BASE-
T RJ-45 Gigabit Ethernet (GbE) port:
NET 0
48
Oracle ZFS Storage Appliance Installation Guide, Release OS8.8.x • August 2021
ZS9-2 Rear Panel
2 PSU 1 status indicators (top to
bottom):
■ Attention (amber)
■ Power/OK (green)
5 Second PCIe option (slot 1)
8 External SAS-3 HBA (slot 4)
11 Serial management (SER MGT)
RJ-45 serial port
14 USB 3.0 port
3 PSU 0
6 Third PCIe option (slot 2)
9 Slot 5:
■ High-end model: External SAS-3
HBA
■ Mid-range model: Filler panel;
slot not available
12 Service Processor (SP) NET
MGT port
15 System status LEDs:
■ Locate (white) - left
■ Attention (amber) - right, top
■ Power/OK (green) - right, bottom
