3
BASIC OPERATION
Selecting a channel (Continued)

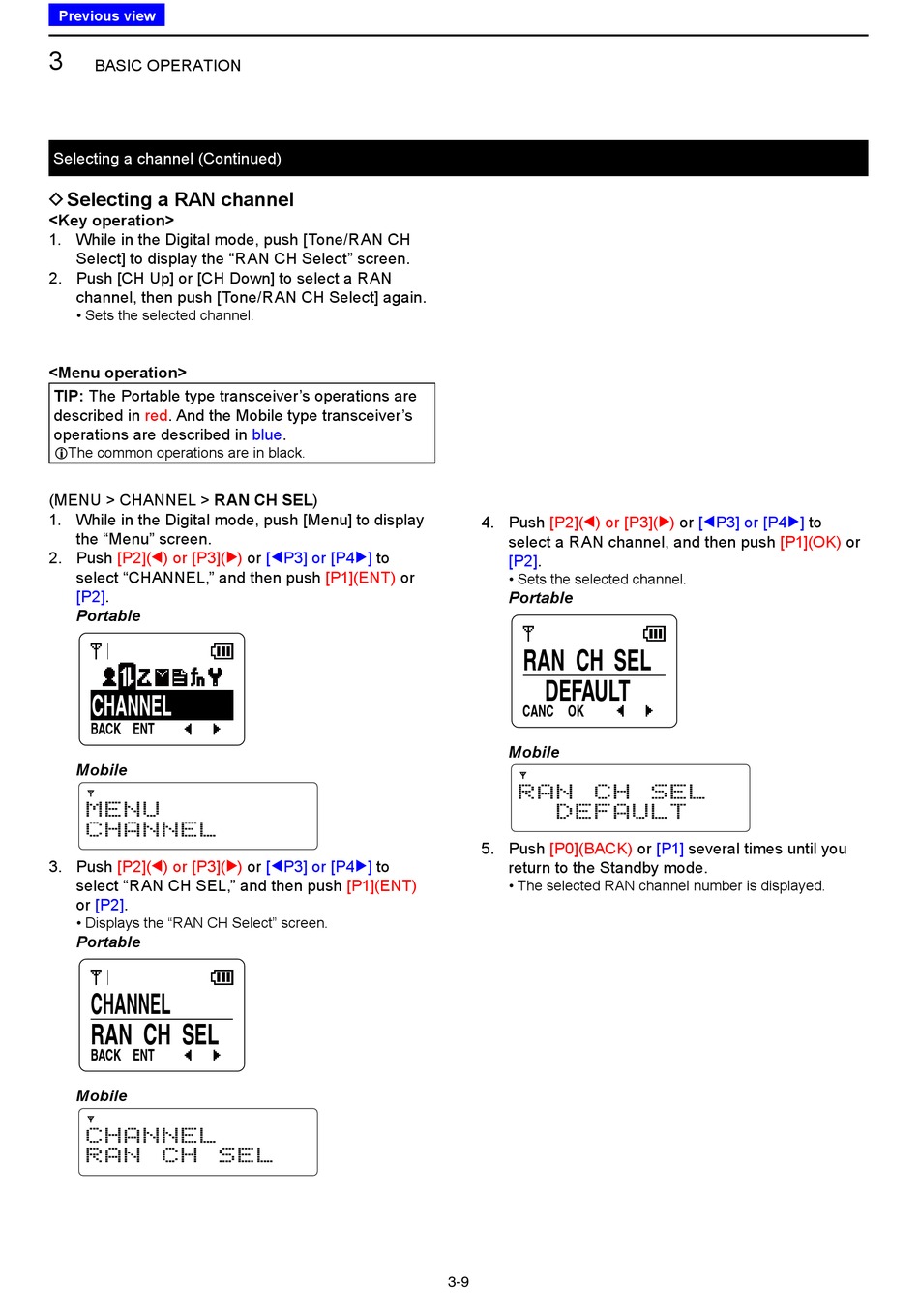

D Selecting a RAN channel

<Key operation>
1. While in the Digital mode, push [Tone/RAN CH
Select] to display the "RAN CH Select" screen.
2. Push [CH Up] or [CH Down] to select a RAN
channel, then push [Tone/RAN CH Select] again.
• Sets the selected channel.
<Menu operation>
TIP: The Portable type transceiver's operations are
described in red. And the Mobile type transceiver's
operations are described in blue.
LThe common operations are in black.
(MENU > CHANNEL > RAN CH SEL)
1. While in the Digital mode, push [Menu] to display
the "Menu" screen.
2. Push [P2](Ω) or [P3](≈)
select "CHANNEL," and then push
[P2].
Portable
CHANNEL
BACK ENT
Mobile
M E N U
C H A N N E L
3. Push [P2](Ω) or [P3](≈)
select "RAN CH SEL," and then push
or [P2].
• Displays the "RAN CH Select" screen.
Portable
CHANNEL
RAN CH SEL
BACK ENT
Mobile
C H A N N E L
R A N C H S E L
or [ΩP3] or [P4≈] to
[P1](ENT) or
or [ΩP3] or [P4≈] to
[P1](ENT)
4. Push [P2](Ω) or [P3](≈)
select a RAN channel, and then push
[P2].
• Sets the selected channel.
Portable
RAN CH SEL
DEFAULT
CANC OK
Mobile
R A N C H
D E F A U L T
5. Push [P0](BACK)
return to the Standby mode.
• The selected RAN channel number is displayed.
3-9
or [ΩP3] or [P4≈] to
[P1](OK)
S E L
or [P1] several times until you
or
