3
BASIC OPERATION
Selecting a channel (Continued)

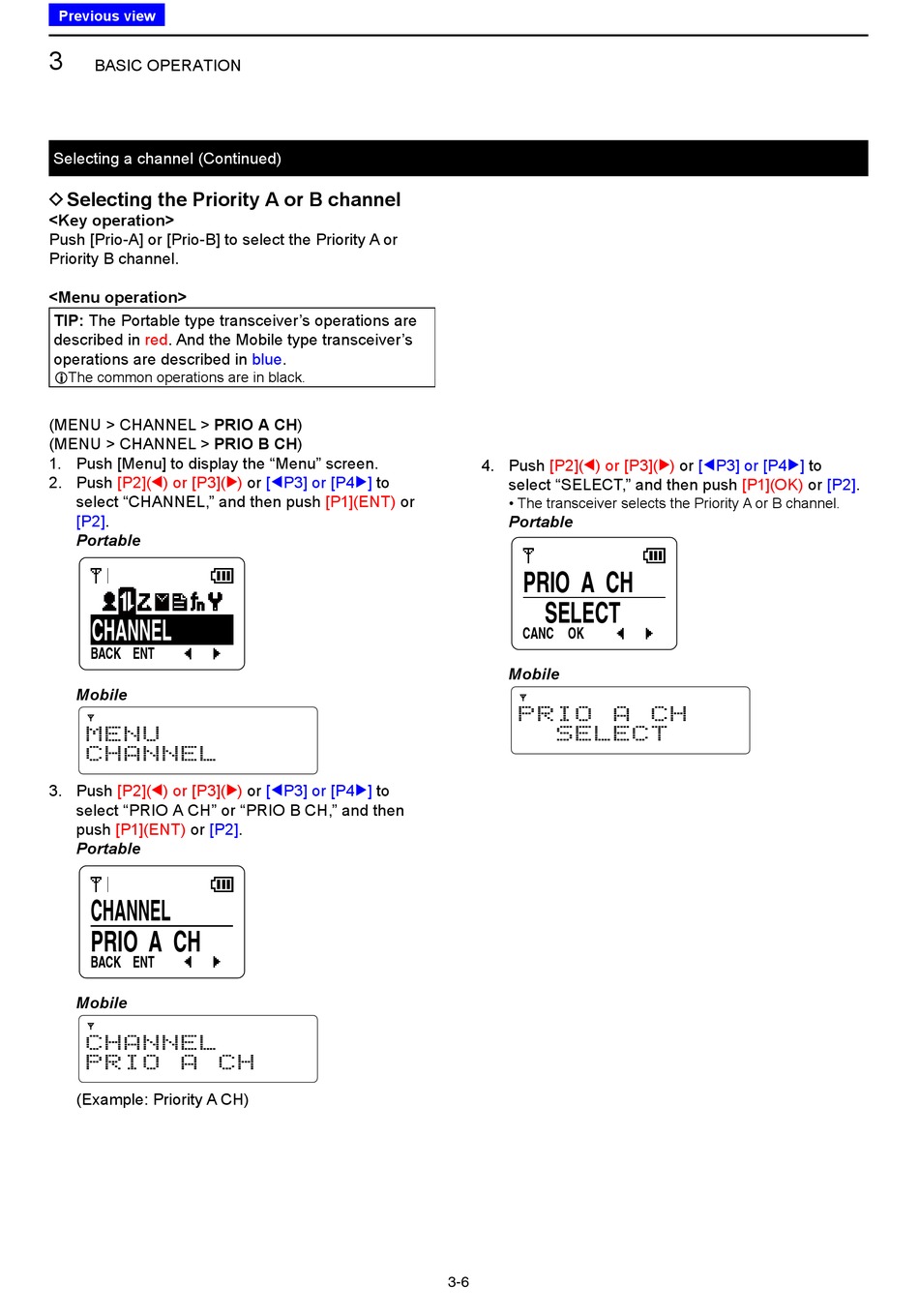

D Selecting the Priority A or B channel

<Key operation>
Push [Prio-A] or [Prio-B] to select the Priority A or
Priority B channel.
<Menu operation>
TIP: The Portable type transceiver's operations are
described in red. And the Mobile type transceiver's
operations are described in blue.
LThe common operations are in black.
(MENU > CHANNEL > PRIO A CH)
(MENU > CHANNEL > PRIO B CH)
1. Push [Menu] to display the "Menu" screen.
2. Push [P2](Ω) or [P3](≈)
select "CHANNEL," and then push
[P2].
Portable
CHANNEL
BACK ENT
Mobile
M E N U
C H A N N E L
3. Push [P2](Ω) or [P3](≈)
select "PRIO A CH" or "PRIO B CH," and then
push [P1](ENT) or [P2].
Portable
CHANNEL
PRIO A CH
BACK ENT
Mobile
C H A N N E L
P R I O A C H
(Example: Priority A CH)
or [ΩP3] or [P4≈] to
[P1](ENT) or
or [ΩP3] or [P4≈] to
4. Push [P2](Ω) or [P3](≈)
select "SELECT," and then push
• The transceiver selects the Priority A or B channel.
Portable
PRIO A CH
SELECT
CANC OK
Mobile
P R I O A
S E L E C T
3-6
or [ΩP3] or [P4≈] to
[P1](OK) or [P2].
C H
