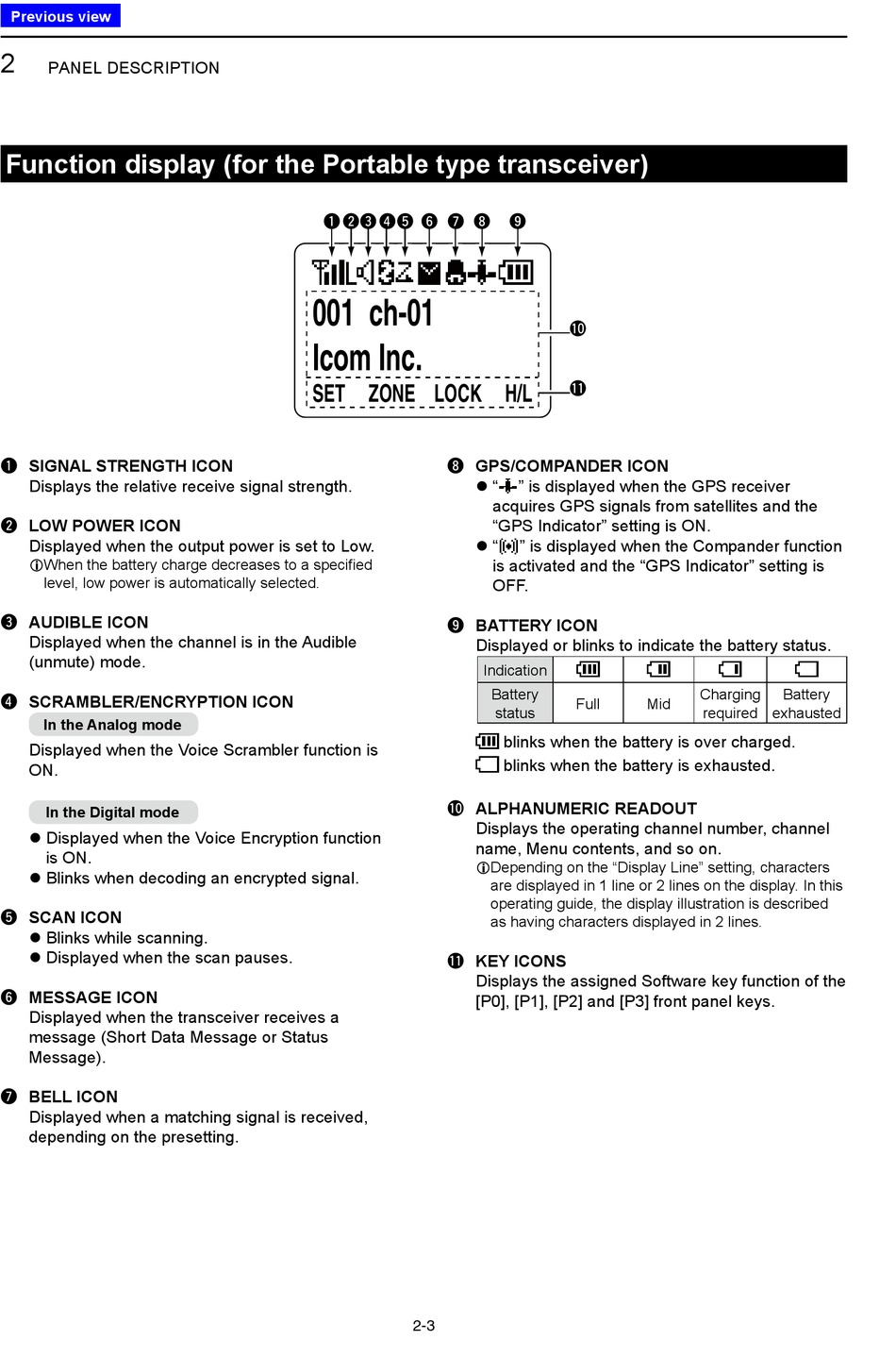

PANEL DESCRIPTION

Function display (for the Portable type transceiver)

ENT
q SIGNAL STRENGTH ICON
Displays the relative receive signal strength.
w LOW POWER ICON
Displayed when the output power is set to Low.
CONTACT
L W henthebatterychargedecreasestoaspecified
level, low power is automatically selected.
BACK ENT
e AUDIBLE ICON
Displayed when the channel is in the Audible
(unmute) mode.
r SCRAMBLER/ENCRYPTION ICON
In the Analog mode
Displayed when the Voice Scrambler function is
ON.
In the Digital mode
z Displayed when the Voice Encryption function
is ON.
z Blinks when decoding an encrypted signal.
t SCAN ICON
z Blinks while scanning.
z Displayed when the scan pauses.
y MESSAGE ICON
Displayed when the transceiver receives a
message (Short Data Message or Status
Message).
u BELL ICON
Displayed when a matching signal is received,
depending on the presetting.
q we rt y u i
001 ch-01
Icom Inc.
SET ZONE LOCK H/L
i GPS/COMPANDER ICON
z "
PRIVATE
z "
ID 0000002
CALL dPMR MENU CLR
o BATTERY ICON
Displayed or blinks to indicate the battery status.
Indication
Battery
!0 ALPHANUMERIC READOUT
Displays the operating channel number, channel
name, Menu contents, and so on.
L Depending on the "Display Line" setting, characters
are displayed in 1 line or 2 lines on the display. In this
operating guide, the display illustration is described
as having characters displayed in 2 lines.
!1 KEY ICONS
Displays the assigned Software key function of the
[P0], [P1], [P2] and [P3] front panel keys.
2-3
o
!0
!1
" is displayed when the GPS receiver
acquires GPS signals from satellites and the
"GPS Indicator" setting is ON.
" is displayed when the Compander function
is activated and the "GPS Indicator" setting is
OFF. BIIS CALL
Full Mid
status
blinks when the battery is over charged.
blinks when the battery is exhausted.
