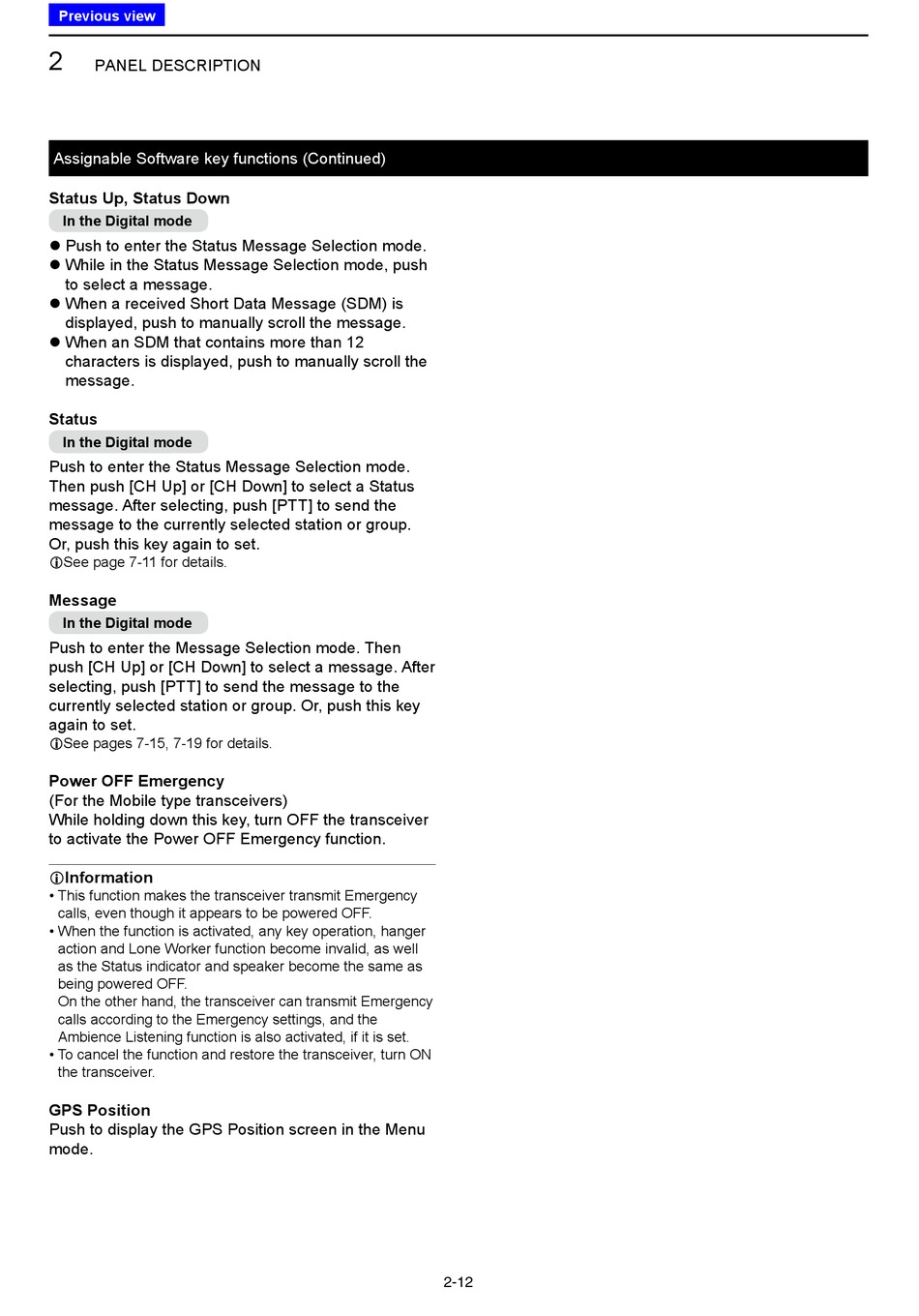

Icom iF4261DT Operating Manual page 19

Previous view
2
PANEL DESCRIPTION
Assignable Software key functions (Continued)
Status Up, Status Down
In the Digital mode
z Push to enter the Status Message Selection mode.
z While in the Status Message Selection mode, push
to select a message.
z When a received Short Data Message (SDM) is
displayed, push to manually scroll the message.
z When an SDM that contains more than 12
characters is displayed, push to manually scroll the
message.
Status
In the Digital mode
Push to enter the Status Message Selection mode.
Then push [CH Up] or [CH Down] to select a Status
message. After selecting, push [PTT] to send the
message to the currently selected station or group.
Or, push this key again to set.
L See page 7-11 for details.
Message
In the Digital mode
Push to enter the Message Selection mode. Then
push [CH Up] or [CH Down] to select a message. After
selecting, push [PTT] to send the message to the
currently selected station or group. Or, push this key
again to set.
L See pages 7-15, 7-19 for details.
Power OFF Emergency
(For the Mobile type transceivers)
While holding down this key, turn OFF the transceiver
to activate the Power OFF Emergency function.
Information
L
• This function makes the transceiver transmit Emergency
calls, even though it appears to be powered OFF.
• When the function is activated, any key operation, hanger
action and Lone Worker function become invalid, as well
as the Status indicator and speaker become the same as
being powered OFF.
On the other hand, the transceiver can transmit Emergency
calls according to the Emergency settings, and the
Ambience Listening function is also activated, if it is set.
• To cancel the function and restore the transceiver, turn ON
the transceiver.
GPS Position
Push to display the GPS Position screen in the Menu
mode.
2-12
