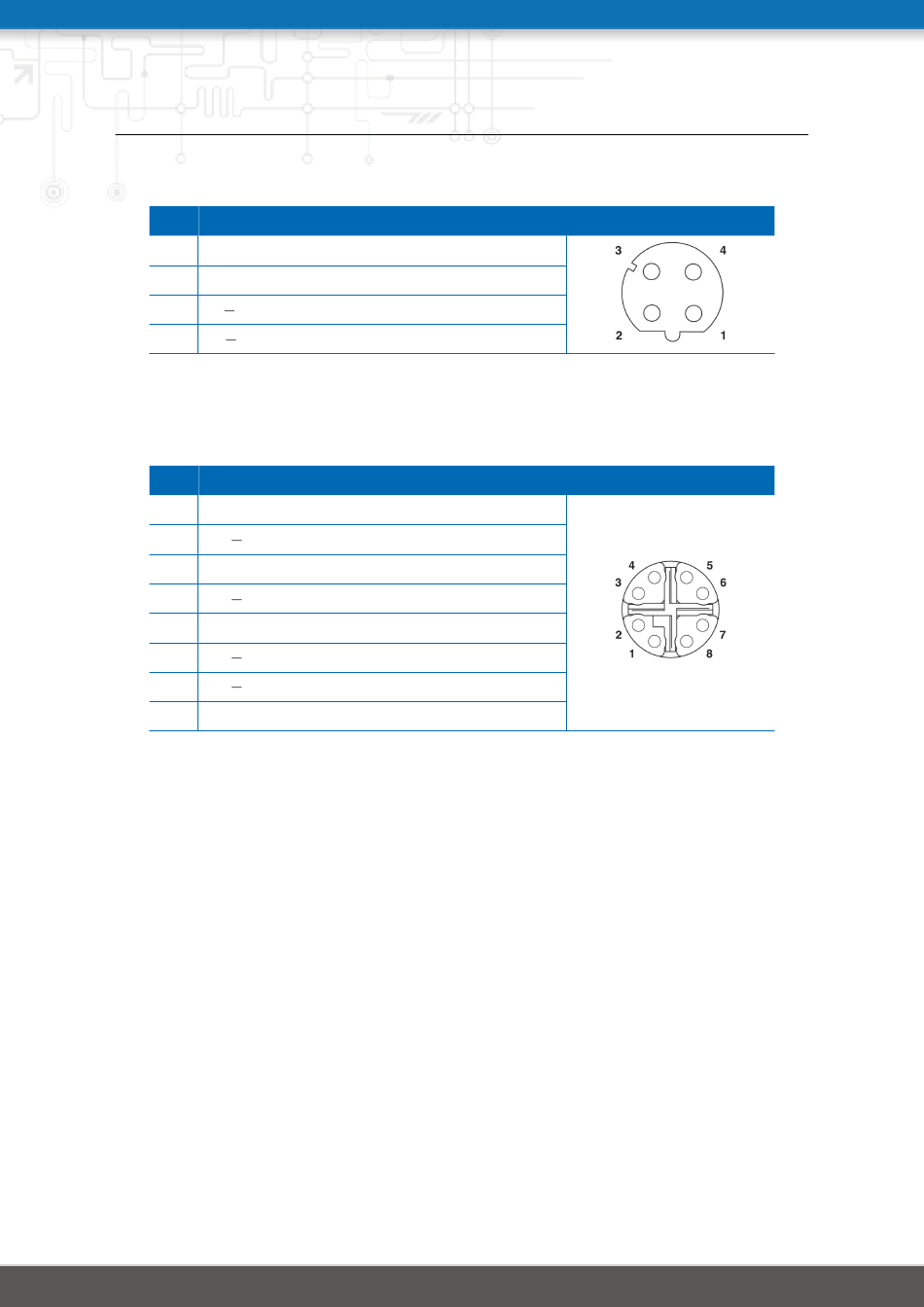

Pin Assignment on M12, 4 poles, D-coded female
Pin Signal
1 Tx+
2 Rx+
3 Tx
4 Rx
Table 3.14.: Pin Assignments of 4 Poles Ethernet Connectors
Pin Assignment on M12, 8 poles, X-coded female
Pin Signal
1 M1+
2 M1
3 M0+
4 M0
5 M2+
6 M2
7 M3
8 M3+
Table 3.15.: Pin Assignments of 8 Poles Ethernet Connectors
