3.4.2. LED Indicators

Status LEDs

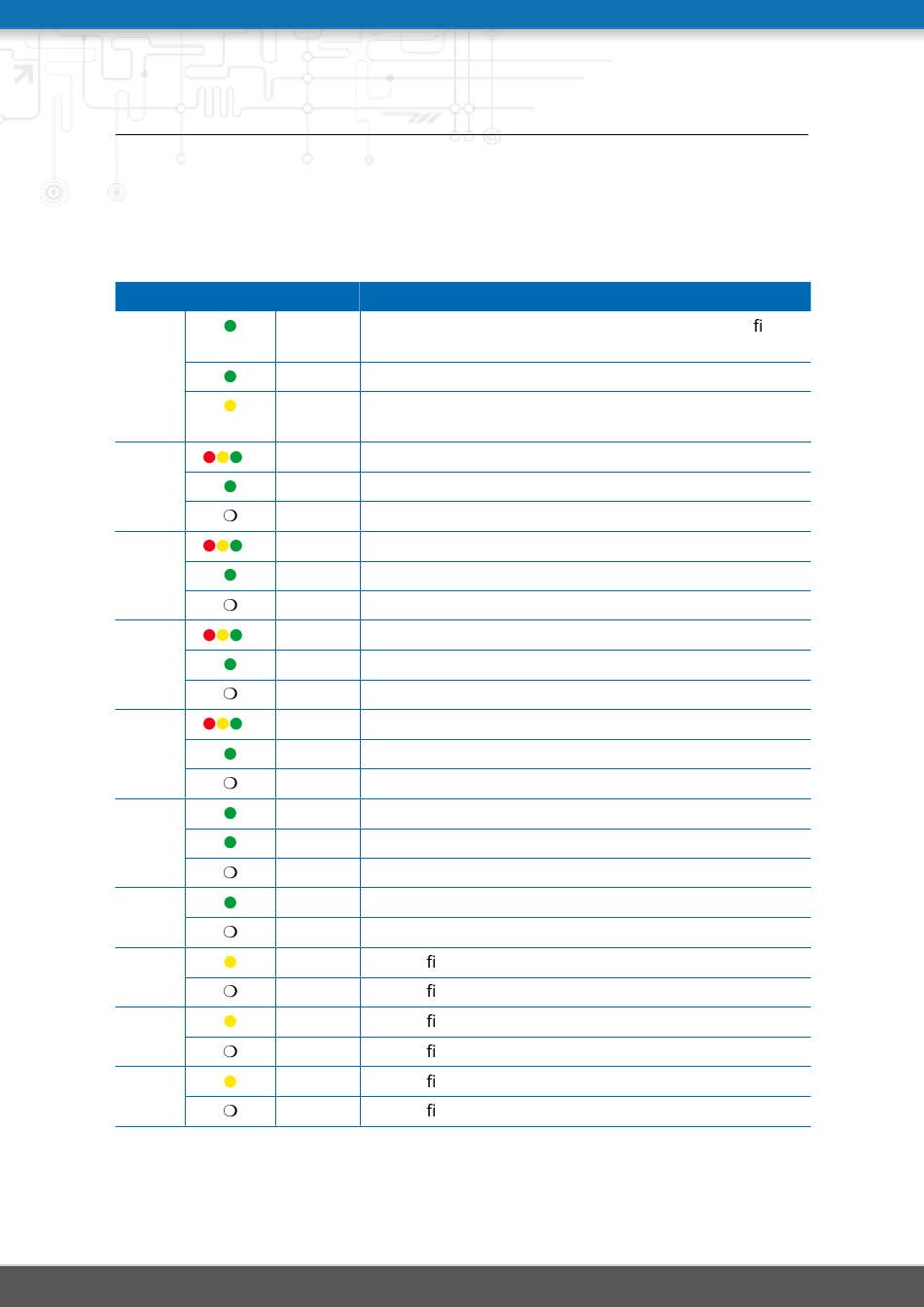

The following table describes the NB3000-Line-Hd status indicators.
Label Color
STAT blinking
[1]
MOB1
blinking
[1]
MOB2
blinking
[1]
WLAN1
blinking
[1]
WLAN2
blinking
GNSS
blinking
Voice
USR1
USR2
USR3
NB3000-Line-Hd User Manual 4.2
State Function
The device is busy due to startup, software or con gura-
tion update.
on The device is ready. The captions of the top bank apply.
on The device is ready. The captions of the bottom bank ap-
ply.
on Mobile connection 1 is up.
Mobile connection 1 is being established.
off Mobile connection 1 is down.
on Mobile connection 2 is up.
Mobile connection 2 is being established.
off Mobile connection 2 is down.
on WLAN connection 1 is up.
WLAN connection 1 is being established.
off WLAN connection 1 is down.
on WLAN connection 2 is up.
WLAN connection 2 is being established.
off WLAN connection 2 is down.
on GNSS is turned on and a valid NMEA stream is available.
GNSS is searching for satellites.
off GNSS is turned off or no valid NMEA stream is available.
on A voice call is currently active.
off No voice call is active.
on User de ned.
off User de ned.
on User de ned.
off User de ned.
on User de ned.
off User de ned.
