Extension Axis Belt

To Check the Extension Axis Belt Tension

Umbilical
cable
Clamps

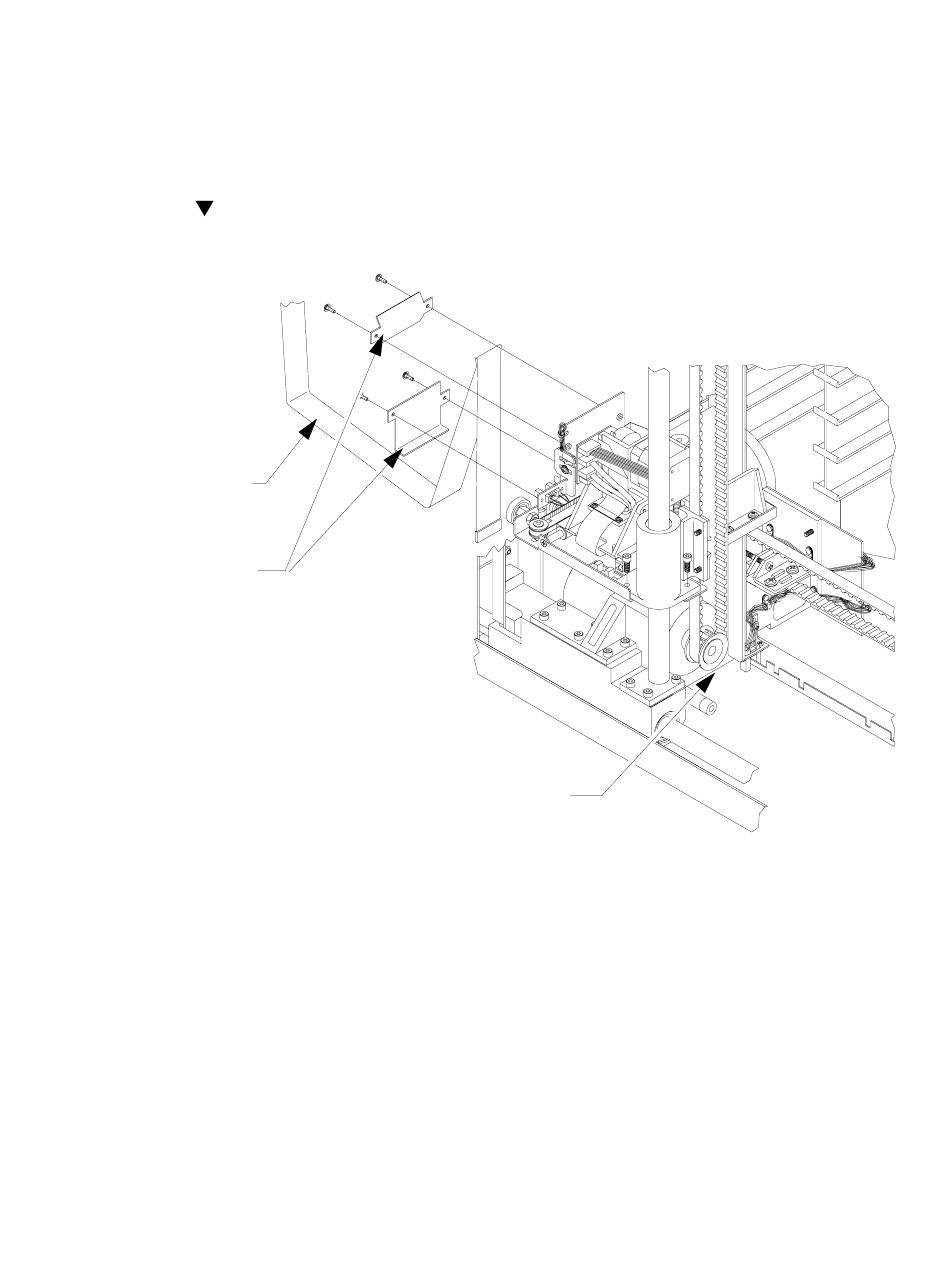

Removing the Umbilical Cable and Clamps
FIGURE 2-12
See .
FIGURE 2-12
1. Remove the ESD cover.
2. Remove the clamp that loops the umbilical cable and the clamp that retains the
umbilical to the extension axis.
3. Move the gripper assembly all the way forward on the extension axis.
Extension axis
Chapter 2
TA00081a
Preventive Maintenance 41
