Extension Axis Assembly
The extension axis assembly (EAA) is located on the left side of the library. The EAA
consists of the extension axis assembly and the gripper assembly mounted on the
extension platform.
shows the simplified block diagram. The individual components are discussed in the
paragraphs that follow.
FIGURE 1-6
10
Sun Enterprise Tape Library 7/3500 Field Service Manual • July 1997
shows the location of the components and
FIGURE 1-6

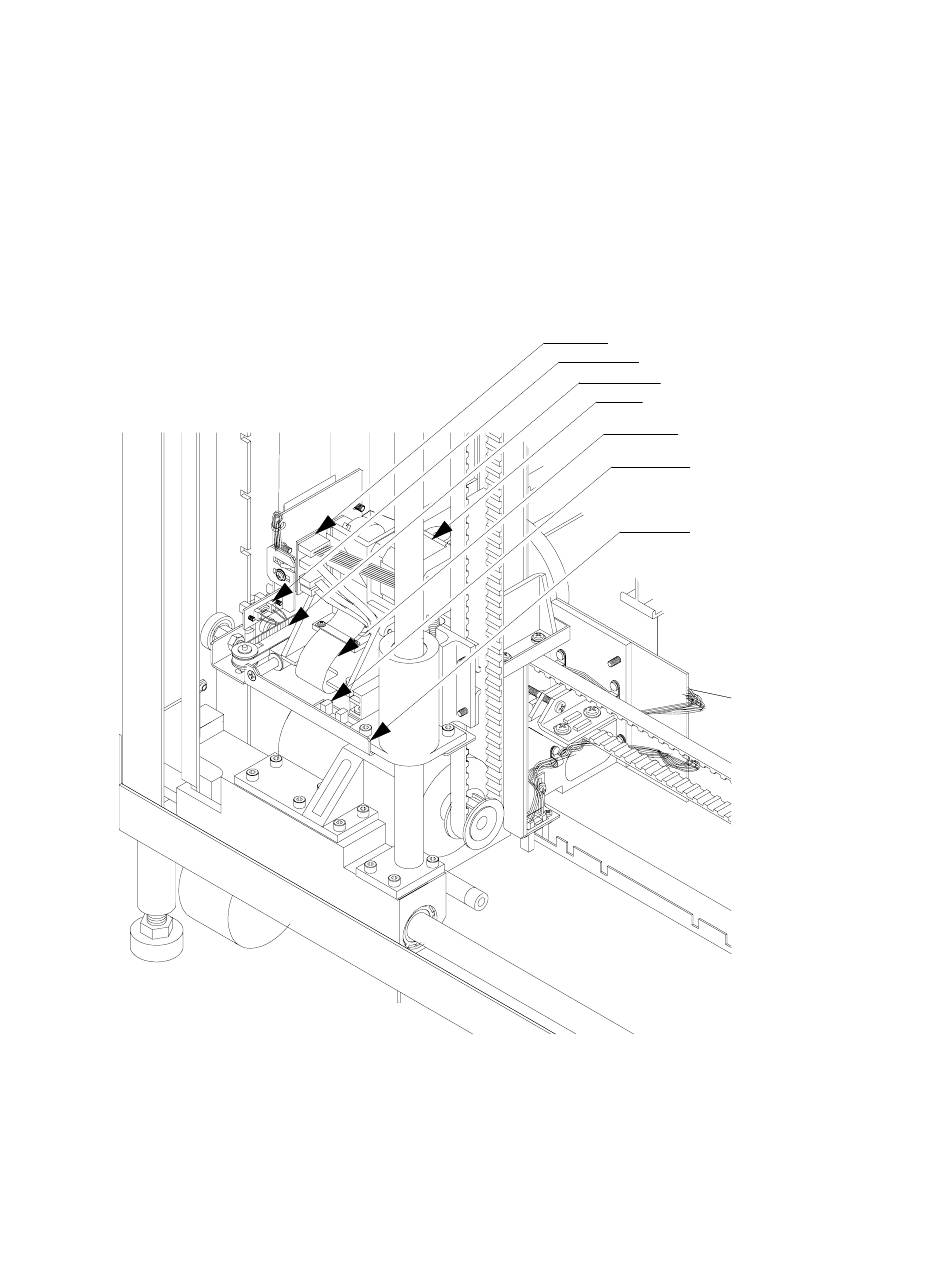

Extension Axis Assembly
FIGURE 1-7
Gripper interconnect PWA
Y-axis confirmation sensor
Extension axis drive belt
Gripper motor
Gripper umbilical
Extension home sensor
Extension platform
TA00050b
